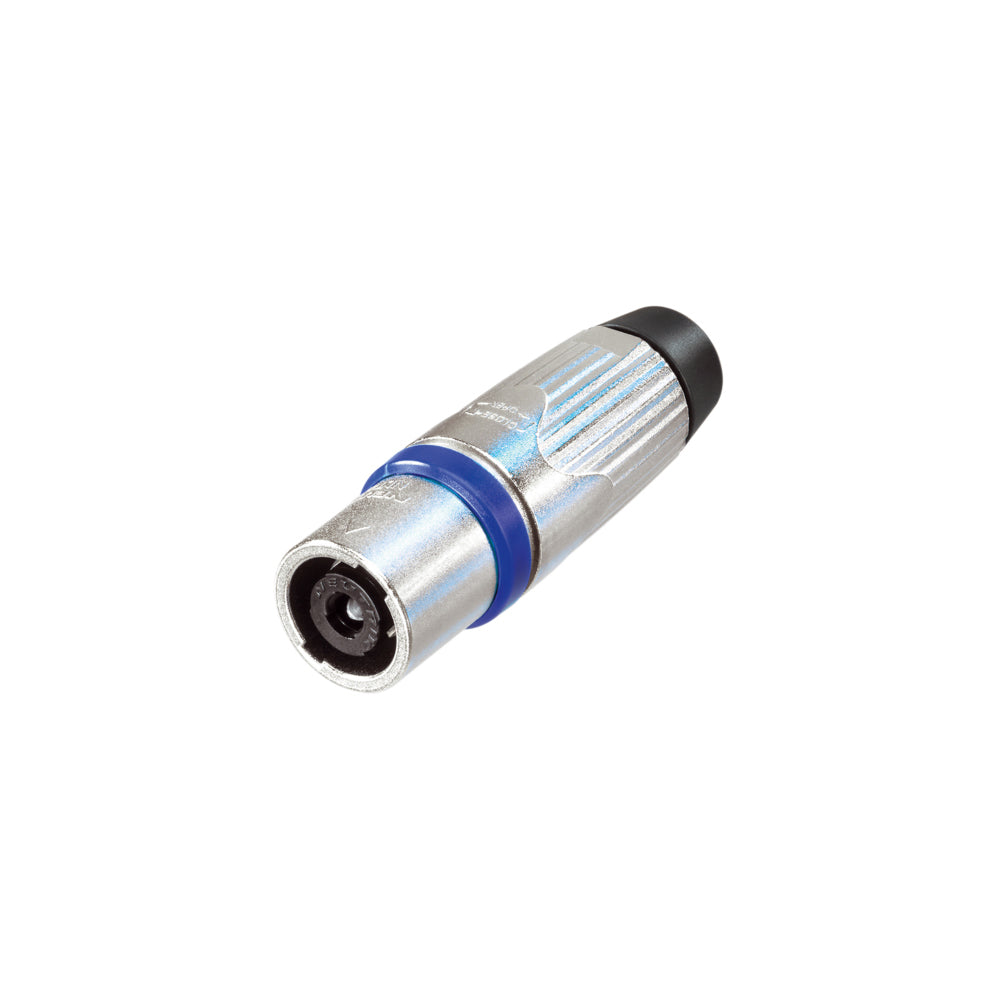

Neutrik 4-Pole speakON Connector (Male)
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This connector is designed for heavy duty amplifier-loud speaker applications such as professional touring.
| Physical Characteristics | |
|---|---|
| Color | Blue |
| Housing | Metal |
| Connector Type | speakON |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | 4 µm Ag |
| Contacts | Spring copper |
| Insert | Polyamide |
| Locking Element | Zinc Diecast |
| Shell | Zinc Diecast |
| Strain Relief | Polyacetal (POM) |
| Gender | Male |
| Electrical Characteristics | |
| Contact Resistance | > 2 mΩ (after lifetime) |
| Dielectric Strength | 4 kVdc (peak) |
| Insulation Resistance | > 10 GΩ |
| Rated Current Per Contact | 40 A rms continuous 50 A audio signal, duty cycle 50% |
| Rated Voltage | 250 V ac |
| Mechanical Characteristics | |
| Cable O.D. | 9 - 16 mm |
| Cable Retention | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime | > 5000 mating cycles |
| Wire size | 6 mm² 10 AWG |
| Wiring | Solder contacts |
| Locking Device | Quick Lock (Latch) |
| Environmental | |
| Flammability | UL 94 HB |
| Protection Class | IP 54 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
