Premium Phantom Cables Subwoofer RCA Male to Male Cable FT4
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

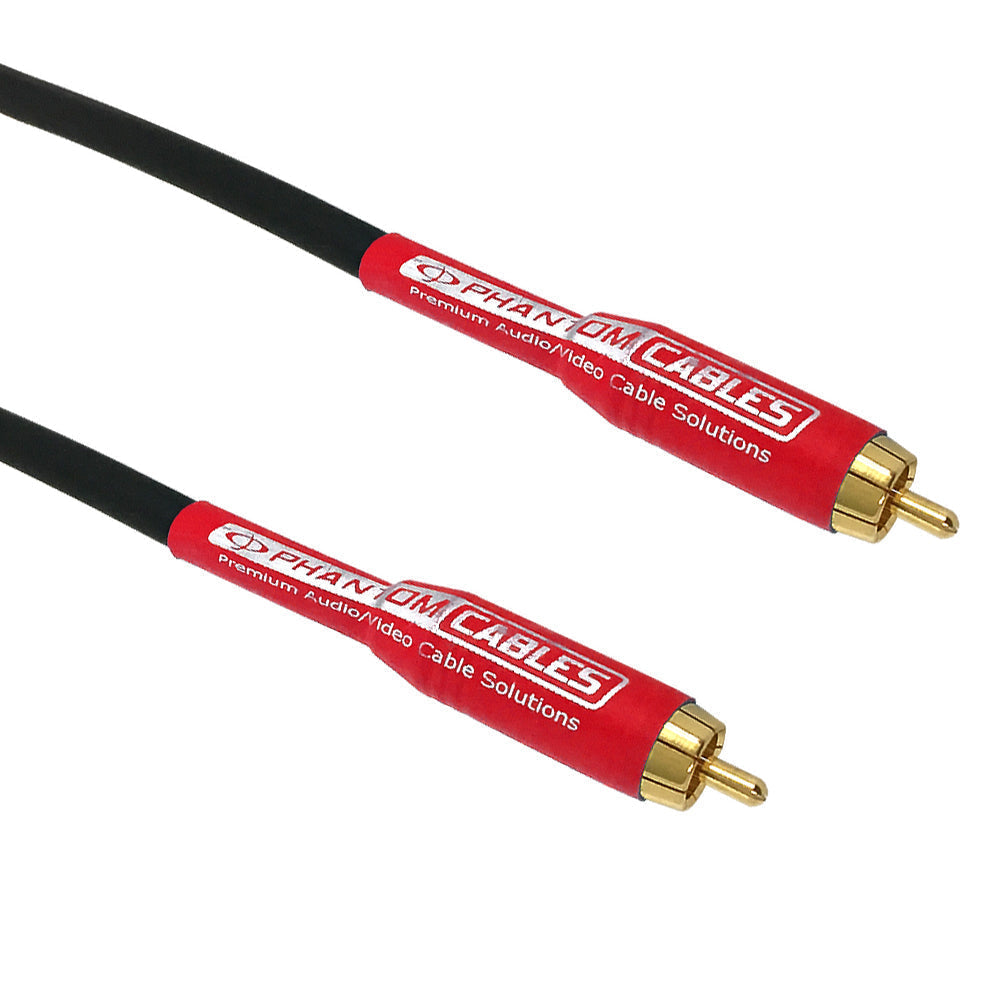

This premium double shielded audio cable has a RCA male on one end and a RCA male on the other. It is typically used to connect to a subwoofer to a receiver.
- Constructed of double shielded, true 75 ohm coax cable for ultra crisp sounding audio
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Type | RG59 |
| Cable Diameter | 6.15mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | Dual Shielding 100% aluminum/mylar foil, plus a 95% tinned copper braid |
Connectors | |
| Connector A | RCA Male |
| Connector B | RCA Male |
| Connector A Diameter | 12.7 mm |
| Connector B Diameter | 12.7 mm |
Approvals | |
| cUL | Compliant - Cable |
Environmental | |
| RoHS | Compliant |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
