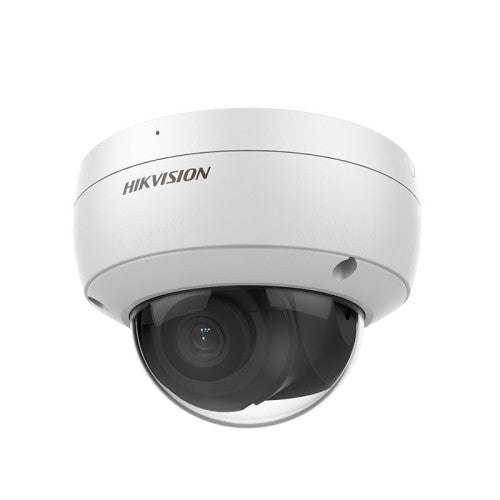

Hikvision PCI-D18F2S 8 MP AcuSense 2.8mm Fixed Dome Network Camera

-High quality imaging with 8 MP resolution

-Excellent low-light performance with powered-by-DarkFighter technology

-Efficient H.265+ compression technology

-Clear imaging against strong back light due to 120 dB true WDR technology

-Focus on human and vehicle target classification based on deep learning

-Advanced streaming technology that enables smooth live view and data self-correcting in poor network

-Water and dust resistant (IP67) and vandal-resistant (IK10)

Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100, 000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV

2.8 mm, horizontal FOV 110°, vertical FOV 57°, diagonal FOV 134°

4 mm, horizontal FOV 88°, vertical FOV 50°, diagonal FOV 100°

6 mm, horizontal FOV 60°, vertical FOV 34°, diagonal FOV 68°

Lens Mount M12 Iris Type Fixed Aperture F1.6 DORI DORI

2.8 mm: D: 89 m, O: 35 m, R: 18 m, I: 9 m

4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m

6 mm: D: 140 m, O: 56 m, R: 28 m, I: 14 m

Illuminator Supplement Light Range Up to 40 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

*Fourth stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Fourth stream: H.265/H.264/MJPEG

*Third stream and fourth stream are supported under certain settings.

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.265 and H.264 encoding Region of Interest (ROI) 5 fixed regions for main stream and sub-stream Target Cropping Yes Audio Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP Simultaneous Live View Up to 6 channels API Open Network Video Interface
