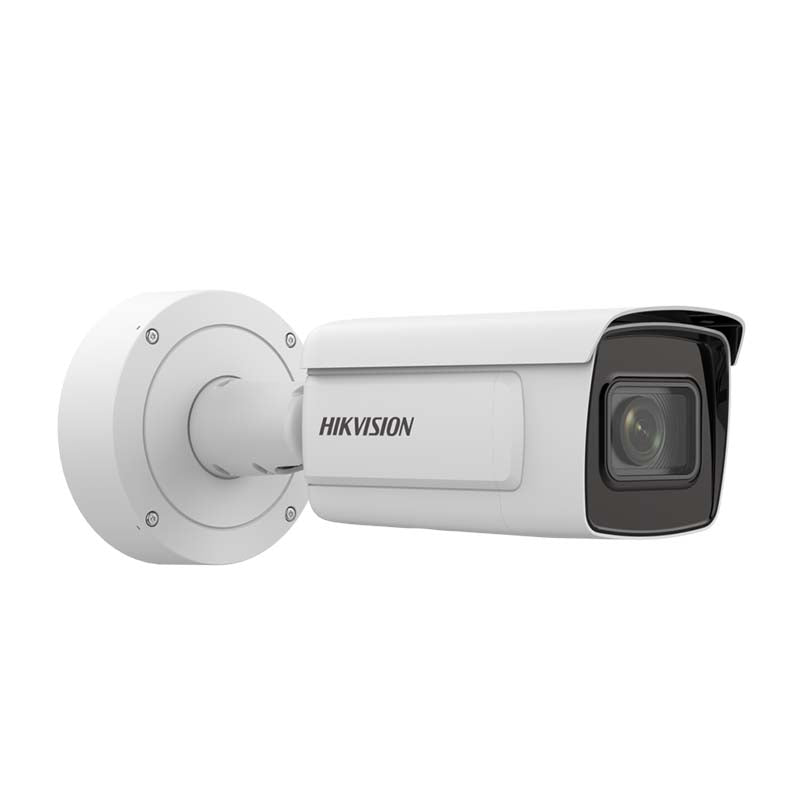

Hikvision iDS-2CD7A86G0-IZHSY 4K DeepinView 2.8-12mm Moto Varifocal DarkFighter Bullet Camera

-High quality imaging with 8 MP resolution

-Excellent low-light performance via DarkFighter technology

-Clear imaging against strong back light due to 120 dB true WDR technology

-Efficient H.265+ compression technology to save bandwidth and storage

-5 streams to meet a wide variety of applications

-Water and dust resistant (IP67) and vandal proof (IK10)

Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON);

B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time 1 s to 1/100,000 s Day & Night

IR cut filter

Blue glass module to reduce ghost phenomenon

Lens Aperture

2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

Iris Type P-iris Focal Length & FOV

2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3°

8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°

Focus Auto,Semi-auto,Manual DORI DORI

Wide:

2.8 to 12 mm: D (Detect): 87 m, O (Observe): 34.5 m, R (Recognize): 17.4 m, I (Identify): 8.7 m

8 to 32 mm: D (Detect): 218 m, O (Observe): 86.5 m, R (Recognize): 43.6 m, I (Identify): 21.8 m

Tele:

2.8 to 12 mm: D (Detect): 216 m, O (Observe): 85.7 m, R (Recognize): 43.2 m, I (Identify): 21.6 m

8 to 32 mm: D (Detect): 580 m, O (Observe): 230.2 m, R (Recognize): 116 m, I (Identify): 58 m

Illuminator Supplement Light Type IR Supplement Light Range

2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

Smart Supplement Light Yes IR Wavelength 850 nm AI Open Platform Model Specification

Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

Video Main Stream

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280× 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Fifth Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 4 fixed regions for each stream Target Cropping Yes Bit Rate Control CBR,VBR Audio Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio S
