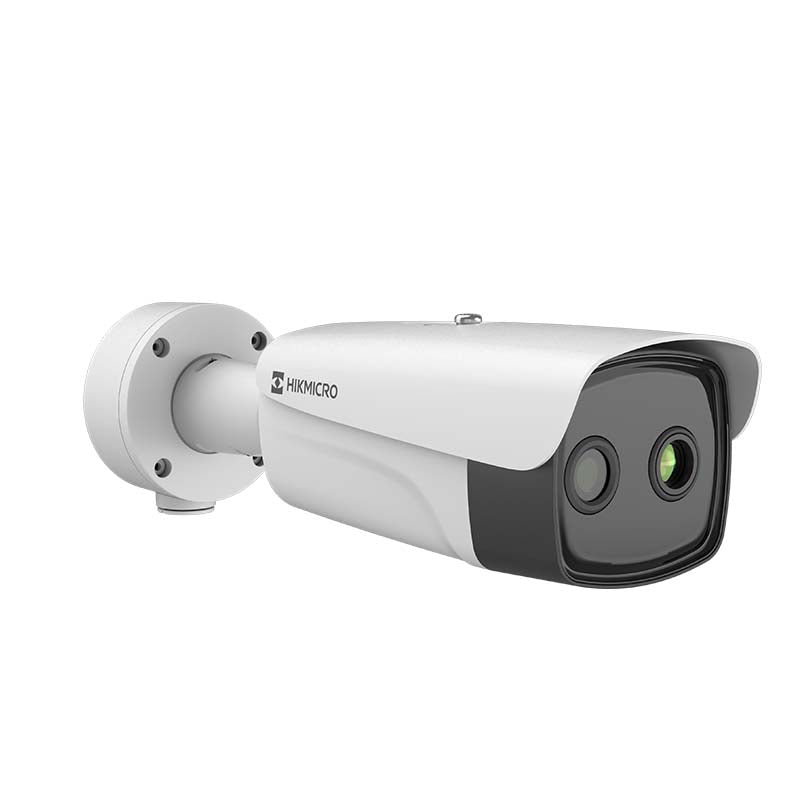

Hikvision HM-TD2638-25/G0/T1Y Thermal 25mm Lens & Optical 4MP Bi-spectrum Network Bullet Camera

-384 × 288 resolution, 12 μm, VOx UFPA, NETD ≤ 25 mK (25°C, F1.0)

-Video content analysis 3.0 (VCA3.0): high accuracy vehicle/human detection and classification

-Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)

-Fire detection Algorithm

-Support sun-reflection filter algorithm

-Built-in TPM2.0 encryption module for cybersecurity

-Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR

-High quality detector with 10 years guarantee

Thermal Module Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays Resolution 384 x 288 Pixel Pitch 12 μm NETD ≤ 20 mK (@25° C,F# = 1.0) Focal Length 25 mm IFOV 0.48 mrad Aperture F1.0 Field of View 10.5° × 7.9° (H × V) Min. Focusing Distance 23 m Digital Zoom ×2, ×4，×8 Optical Module Image Sensor 1/2.7" Progressive Scan CMOS Resolution 2688 × 1520 Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR Field of View 24.6° × 14° (H × V) Focal Length 12.4 mm Shutter Speed 1 s to 1/100,000 s White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light Day & Night Mode IR Cut Filter with Auto Switch WDR 120 dB Image Effect Bi-spectrum Image Fusion Display the details of optical channel on thermal channel Picture in Picture Display partial image of thermal channel on the full screen of optical channel Target Coloration Yes. Supported in white hot and black hot mode. EIS Thermal channle supports EIS, exclusive with all smart functions Illuminator IR Distance Up to 100 m IR Intensity and Angle Automatically adjusted Smart Function VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) Temperature Range -20 °C to 150 °C (-4 °F to 302 °F) Temperature Accuracy ± 8 °C (±14.4 °F) Fire Detection Dynamic fire detection, up to 10 fire points detectable Video and Audio Main Stream

Optical channel

50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Thermal channel

25 fps (1280×720P， 704×576， 352×288， 384×288)

Sub-stream

Optical channel

50 HZ: 25 fps (704 × 576, 352 × 288)

60 HZ: 30 fps (704 × 480, 352 × 240)

Thermal channel

25 fps (704 × 576, 352 × 288, 384 × 288)

Video Compression

Main Stream: H.265/H.264

Sub-Stream: H.265/H.264/MJPEG

Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM Video and Image Color Palettes 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) Network Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS Network Storage MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Netwo
