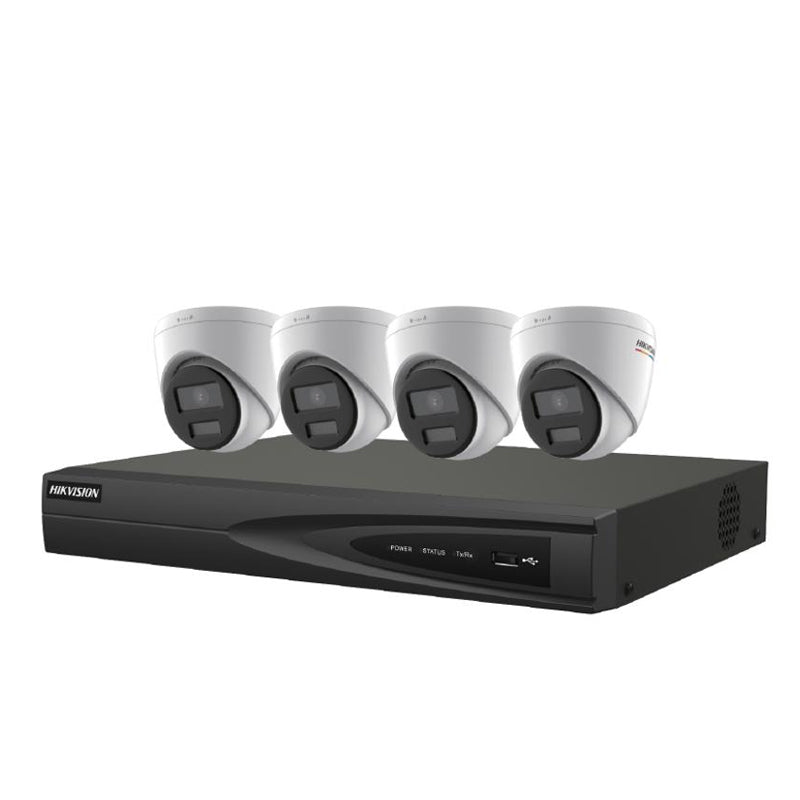

Hikvision EKI-K41T44C 4 Channel 8MP/4K PoE NVR with 1TB HDD & 4 4MP Color Night Vision Turret Cameras Kit

-Record from and Manage up to 4 Cameras

-Up to 8MP Recording Resolution

-1TB Preinstalled HDD

-H.265+/H.265/H.264+/H.264 Video Codecs

-4 PoE Ports

-4 x 4MP 2.8mm Turret Cameras Included

-Color Recording at Night up to 98'

-96° Horizontal Field of View

-HDMI and VGA Video Outputs

-IP67-Rated Cameras for Outdoor Use

NVR Motion Detection Human/Vehicle Analysis: 1 Channel

Channels 4

Bandwidth Incoming: 40 Mb/s Outgoing: 80 Mb/s

HDMI Output Resolution 4096 x 2160 at 30 Hz, 3840 x 2160 at 30 Hz, 2560 x 1440 at 60 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz

VGA Output Resolution 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz

Video Output HDMI/VGA Simultaneous Output

Audio Output 1-Channel, RCA (Linear, 1 Kilohm)

Two-Way Audio 1-Channel, RCA (2 V p-p, 1 Kilohm)

Decoding Formats H.265+, H.265, H.264+, H.264

Recording Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous Playback 4 Channels

Decoding Capability 1 Channel at 8 MP (30 fps) 3 Channels at 4 MP (30 fps) 6 Channels at 1080p (30 fps)

Streaming Video, Video & Audio

Audio Compression G.711ulaw, G.711alaw, G.722.1, G.726

Remote Remote Connections: 32

Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Network Interface 1 x RJ45 100M Self-Adaptive Ethernet Port

PoE Interface 4 x 100M RJ45 Self-Adaptive Ethernet Ports

PoE Power ≤50 W

PoE Standard IEEE 802.3af/at

SATA 1 x SATA Interface

HDD Capacity 8 TB per HDD

HDD Included 1 TB

USB 2 x USB 2.0

Alarm I/O N/A (4/1 Optional)

Power Supply 48 VDC, 1.35 A

Power Consumption ≤10 W

Operating Temperature 14 to 131°F / -10 to 55°C

Operating Humidity 10 to 90%

Dimensions 12.4 x 9.4 x 1.9" / 320 x 240 x 48 mm

Weight 2.6 lb / ≤1.18 kg (Without HDD)

Camera Image Sensor 1/3" Progressive Scan CMOS

Maximum Resolution 2560 x 1440

Shutter Speed 1/100,000 to 1/3 Seconds

Minimum Illumination Color: 0.001 Lux (f/1.0 with AGC) 0 Lux with Light

Day/Night 24/7 Color Imaging

3-Axis Adjustment Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360°

Lens 2.8mm

Field of View Horizontal: 96° Vertical: 52° Diagonal: 113°

Lens Mount M12

Iris Fixed

Aperture f/1.0

Depth Depth of Field: 6.6' to Infinity / 2 m to Infinity

DORI Distance Detect: 210' / 64 m Observe: 82' / 25 m Recognize: 39.3' / 12 m Identify: 19.7' / 6m

IR Range 98' / 30 m

IR Wavelength 850 nm

Resolution Main Stream: 2560 x 1440 at 20 fps, 1920 x 1080 at 24 fps

Sub-Stream: 1280 x 720 at 24 fps

Video Compression Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265, H.264, MJPEG

Video Bit Rate 32 kb/s to 8 Mb/s

Bit Rate Control CBR, VBR

Region of Interest One Fixed Region for Main Stream

Audio Mono

Environment Noise Filtering Yes

Audio Sampling Rate 8/16 kHz

Audio Compression G.711ulaw, G.711alaw, G.722.1, G.726, M
