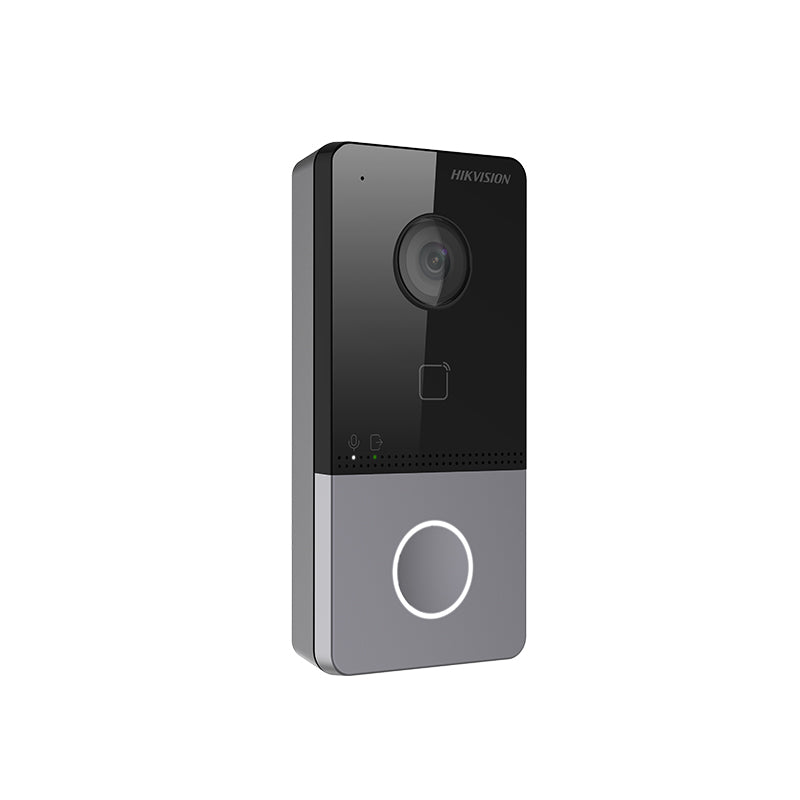

Hikvision DS-KV6113-WPE1 2MP POE and Wifi Villa Door Station with Card Reader Funtion

-2 MP camera with IR supplement

-One-touch button calling design for easier calls

-Built-in M1 card reader module

-Standard PoE power supply

-IP65 protection level

-Convenient Hik-Connect APP Mobile Control

System parameters Operation system Linux ROM 32 MB RAM 256 MB Processor Embeded high performance processor Display parameters Screen size / Operation method / Type / Resolution / Video parameters Lens 1 Resolution

Main stream: 1920 × 1080p, 720p

Sub stream: 640 × 480p

FOV Horizontal: 131° Vertical: 78° Wide dynamic range (WDR) Support 120 dB Supplement light IR light, up to 3 m Video compression standard H.264; H.265; MJPEG Audio parameters Audio input 1 built-in omnidirectional microphone Audio compression standard G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 Audio output 1 built-in loudspeaker Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity User capacity 2000 Face capacity / Card capacity 10000 Network parameters Network protocol TCP/IP, RSTP, IPV6, ONVIF Wi-Fi IEEE802.11b, IEEE802.11g, IEEE802.11n Bluetooth Not supported. 3G/4G / Device interfaces Alarm input 4 Network interface 1 RJ-45, 10/100 Mbps self-adaptive TAMPER 1 Exit button 1 RS-485 1 USB / Wiegand / TF card Reserved Alarm output / Lock control 1 relay, Max. 30 VDC 2 A Door contact input 1 General Button 1 physical button Installation Surface mounting Indicator 2

Net weight: 0.190 kg

Gross weight: 0.414 kg

Protective level IP65 Working temperature -40 °C to 55 °C(-40 °F to 131 °F) Working humidity 10% to 95% (no-condensing) Dimension (W × H × D) 138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1") Battery / Application environment Outdoor Power consumption ＜ 10 W Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish Power supply 12 VDC,Standard PoE, af
