Hikvision DS-KIS702Y-P Villa Two Wire Kit

-2-wire digital IP video intercom bundle for villa or house

-One call button for easier calls

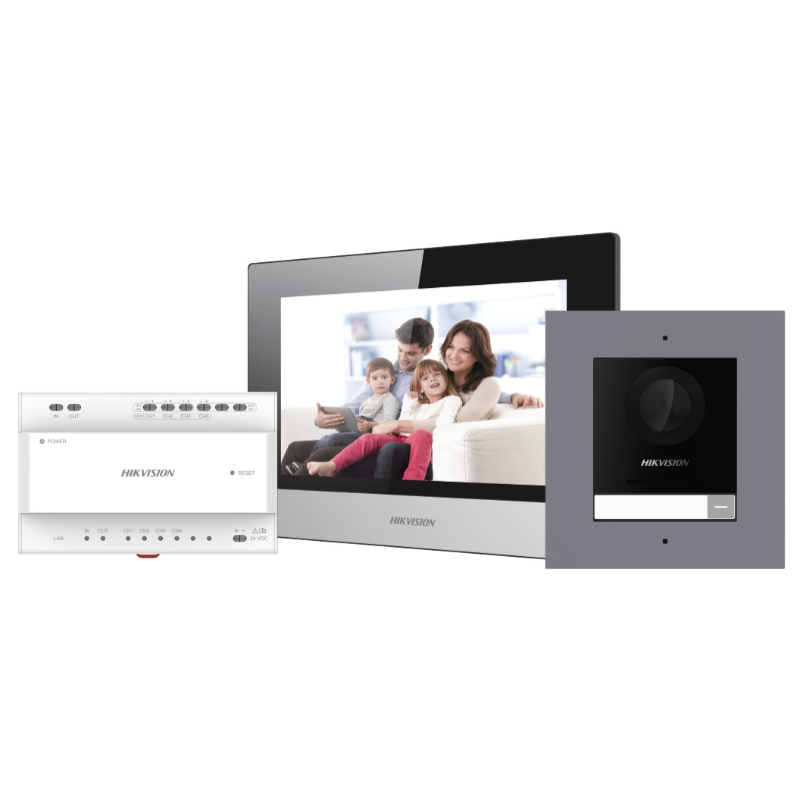

-Including: DS-KD8003Y-IME2/Surface × 1, DS-KH6320Y-WTE2 × 1, DS-KAD704Y × 1, PSU × 1, 16GB TF card × 1

-Power adapter included in the package

Door station/System parameters Processor Embedded microcontroller Operation system Embedded Linux operation system Operation mode One touch key Door station/Video parameters Camera

2MP super definition camera

Resolution

Main stream: 1920 × 1080, (720p

configurable); sub stream: 720 × 480

Night vision

Support low light and IR light supplement

mode

Backlight compensation Support Digital noise reduction Support WDR True WDR Field of view

Horizontal 146°, vertical 82°

Video Compression Standard H.264 Stream

Main stream: 1080p@30fps, 720p@30fps

(configurable); sub stream: D1

Motion detection Support Flash-avoid frequency 50 Hz, 60 Hz Door station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Loudspeaker, 20 cm sound effect > 80 db Audio quality Noise suppression and echo cancellation Audio compression standard G.711 U Audio compression Rate 64 Kbps Audio intercom Full-duplex two-way audio intercom Door station/Network parameters Network Protocol TCP/IP, RTSP, IPV6, ONVIF Door station/Device interfaces Debugging port 1 RS-485 1 (1 for Hikvision's sub module communication) Alarm input 4 (2 exit butttons and 2 door contacts by default) Lock control 2 (2 relay, max to 30 VDC, 2 A) TAMPER switch 1 Power interface Two-wire Door station/General Working temperature -40 °C to 60 °C (-40 °F to 140 °F) Working humidity 10% to 90% Dimension

100 mm × 98 mm × 42 mm (3.94" × 7.8\"

× 1.65) "

Installation Wall mounting Protection level

IP 65

Button 1 Power input

Powered by KAD704Y or KAD706Y series distributor

Indoor station/System parameters Operation system Embedded Linux operation system Memory 128 MB Flash 32 MB Indoor station/Display parameters Display screen 7-inch TFT LCD Display resolution 1024 × 600 Operation method Capacitive touch Indoor station/Audio parameters Audio input Built-in omnidirectional microphone Audio output

Built-in loudspeaker

Audio quality Noise suppression and echo cancellation Volume

Local or software control

Audio compression standard G.711 U, G.711 A Audio compression Rate 64 Kbps Indoor station/Network parameters Wired network

Two-wire network

Wireless network Wi-Fi 802.11b/g/n Protocol

TCP/IP, SIP, RTSP

Indoor station/Device interfaces Network interface

Two-wire interface

RS-485 1 Alarm input 8 zones alarm input Relay output 2（30 V Max.） TF card Support, Max. 128 GB Indoor station/General Power supply

Powered by KAD704Y or KAD706Y distributor

Power consumption ≤ 4 W Working temperature -10 °C to 50 °C (14 °F to 122 °F) Working humidity 10% to 90% Dimensions (W × H × D)

200 mm × 140 mm × 23.6 mm (7.87" ×

5.51 × 0.93\")"

Video Audio Distributor/Interfaces Network interface
