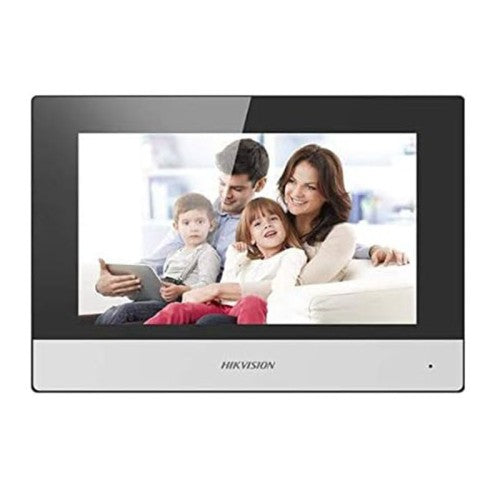

Hikvision DS-KH6320-WTE1 7" Touchscreen Video Intercom Indoor Station

Hikvision DS-KH6320-WTE1 7“ Touchscreen Video Intercom Indoor Station

Overview:

-7-inch TFT touch screen with 1024 × 600 resolution

-Convenient Hik-Connect APP Mobile Control

-Receive calls, open the door and live view remotely

-Easy to use without PC

-Easy wizard for quick set up

-Configure the whole system on one touch screen

-Live view of the door station and cameras in public areas

-Support voice messages when no response from the indoor station

-Receive alarms by linkage with a alarm system and notify the center to handle in time

Description:

System parameters

Operation system: Linux ROM: 32 MB RAM: 128 MB Processor: Embeded high performance processor

Display parameters

Screen size: 7-inch Operation method: Capacitive touch screen Type: Colorful TFT Resolution: 1024 × 600

Video parameters

Lens: / Resolution: / FOV: / Wide dynamic range (WDR): / Video compression standard: / Focal length: /

Audio parameters

Audio input: 1 built-in omnidirectional microphone Audio compression standard: G.711 U、G.711 A、G.722.1 Audio output: 1 built-in loudspeaker Audio compression bitrate: 64 Kbps Audio quality: Noise suppression and echo cancellation Volume adjustment: Adjustable

Capacity

Message capacity

TF card inserted: 200 captured pictures, 200 alarm records

Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records

Notice capacity: 200 Linked indoor extensions capacity: 16 Linked doorphone capacity: 17 Linked network camera capacity: 16

Network parameters

Network protocol: TCP/IP, SIP, RTSP Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n Bluetooth: / 3G/4G: / Zigbee: /

Device interfaces

Alarm input: 8 Network interface: 1 RJ-45 10/100 Mbps self-adaptive TAMPER: / RS-485: 1 RS-485 (Half duplex) USB: / TF card: Support TF card, up to 128 G Alarm output: 2 Lock control: 2 relays, Max. 30 VDC 0.3 A

General

Button: / Installation: Surface mounting Indicator: /

Net weight: 355 g (0.8 lb)

Gross weight: 683 g (1.5 lb)

Protective level: / Working temperature: -10 °C to 55 °C (14 °F to 131 °F) Working humidity: 10% to 90% (no-condensing) Dimension : (W × H × D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") Battery: / Application environment: Indoor Power consumption: ≤ 5 W Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
