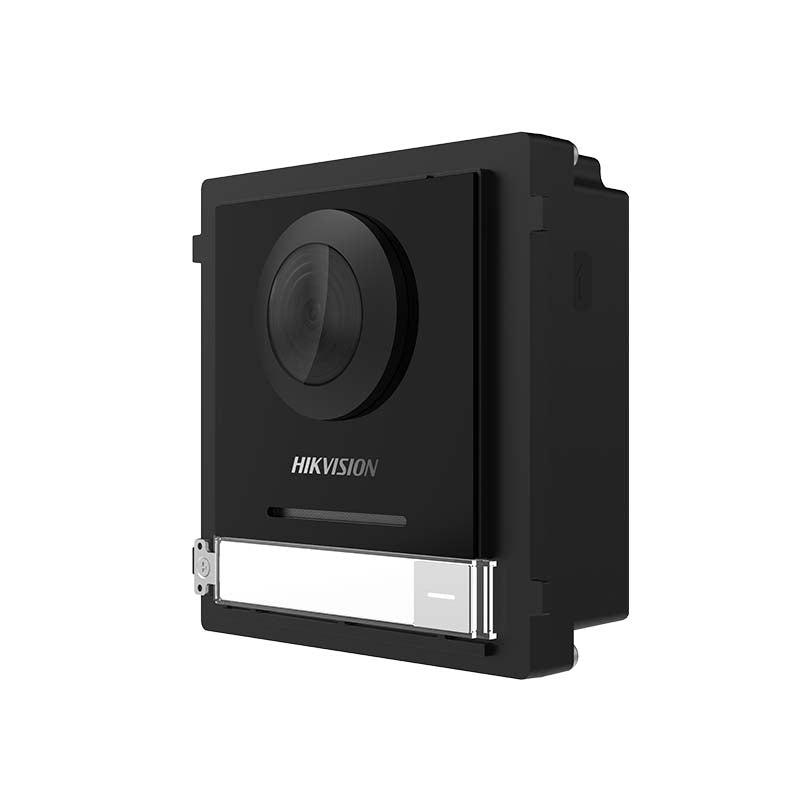

Hikvision DS-KD8003-1ME1/B KD8 Series Modular Door Station

-Main unit of modular door station.

-2MP fisheye Camera with IR Supplement.

-One call Physical Button For easier calls.

-Two-lock control.

-Standard PoE power supply.

-IP65 protection level.

-Convenient configuration via Web remotely.

-Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply.

System parameters Operation system Linux ROM 32 MB RAM 256 MB Processor Embeded high performance processor Display parameters Screen size / Operation method / Type / Resolution / Video parameters Lens 2 MP HD camera Resolution 2 MP FOV Horizontal: 146°, Vertical: 82° Wide dynamic range (WDR) Support Supplement light Low illumination, IR supplement lights Video compression standard H.264; H.265; MJPEG Audio parameters Audio input 1 built-in omnidirectional microphone Audio compression standard G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 Audio output 1 built-in loudspeaker Audio compression bitrate 64 Kbps Audio quality Noise suppression and echo cancellation Volume adjustment Adjustable Capacity User capacity 2000 Face capacity / Fingerprint capacity / Card capacity 6000 Message capacity / Linked indoor station capacity 500 Sub door station capacity 16 Network parameters Network protocol TCP/IP, RTSP, , ipv6, onvif Wi-Fi / Bluetooth / 3G/4G NA Device interfaces Alarm input 4 (2 exit buttons and 2 door contacts by default) Network interface 1 RJ-45, 10/100 Mbps self-adaptive TAMPER 1 Exit button 2 (2 for lock control) RS-485 1 (1 for Hikvision's sub module communication) USB / Wiegand / TF card / Alarm output / Lock control 2 relays, Max. 30 VDC, 2 A Door contact input 2 Two-Wire IP interface / General Button 1 Installation Surface mounting, flush mounting Indicator /

Net weight: 380 g

Gross weight: 541 g

Protective level IP65 Working temperature -40 °C to 60 °C (-40 °F to 140 °F) Battery / Power supply 12 VDC, 500 mA, IEEE 802.3af, PoE Application environment Outdoor Power consumption ≤ 5 W Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
