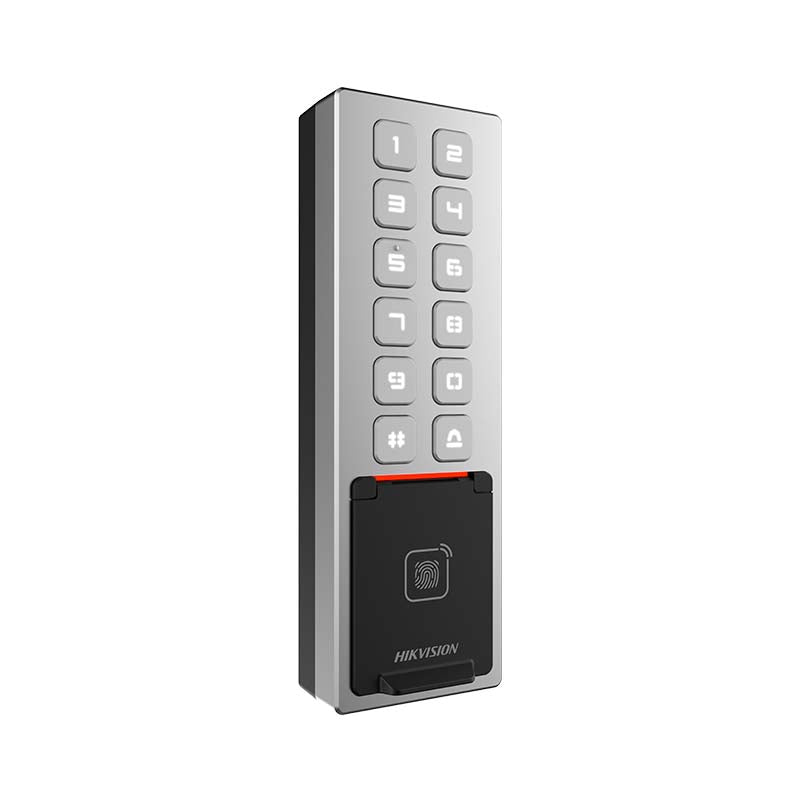

Hikvision DS-K1T805MBFWX Access Control Terminal with Built-in card reader for M1 card

-High protective level: IP65 and IK08

-Slim and flexible design with metal

-3,000 fingerprints, 10,000 cards and 100,000 events storage

-Built-in card reader for M1 card

-Supports operation by mobile App (Hik-Connect)

-Supports AP configuration, configuration via PC web and mobile web are available

-Supports multiple authentication types: card, fingerprint, PIN, and bluetooth

System Operating system Linux Audio Audio output 1 built-in buzzer Network Bluetooth Support Wired network 10/100 Mbps self-adaptive Wi-Fi 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i Interface RS-485 1, supports OSDP Network interface 1 Wiegand Wiegand 26/34 Lock control 1 Exit button 1 Door contact input 1 Alarm input 2 Alarm output 1 TAMPER 1 Capacity Card capacity 10,000 Fingerprint capacity 3000 Event capacity 100,000 Authentication Card type M1 card Card reading distance 0 to 4 cm Card reading duration ＜ 1 s Fingerprint module Optical fingerprint module Fingerprint comparing mode 1:1 and 1:N Fingerprint recognition duration ＜ 1 s General Power supply 12 VDC/1 A Working temperature -30 °C to 60 °C (-22 °F to 140 °F) Working humidity 0% to 90% (no condensing) Dimensions 57.7 mm × 177 mm × 34.6 mm (2.3" × 7.0" × 1.4") Power consumption ≤ 12 W Language English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian Function Hik-Connect Support Configuration via Web Browser Support PC web configuration and mobile web operation
