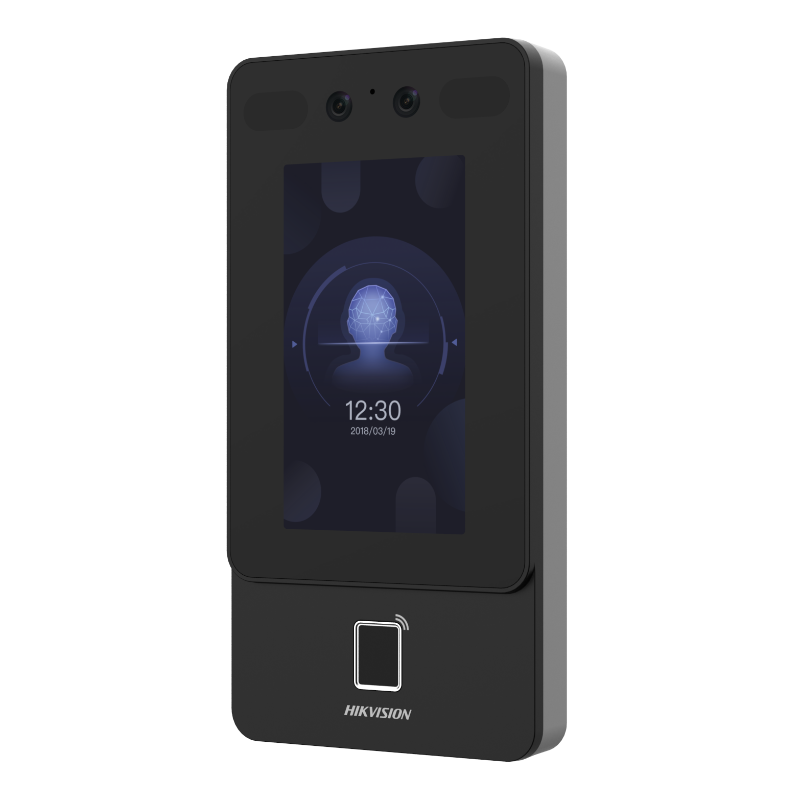

Hikvision DS-K1T342MFWX-E1 Wi-Fi Face Recognition Terminal

-Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards

-Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module

-Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi

-Supports ISAPI, ISUP5.0

-Configuration via the web client

-Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%

-Supports face with mask recognition

-Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)

-Supports platform-applied personal PIN and device-set personal PIN

System Operation system Linux Display Dimensions 4.3-inch Resolution 272 × 480 Type LCD Operation method Capacitive touch screen Video Pixel 2 MP Lens × 2 Video standard PAL (Default) and NTSC Network Wired network 10 M/100 M self-adaptive Wi-Fi Support Interface PoE IEEE802.3at, standard PoE Network interface 1 RS-485 1 Wiegand 1 Lock output 1 Exit button 1 Door contact input 1 TAMPER 1 USB 1 Capacity Card capacity 3,000 Face capacity 1,500 Fingerprint capacity 3,000 Event capacity 150,000 Authentication Card type M1 card Card reading frequency 13.56 MHz Face recognition duration ＜ 0.2 s Face recognition accuracy rate ＞99% Face recognition distance 0.3 to 1.5 m Fingerprint recognition duration ＜1 s General Power supply

Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)

Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)

Working temperature -30 °C to 60 °C (-22 °F to 140 °F) Working humidity 0 to 90% (No condensing) Dimensions 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") Installation Wall Mounting Protective level IP65 Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

Gross weight: 0.93 kg (2.05 lbs)

Net weight: 0.36 kg (0.79 lbs)

Function Face anti-spoofing Support Audio prompt Support Time synchronization Support
