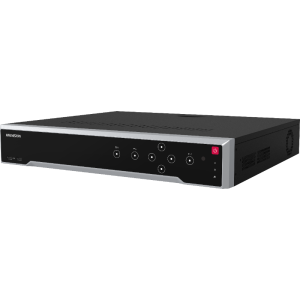

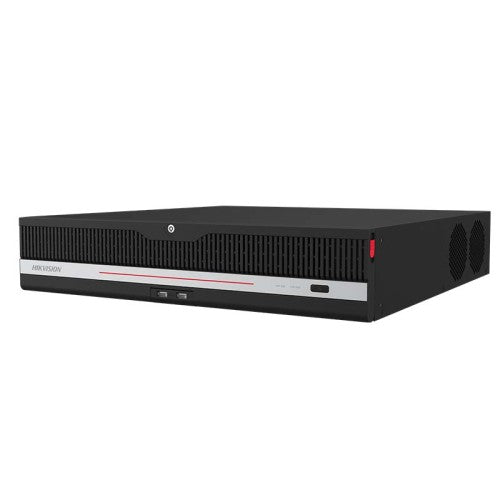

Hikvision DS-9632NXI-M8R/VPRO 32-ch 2U 8K VPro NVR

-Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity

-H.265+/H.265/H.264+/H.264 video formats

-Up to 32-ch IP cameras can be connected

-Intelligent analytics based on deep learning algorithm

-Self-learning algorithm reduces perimeter protection false alarms

-Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture

-Up to 12-ch video structuralization

-Redundant power supply

-Up to 8-ch IP speakers can be connected

Intelligent Analytics AI by NVR Facial recognition, perimeter protection, video structuralization AI by Camera Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA Engine 2, each engine can run an intelligent algorithm, engine mode is adjustable AcuSearch By NVR up to 8-ch,up to 691,200 targets/day By Camera

All channels ,up to 691,200 targets/day

The camera should enable AcuSearch function

Perimeter Protection By NVR

perimeter protection powered by self-learning : 12-ch 2 MP or 8-ch 4MP or 4-ch 8MP

perimeter protection without self-learning : 24-ch 2 MP or 16ch-4MP or 8-ch 8MP

By Camera perimeter protection powered by self-learning with AcuSense cameras: All channels Self-Learning Perimeter Protection All channels; Analysis speed: 4 pictures per second; Note: Enabling self-learning would occupy an engine. Video Structuralization Structured Analysis 12-ch 2 MP (6-ch for each engine), up to 8 MP Face Picture Library Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) Face Picture Comparison

16-ch;

Comparison speed: 32 pictures per second

Facial Recognition Facial Detection and Analytics Face picture comparison, human face capture, face picture search Face Picture Library Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 10,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) Face Picture Comparison (Captured from Camera)

32-ch (24-ch for each engine);

Comparison speed: 48 pictures per second

Facial Detection and Analytics Performance 16-ch 2 MP (8-ch for each engine), up to 8 MP ANPR By Camera All channels Plate Attributes Plate number, license plate color, license plate type Vehicle Attributes Vehicle brand, vehicle color, vehicle type Video and Audio IP Video Input

32-ch

Up to 32 MP resolution

Incoming Bandwidth 320 Mbps Outgoing Bandwidth 400 Mbps HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

Incoming Bandwidth
