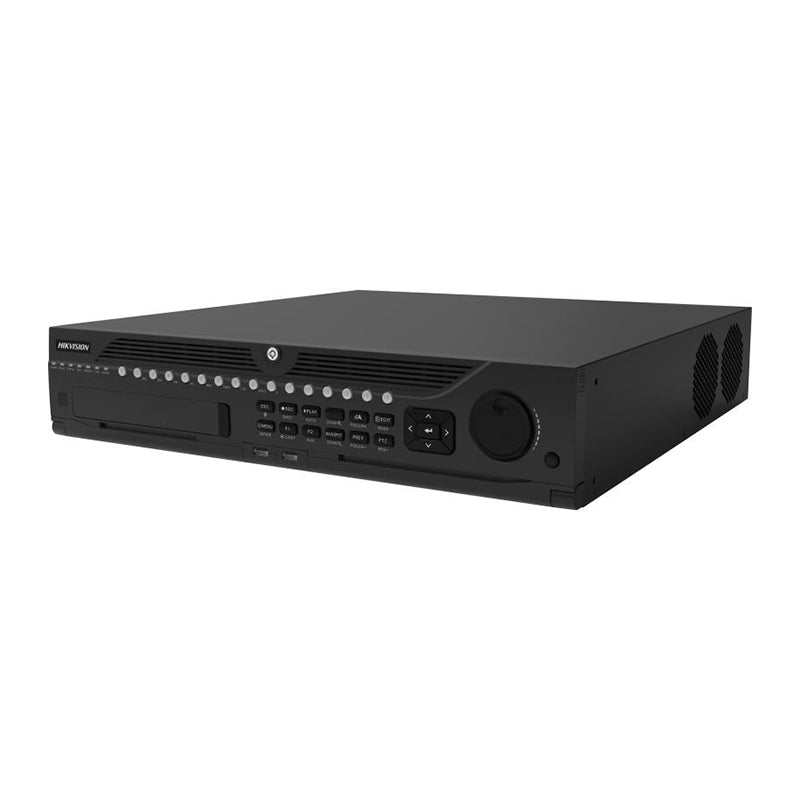

Hikvision DS-9632NI-I8 32-Channel 2U 4K NVR (Open Box)

Hikvision DS-9632NI-I8 32CH 4K 2U NVR

Open box

32-ch 2U 4K NVR

Up to 32 channel IP cameras can be connected

Up to 12 MP high-definition live view, storage and playback

Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected

2 HDMI (different source) and 2 VGA (different source) interfaces

8 HDD can be used for continuous video recording

Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

Advanced streaming technology enables smooth live view in poor network conditions

Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Full Specification:

Video and Audio

IP Video Input: 32-ch

Up to 12 MP resolution

*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I8, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

Incoming Bandwidth: 320 Mbps Outgoing Bandwidth: 256 Mbps Incoming Bandwidth (RAID Mode): 200 Mbps Outgoing Bandwidth (RAID mode): 200 Mbps HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA 1 Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA 2 Output: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Video Output Mode:

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output: 2-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4 Recording Resolution:

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

Synchronous playback: 16-ch Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) Dual-Stream Recording: Support Stream Type: Video, Video & Audio Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Remote Connection: 128 Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary Interface

Serial Interface: 1 RS-485 (full-duplex), 1 RS
