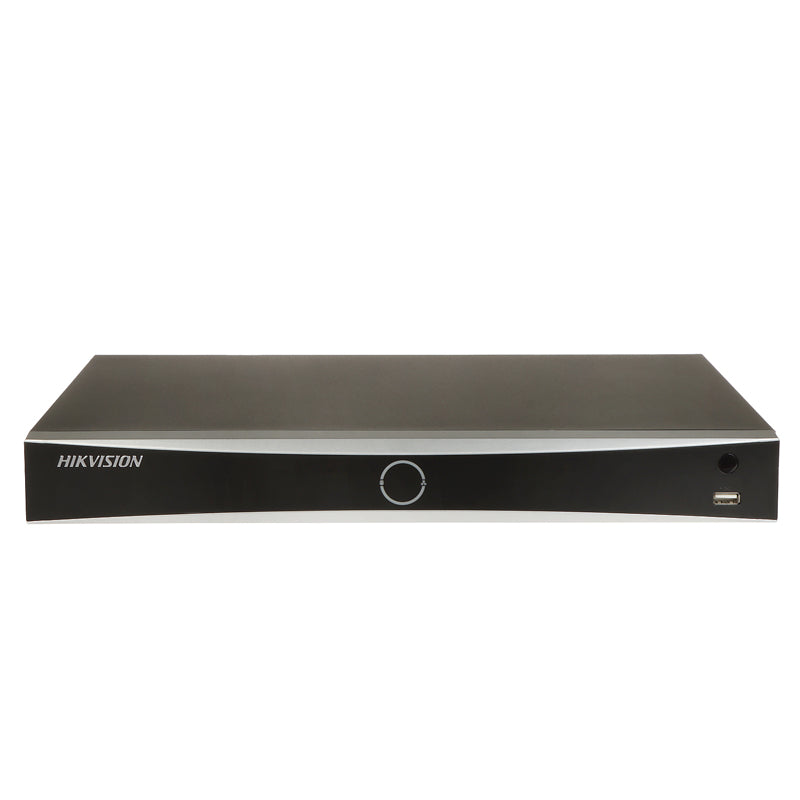

Hikvision DS-7616NXI-K2/16P AcuSense K Series 16-Channel 12MP NVR

-Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces

-H.265+/H.265/H.264+/H.264 video formats

-Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity

-Up to 160 Mbps incoming bandwidth

-Adopt Hikvision Acusense technology to minimize manual effort and security costs

Number of Channels 16

Playback Resolution HDMI:  3840 x 2160 at 30 Hz   2560 x 1440 at 60 Hz  VGA:  1920 x 1080 at 60 Hz

Recording Resolution 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP

Throughput 160 Mb/s (Incoming) 160 Mb/s (Outgoing)

A/V I/O 1x HDMI 1x VGA 1x RCA Audio Output (2 V p-p, 1 Kilohm) 1x RCA Audio Input (1 Kilohm, Linear)

Communication I/O 1x RJ45 Gigabit Ethernet 16x RJ45 10/100 Mb/s Ethernet PoE 2x USB-A 2.0

Wi-Fi No

Bluetooth No

Installed Drive No

Mobile App Compatible Yes: Android & iOS App Name: Hik-Connect

PoE Power Budget 200 W

General Number of Channels 16

Playback Resolution HDMI:  3840 x 2160 at 30 Hz   2560 x 1440 at 60 Hz  VGA:  1920 x 1080 at 60 Hz

Recording Resolution 1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP

Throughput 160 Mb/s (Incoming) 160 Mb/s (Outgoing)

IP Camera Support 16

Decoding Resolution 1 Channel: 12 MP at 30 fps 2 Channels: 8 MP, 12 MP at 30 fps 3 Channels: 8 MP at 30 fps 4 Channels: 4 MP at 30 fps 6 Channels: 4 MP at 30 fps 8 Channels: 1080p at 30 fps 12 Channels: 1080p at 30 fps

2-Way Audio Yes

Connectivity A/V I/O 1x HDMI 1x VGA 1x RCA Audio Output (2 V p-p, 1 Kilohm) 1x RCA Audio Input (1 Kilohm, Linear)

Communication I/O 1x RJ45 Gigabit Ethernet 16x RJ45 10/100 Mb/s Ethernet PoE 2x USB-A 2.0

Audio I/O 1x Input 1x Output

System Connection 2x SATA

Wi-Fi No

Bluetooth No

Remote Connections 128

Network Protocols DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, TLS, UPnP, iSCSI

Compatibility Supported Video Codecs H.264, H.264+, H.265, H.265+

Supported Audio Codecs AAC, G.711A, G.711U, G.722, G.726

Supported IEEE Standards 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)

Computing Optical Drive No

System Installed Drive No

Max Capacity Supported 10 TB (Each Drive) 20 TB (Total)

Number of Bays 2x Internal

Software System Requirements OS Compatibility Android/iOS

Mobile App Compatible Yes: Android & iOS App Name: Hik-Connect

Notifications Alarm I/O 4x Input 1x Output

Event Trigger Analytics, Motion

System Functions Search Modes Smart Search

Recording Modes Analytics

Fisheye Dewarping No

Electrical Power Consumption 15 W (Without HDD)

Power Supply Type External

PoE Power Budget 200 W

Input Power 100 to 240 VAC, 50 / 60 Hz

Physical Built-In Display No

Operating Conditions 14 to 131°F / -10 to 55°C at 10 to 90% Humidity

Certifications CE, FCC

LED Indicators Yes

Dimensions (W x D x H) 15.2 x 12.4 x 2.0" / 385.0 x 315.0 x 52.0 mm

Weight 6.6 lb / 3 kg (Without HDD)
