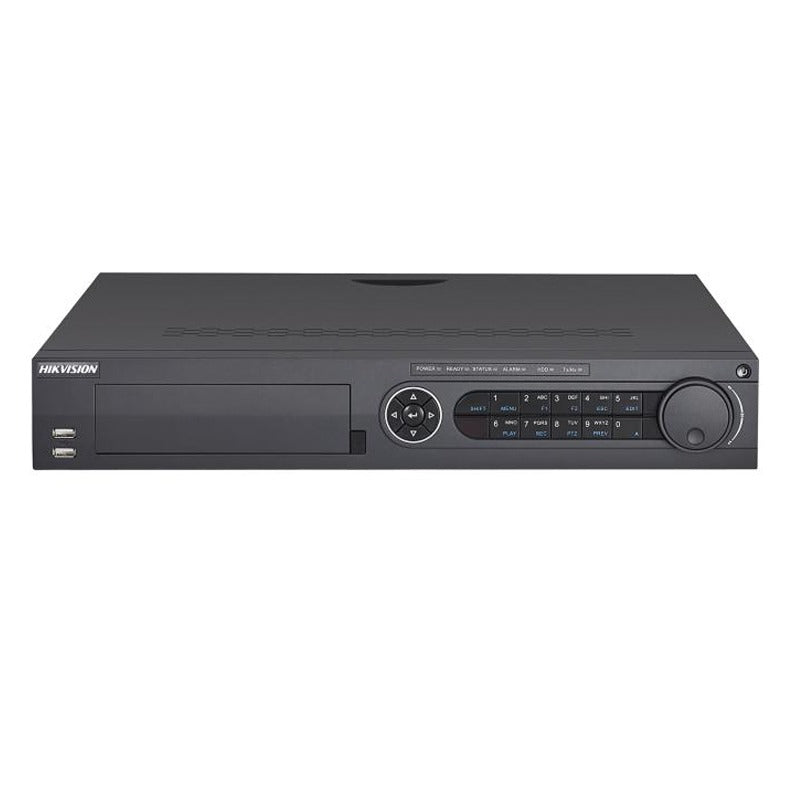

Hikvision DS-7316HQI 16CH 2MP 1.5U H.265+ 6MP IP/4MP TVI&AHD/2MP CVI DVR

Hikvision DS-7316HQI 16CH 2MP 1.5U H.265+ 6MP IP/4MP TVI&AHD/2MP CVI DVR,

Specification Recording: Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution: When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF Frame Rate: Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bitrate: 32 Kbps to 6 Mbps Dual-stream: Support Stream Type: Video, Video ＆ Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps Video and Audio: IP Video Input: 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1/2/3/4. AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input: 1080p25, 1080p30, 720p25, 720p30 CVBS Input: PAL/NTSC CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 HDMI 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) Synchronous playback: 16-ch Network: Remote Connection: 128 Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface Auxiliary Interface: Serial Interface: RS-232, RS-485 (full-duplex), Keyboard SATA: 4 SATA interfaces eSATA: Support Capacity: Up to 10 TB capacity for each disk Alarm In/Out: 16/4 USB Interface: Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 General: Power Supply: 100 to 240 VAC, 50 to 60 Hz Consumption: ≤ 55 W  Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity: 10% to 90% Dimension (W × D × H): 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) Weight: ≤ 7 kg (15.4 lb., wi
