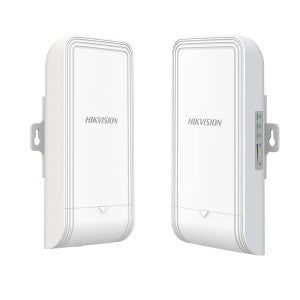

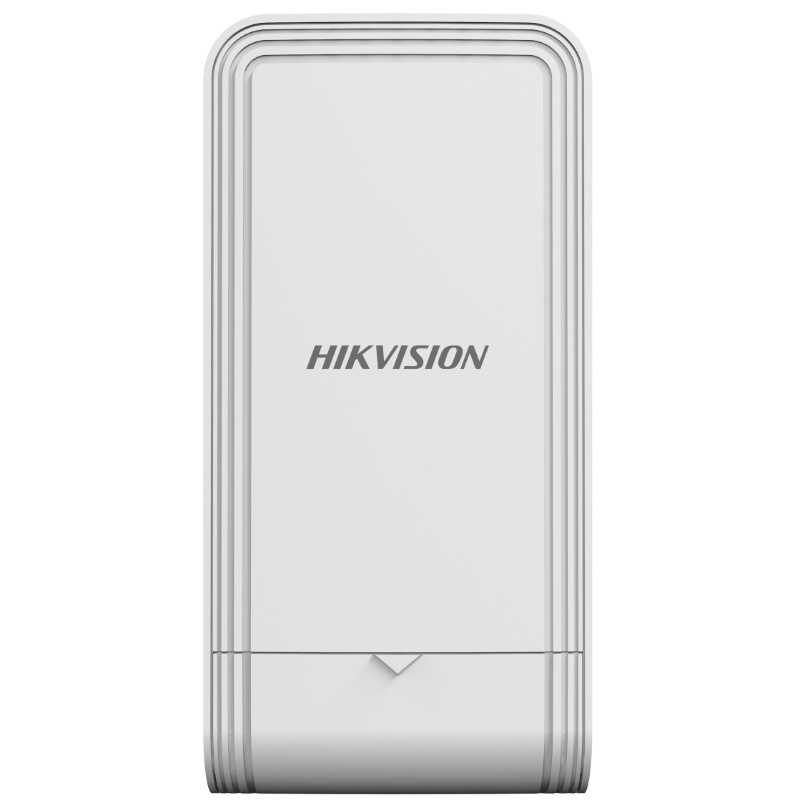

Hikvision DS-3WF3000S-EI-5AC/P 5Ghz 867Mbps 3KM Wireless Bridge

-Up to 3 km wireless transmission distance

-867 Mbps 802.11ac wireless bridge

-Built-in 8 dBi 2 x 2 MIMO antenna

-Visualized topology management

-Standard PoE Output

General Product Dimensions (W × H × D) 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'') Package Dimensions (W × H × D) 238 mm × 191 mm × 70 mm (9.37" × 7.52" × 2.76") Net Weight 0.26 kg (0.57 lb) per device Gross Weight 0.6 kg (1.32 lb) Packing List Wireless Bridge × 1,PoE Power Supply × 1,AC Cord × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 2 Packing Method Single unit packing Working Temperature -30 °C to 65 °C (-22 °F to 149 °F) Working Humidity 5% to 95% (no condensation) Storage Temperature -40 °C to 80 °C (-40 °F to 176 °F) Storage Humidity 5% to 95% (no condensation) Installation Mode Pole Mounting Ingress Protection IP55 Power Consumption 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W Wireless Parameter Max. Transmission Rate of Air Interface ≤ 867 Mbps Wireless Standard IEEE 802.11/a/n/ac Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.) Antenna Gain 8 dBi Antenna Angle (H) Beamwidth [3 dB] 50° (V), Beamwidth [3 dB] 50° Transmitting Power 22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.) Receiving Sensitivity -84 ±2dBm@AC80-MCS0 Throughput Rate PTP: 90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): 20 Mbps/3 KM(AC80) PoE Power Supply PoE Port LAN1 passive PoE IN, LAN2 802.3 af PoE OUT PoE Power Budget 10 W PoE Distance 100 m Hardware Parameter Network Interface 2 × 10/100 Mbps RJ45 ports LED Indicator Power indicator,LAN indicator,Signal intensity indicator Reset Hardware resetting button Power Supply 48V PoE/12~24V DC;Check the physical interface image below for more details. Software Function Application Function IFM,IPM,DFS,TPC Channel Width 20/40/80 MHz Channel Selection Auto/manual selection Security Mode WPA2-PSK Security Mechanism Wireless network name hidden Network Protocol NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging) Management Method HCP,Web,iVMS-4200,HPP System Log Syslog,Control center information Upgrade Web,iVMS-4200,HCP,HPP HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Reboot device

2. Restore device

3. Display the topology information

4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate

5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

6. Bridge alignment

7. Spectrum scanning

8. PoE output management

Approval EMC CE-EMC(EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4),RCM(AS/NZS CISPR 32) Safety CB (IEC 62368-1),CE-LVD (EN 62368-1) Chemistry
