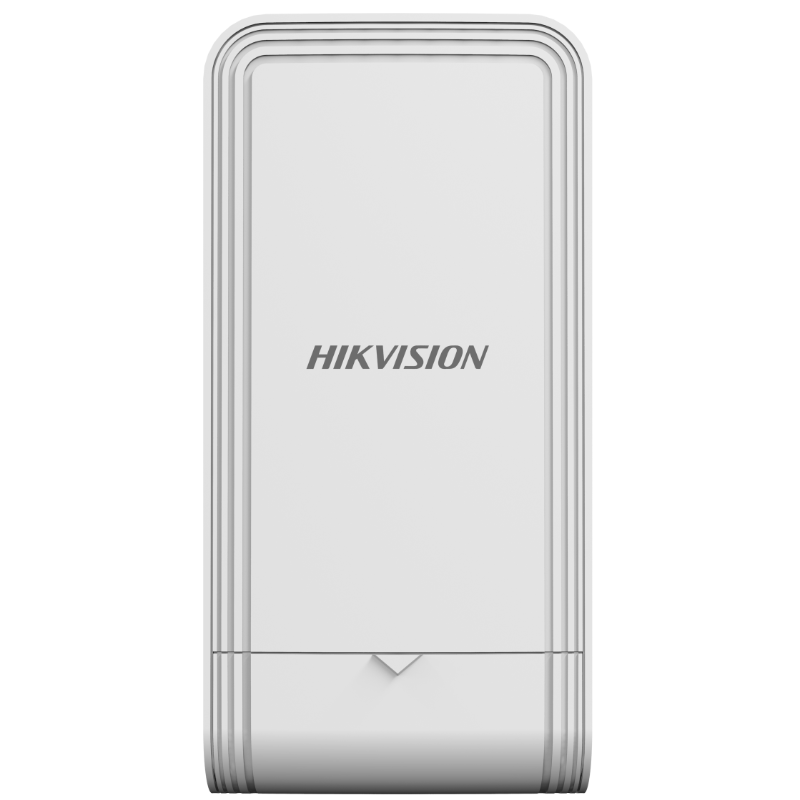

Hikvision DS-3WF02C-5AC/O 5Ghz 867Mbps 5km Outdoor Wireless CPE

-5Ghz 867Mbps 5km Outdoor Wireless CPE

-All gigabit LAN ports

-TDMA supported

-Quick match through DIP switch

-Visualized topology management

-Up to 5 km wireless transmission distance

-Note: This firmware is ONLY for DS-3WF02C-5AC/O V3 version, please double check the sticker on the device or package. DO NOT upgrade V2-verision device with this firmware, otherwise it will cause breakdown.

General Product Dimensions (W × H × D) 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'') Package Dimensions (W × H × D) 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") Net Weight 0.307 kg (0.677 lb) Gross Weight 0.807 kg (1.779 lb) Packing List Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,10/100/1000 Mbps PoE Injector × 1 Packing Method Single unit packing Working Temperature -30 °C to 70 °C (-22 °F to 158 °F) Working Humidity 5% to 95% (no condensation) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Storage Humidity 5% to 95% (no condensation) Installation Mode Pole Mounting Ingress Protection IP55 Power Consumption 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W Wireless Parameter Max. Transmission Rate of Air Interface ≤ 867 Mbps Wireless Standard IEEE 802.11/a/n/ac Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz Antenna Gain 12 dBi Antenna Angle (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° Transmitting Power 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.) Receiving Sensitivity -84±2dBm@AC80-MCS0 Throughput Rate PTP: ,230 Mbps/0.5 KM(AC80),200 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 8): ,80 Mbps/1 KM(AC80) Hardware Parameter Network Interface 2 × 1000 Mbps RJ45 ports LED Indicator Power indicator,LAN indicator,Signal intensity indicator Reset Hardware resetting button Power Supply 12 VDC/1 A Passive PoE Software Function Application Function TDMA,DFS,TPC,IFM,IPM Channel Width 20/40/80 MHz Channel Selection Auto/manual selection Security Mode WPA2-PSK Security Mechanism Wireless network name hidden Network Protocol NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging) Management Method Web,iVMS-4200,HCP,HPP System Log Syslog,Control center information Upgrade Web,iVMS-4200,HCP,HPP HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Reboot device

2. Restore device

3. Display the topology information

4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate

5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

6. Bridge alignment

7. Spectrum scanning

Approval EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue
