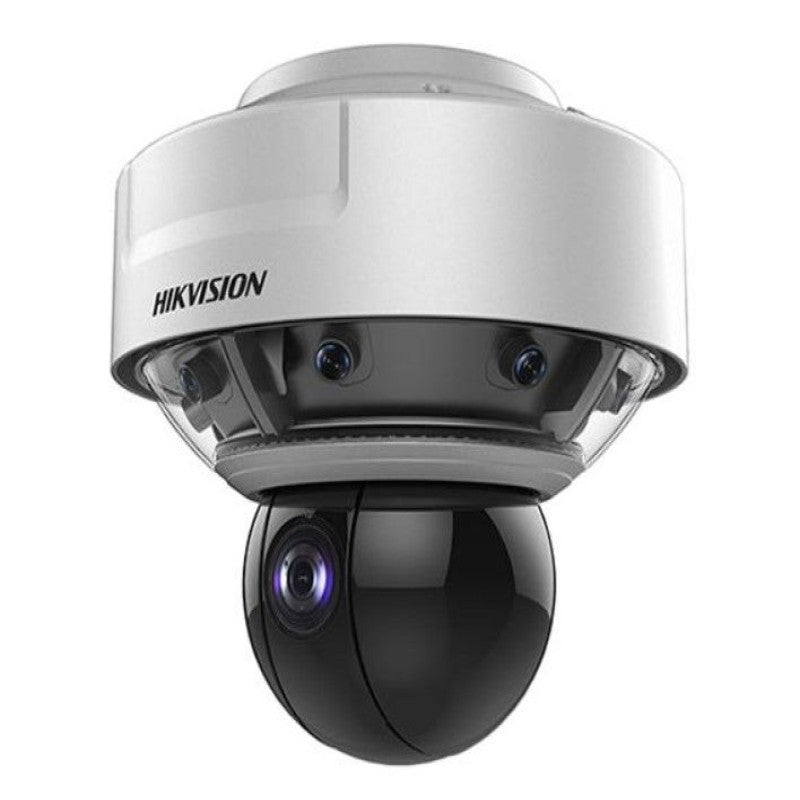

Hikvision DS-2DP1618ZIX 16MP 40X/Optical 16X/Digital 180° Panoramic & PTZ Camera, Open Box

Hikvision DS-2DP1618ZIX 16MP 40X/Optical 16X/Digital 180° Panoramic & PTZ Camera Open Box 16MP 180° Panoramic & PTZ Camera 180° splicing image, the image presents all scenes that covered by the camera Panoramic camera linkage PTZ design, capturing 180° images with the panoramic camera as well as close-up images with the PTZ camera, the high speed PTZ can offer the function of fast detail positioning over panoramic area Each lens up to 4 MP, capturing clear images, and more details can be displayed on video wall Target filtering, based on deep learning algorithms, the targets can be classified into human,vehicle and others to reduce false alarms Built-in heater, ultra-low temperature start up to -40℃ Specification   Camera   Image Sensor [Panoramic channel]: Four sensors, 1/1.8" progressive scan CMOS,  [PTZ channel]: 1/1.8" progressive scan CMOS Min. Illumination [Panoramic channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON)   [PTZ channel] Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON), 0 Lux with IR Shutter Speed 1 s to 1/30000 s Zoom [PTZ channel] 40x optical, 16x digital Slow Shutter Yes Lens   Focal Length [Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm FOV [Panoramic channel]:Horizontal field of view: 180°, Vertical field of view: 85°   [PTZ channel]:Horizontal field of view: 56.6° to 1.8° (Wide-Tele); Vertical field of view: 33.7° to 1.0° (Wide-Tele); Diagonal field of view: 63.4° to 2.0° (Wide-Tele) Aperture Max. F1.2 Zoom Speed Approx. 4.4 s Illuminator   Supplement Light Type IR Supplement Light Range Up to 250 m Smart Supplement Light Yes PTZ   Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed Pan Manual speed: configurable from 0.1° to 210°/s; preset speed: 240°/s Tilt Speed Tilt Manual speed: configurable from 0.1° to 150°/s, preset speed 200°/s Proportional Pan yes Presets 300 Preset Freezing Yes Patrol Scan 8 patrols Pattern Scan 4 pattern scans Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning Yes PTZ Status Display Yes Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output Power-off Memory Yes Video   Main Stream [Panoramic channel]:   50Hz: 25fps (5520 × 2400, 4096 × 1800, 3840 × 1680, 2784 × 1200)   60Hz: 30fps (5520 × 2400, 4096 × 1800, 3840 × 1680, 2784 × 1200)   [PTZ channel]:   50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)   60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream [Panoramic channel]:   50Hz: 25fps (2048 × 896, 1280 × 560, 704 × 320)   60Hz: 30fps (2048 × 896, 1280 × 560, 704 × 320)   [PTZ channel]:   50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)   60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) Third Stream [Panoramic channel]:    50Hz: 25fps (4096 × 1800, 3840 × 1680, 2784 × 1200, 2048 × 896, 1280 × 560, 704 × 320)   60Hz: 30fps
