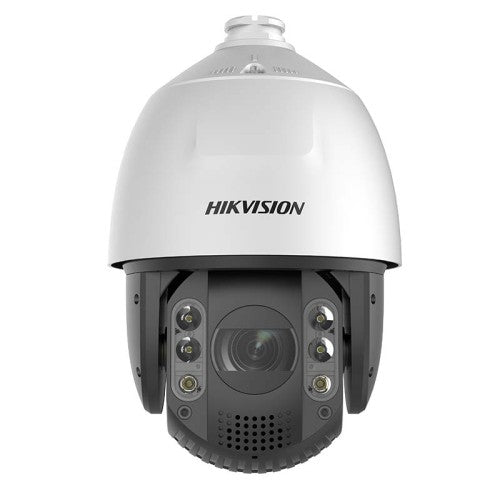

Hikvision DS-2DE7A432IW-AEB 7-inch 4 MP 32X PTZ Powered by DarkFighter IR Network Speed Dome

-1/1.8" progressive scan CMOS

-High quality imaging with 4 MP resolution

-Excellent low-light performance with powered-by-DarkFighter technology

-Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

-32× optical zoom and 16× digital zoom provide close up views over expansive areas

-Expansive night view with up to 200 m IR distance

-Focuses on human and vehicle targets classification based on deep learning

-Face capture: Up to 5 faces captured at the same time

Camera Image Sensor 1/1.8" progressive scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR Shutter Speed 1/1 s to 1/30000 s Day & Night IR cut filter Zoom 32x optical, 16x digital Slow Shutter Yes DORI

Detect (25px/m): 2046.9 m

Observe (63px/m): 812.3 m

Recognize (125px/m): 409.4 m

Identify (250px/m): 204.7 m

Lens Focal Length 5.9 mm to 188.8 mm FOV

Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)

Focus Auto,semi-auto,manual Aperture Max. F1.5 Zoom Speed Approx. 4.8 s Illuminator Supplement Light Type IR Supplement Light Range IR Distance: up to 200 m PTZ Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s Proportional Pan Yes Presets 300 Preset Freezing Yes Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Park Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning Yes PTZ Status Display Yes Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output Power-off Memory Yes Video Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Video Bit Rate 32 kbps to 16384 kbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream Audio Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Fi
