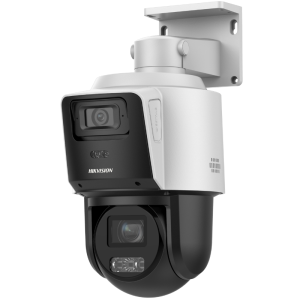

Hikvision DS-2DE3A400BW-DE 3-inch 4 MP ColorVu Mini PT Dome Network Camera

-Focuses on human and vehicle targets classification based on deep learning

-Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time

-Linked audible and visual alarm. Built-in microphone and speaker

-Up to 2560 × 1440 @ 30 fps

-Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light

-24/7 colorful imaging with low power consumption. Up to 30 m white light distance

-120 dB WDR, 3D DNR, HLC

-IP66; PoE

Camera Image Sensor 1/1.8" progressive scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light Shutter Speed 1/1 to 1/30,000 s Day & Night 24/7 colorful imaging Zoom 16x digital Lens Focal Length 4 mm FOV

Horizontal field of view: 88.7°

Vertical field of view: 46.5°

Diagonal field of view: 105.0°

Aperture F1.0 Illuminator Supplement Light Type White Light Supplement Light Range White Light Distance: up to 30 m PTZ Movement Range (Pan) 350° Movement Range (Tilt) 0° to 90° Pan Speed Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s Proportional Pan Yes Presets 300 Preset Freezing Yes Park Action Preset, patrol scan 3D Positioning Yes Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output Power-off Memory Yes Video Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream Audio Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM Environment Noise Filtering Yes Network Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Simultaneous Live View Up to 20 channels API ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP User/Host Up to 32 users. 3 levels: Administrator, Operator and User Security Authenticated username and password, MAC address binding, HTTPS encryption, IP address filter Network Storage NAS (NFS, SMB/ CIFS) Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+ Image Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Day/Night Switch Day, night, auto, scheduled-switch Wide Dynamic Range (WDR) 120 dB WDR SNR ＞52 dB De
