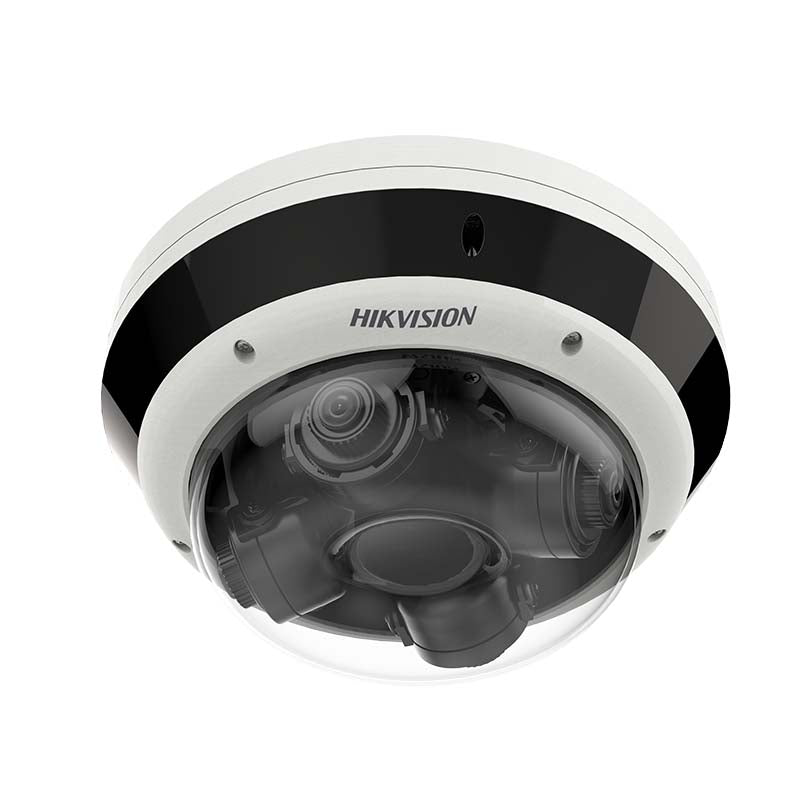

Hikvision DS-2CD6D54G1-IZ(S) 4-Directional 5 MP Multisensor Network Camera

-4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted

-Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall

-Clear imaging against strong back light due to 120 dB true WDR technology

-Water and dust resistant (IP67) and vandal proof (IK10)

-3D DNR technology delivers clean and sharp images

-S: audio and alarm interface available

Camera Image Sensor 1/2.7" Progressive Scan CMOS Max. Resolution 2560 × 1920 Min. Illumination

Color: 0.0125 Lux @(F1.9, AGC ON)

B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR

Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350° Lens Lens Type Varifocal lens, 2.8 to 8 mm Focal Length & FOV 2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4° Lens Mount Ø14 Focus Manual, semi-auto Aperture F1.9 Illuminator Supplement Light Type IR Supplement Light Range Up to 30 m IR Wavelength 850 nm Video Main Stream

50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 24 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 encoding Region of Interest (ROI) 4 fixed regions for each stream Target Cropping Yes Audio Audio Compression With -S model: G.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate With -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) Audio Sampling Rate With -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering With -S model: Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour Simultaneous Live View Up to 20 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR Client iVMS-4200, Hik-Connect, Hik-Central Web Browser IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Image Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white
