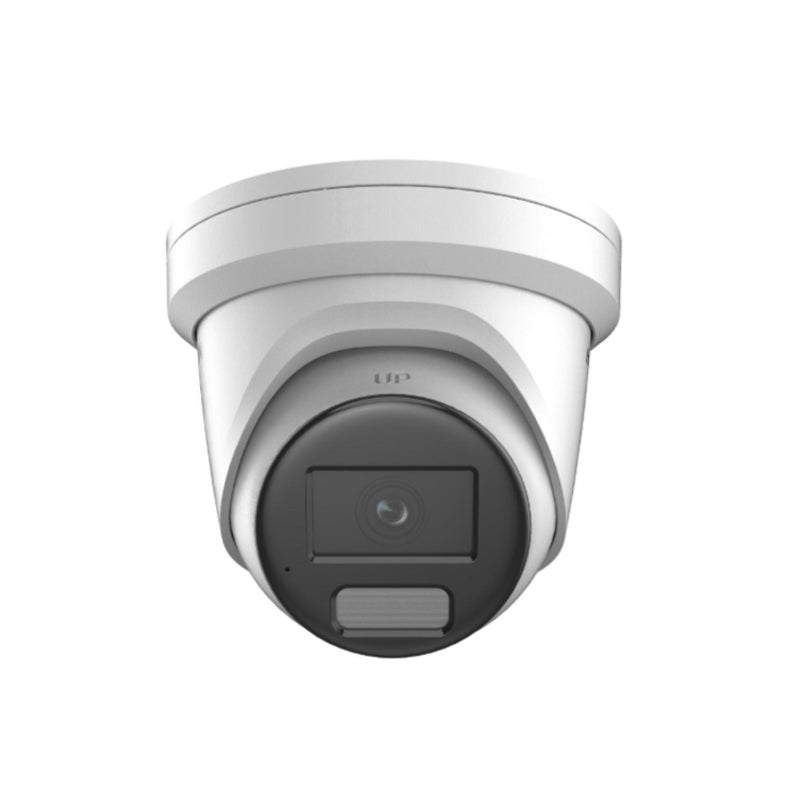

Hikvision DS-2CD3386G2H-LISU 8MP Smart hybrid light with Darkfighter S 2.8mm Fixed Turret Network Camera

-Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications

-Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources

-High quality imaging with 8 MP resolution

-Smart Dual-Light: advanced technology with long range

-Clear imaging against strong back light due to 130 dB WDR technology

-Efficient H.265+ compression technology

-U: Built-in microphone for real-time audio security

-Focus on human and vehicle classification based on deep learning

-Water and dust resistant (IP67)

Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV

2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

Lens Mount M16 Iris Type Fixed Aperture F1.0 Depth of Field

2.8 mm: 3.3 m to ∞

4 mm: 3.8 m to ∞

DORI DORI

2.8mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

4mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator Supplement Light Type IR,White Light Supplement Light Range Up to 40 m Smart Supplement Light Yes IR Wavelength 850 nm HEOP Open Resources

Memory: 40 MB,

Smart RAM: 350 MB,

eMMC: 2 GB

Computing Power 1.5 TOPS Open Capability HEOP 2.0 OpendevSDK Deep Learning Structure Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX Programming Language C,C++ Video Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

*Third stream and fourth stream are supported under certain settings.

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 5 fixed regions for main stream and sub-stream Target Cropping Yes Audio Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type Mono sound Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
