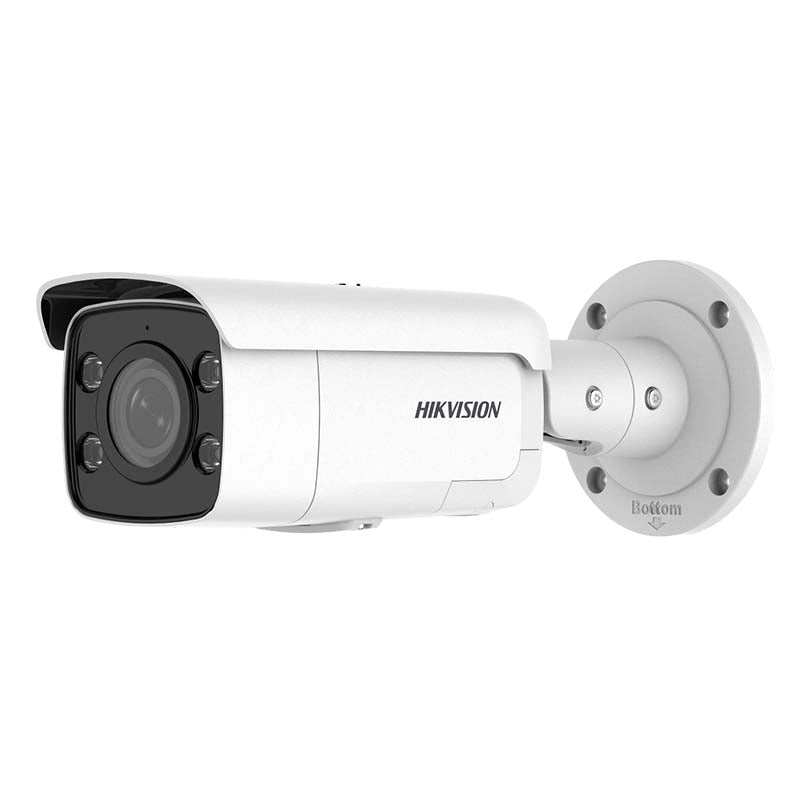

Hikvision DS-2CD2T87G2-LSU/SL 8MP ColorVu Strobe Light and Audible Warning 2.8mm Fixed Bullet Network Camera

-High quality imaging with 8 MP resolution

-Efficient H.265+ compression technology

-Clear imaging against strong backlight due to 130 dB WDR technology

-Focus on human and vehicle targets classification based on deep learning

-24/7 colorful imaging

-Active strobe light and audio alarm to warn intruders off

-Provide real-time security via built-in two-way audio

-Audio and alarm interface available

-Water and dust resistant (IP67)

Camera Image Sensor 1/1.2" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time 1/3 s to 1/100,000 s Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Day & Night 24/7 color imaging Lens Focal Length & FOV

2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°

Lens Type Fixed focal lens, 2.8, 4, 6 mm optional Iris Type Fixed Aperture F1.0 Lens Mount M mount Depth of Field

2.8 mm: 4.5 m to ∞

4 mm: 7 m to ∞

6 mm: 13 m to ∞

DORI DORI

2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminator Supplement Light Type White Light Supplement Light Range 60 m Smart Supplement Light Yes Video Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed region for main stream and sub-stream Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser

Plug-in required live view: IE 10, IE 11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
