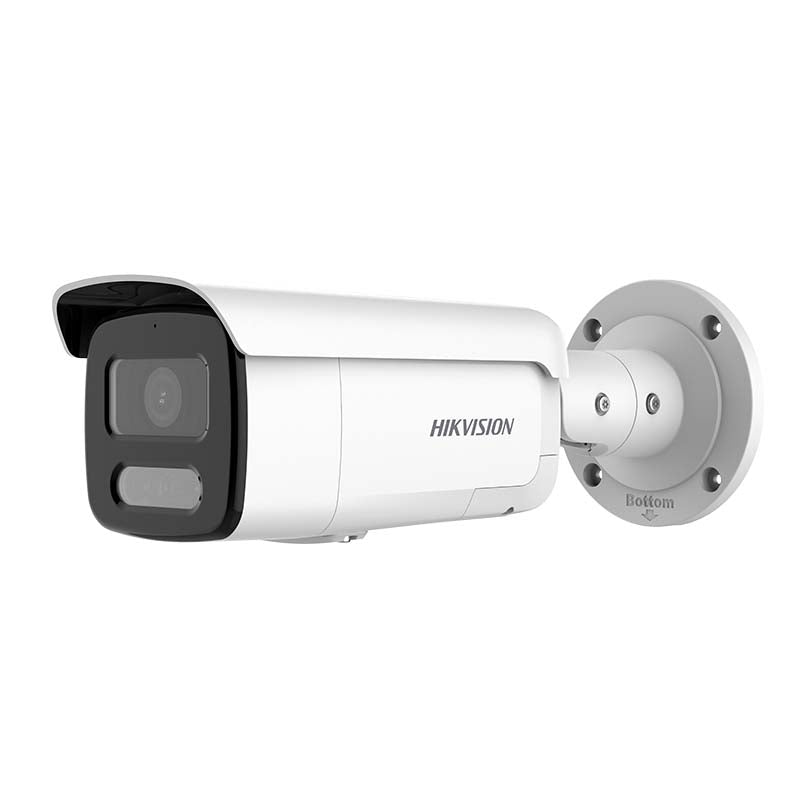

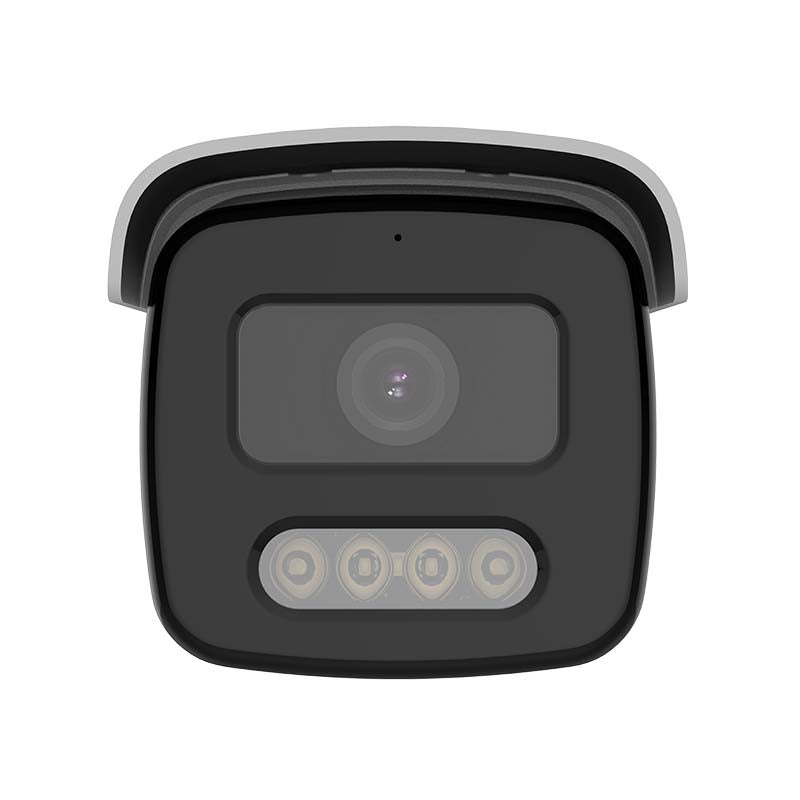

Hikvision DS-2CD2T47G2-LSU/SL 4MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera

-High quality imaging with 4 MP resolution

-Efficient H.265+ compression technology

-Clear imaging against strong backlight due to 130 dB WDR technology

-Focus on human and vehicle targets classification based on deep learning

-24/7 colorful imaging

-Active strobe light and audio alarm to warn intruders off

-Provide real-time security via built-in two-way audio

-Audio and alarm interface available

-Water and dust resistant (IP67)

Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time 1/3 s to 1/100,000 s Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Focal Length & FOV

2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°

4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°

6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°

Lens Mount M16 Iris Type Fixed Aperture F1.0 Depth of Field

2.8 mm: 3.1 m to ∞

4 mm: 5.4 m to ∞

6 mm: 12.1 m to ∞

DORI DORI

2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m

Illuminator Supplement Light Type White light Supplement Light Range Up to 60 m Smart Supplement Light Yes Video Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.265 and H.264 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic
