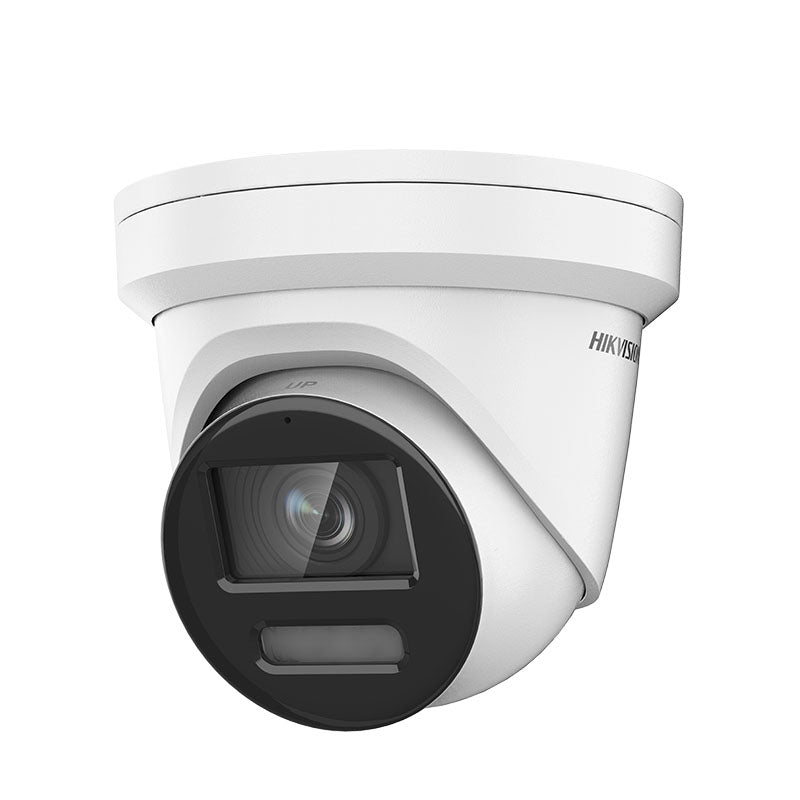

Hikvision DS-2CD2387G2-LU 8MP ColorVu 2.8mm Fixed Turret IP Camera

-High quality imaging with 8 MP resolution

-Efficient H.265+ compression technology

-Clear imaging against strong backlight due to 130 dB WDR technology

-Built-in microphone for real-time audio security(-U)

-Focus on human and vehicle targets classification based on deep learning

-24/7 colorful imaging

-Water and dust resistant (IP67)

Camera Image Sensor 1/1.2″ Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color：0.0005 Lux @ (F1.0, AGC ON) Shutter Speed 1/3 s to 1/100,000 s Day & Night 24/7 Color imaging Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV

2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

Lens Mount M16 Iris Type Fixed Aperture F1.0 Depth of Field

2.8 mm: 3.1 m to ∞

4 mm: 3.6 m to ∞

DORI DORI

2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator Supplement Light Type White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes Video Main Stream

50 Hz:

25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Environment Noise Filtering -U: Yes Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser
