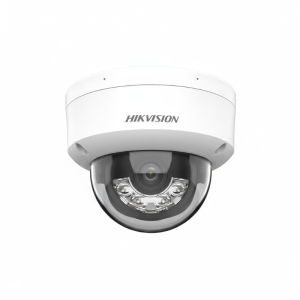

Hikvision DS-2CD2183G2-IU (BK) 8MP AcuSense Vandal Fixed Dome IP Camera

-High quality imaging with 8 MP resolution

-Clear imaging against strong backlight due to 120 dB true WDR technology

-Efficient H.265+ compression technology

-Focus on human and vehicle targets classification based on deep learning

-Built-in microphone for real-time audio security

-Water and dust resistant (IP67) and vandal-resistant (IK10)

Camera Image Sensor 1/2.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

Lens Mount M12 Iris Type Fixed Aperture F1.6 DORI DORI

2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Illuminator Supplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream

50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

*Third stream is supported under certain settings.

Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream Audio Audio Type Mono sound Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS
