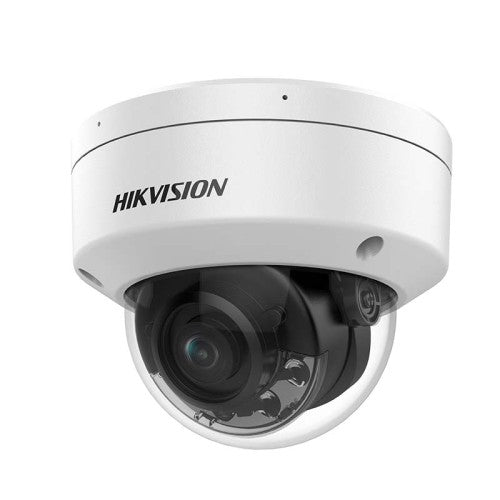

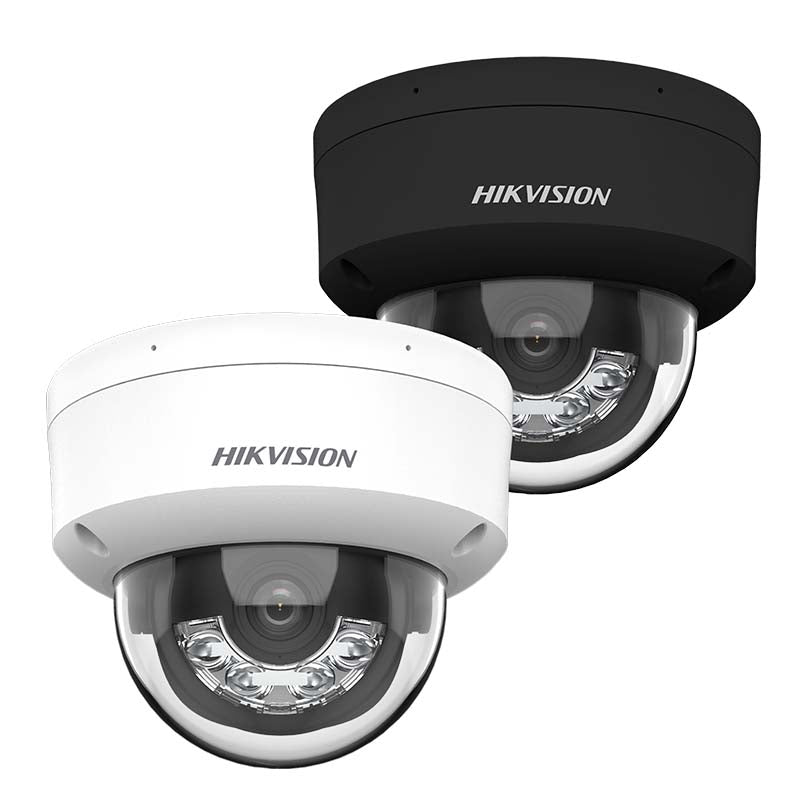

Hikvision DS-2CD2143G2-LIS2U 4MP Acusense Smart Hybrid Light Fixed Dome Network Camera

-High quality imaging with 4 MP resolution

-Acusense: Focus on human and vehicle classification based on deep learning

-Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes

-2U: Built-in arrayed dual-microphone for real-time high quality audio security

-Clear imaging against strong back light due to 120 dB true WDR technology

-Efficient H.265+ compression technology

-Water and dust resistant (IP67) and vandal-resistant (IK10)

Camera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° Lens Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV

2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

Lens Mount M12 Iris Type Fixed Aperture F1.6 Depth of Field

2.8 mm: 1.4 m to ∞

4 mm: 1.5 m to ∞

DORI DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator Supplement Light Type IR,White Light Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream

50 Hz:

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Scalable Video Coding (SVC) H.264 and H.265 encoding Bit Rate Control CBR,VBR Region of Interest (ROI) 1 fixed region for main stream and sub-stream Target Cropping Yes Audio Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate -2U: 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering -2U: Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface User/Host
