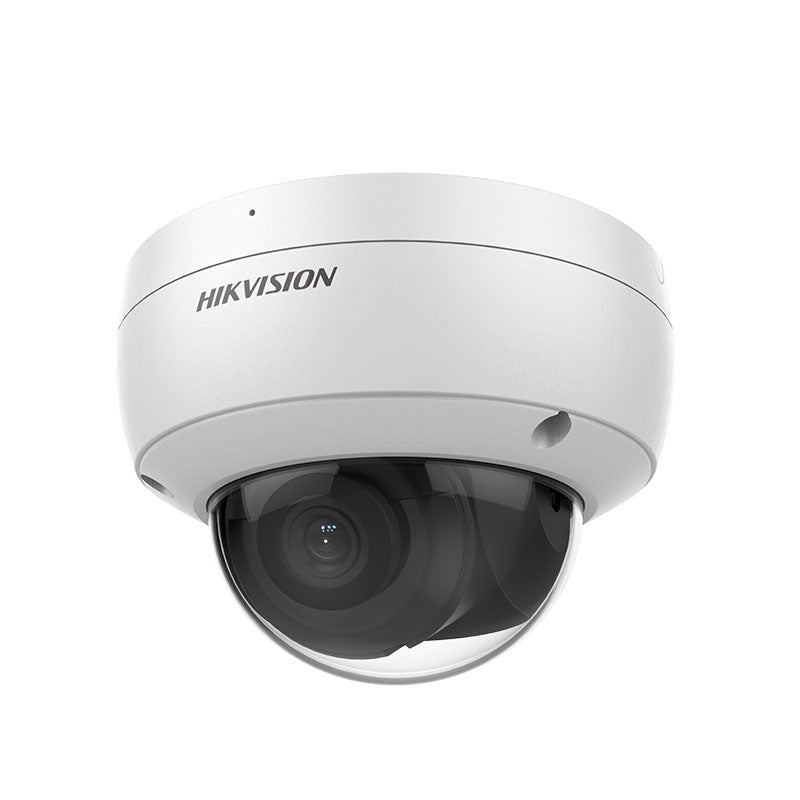

Hikvision DS-2CD2143G2-IU (BK) 4MP AcuSense with Mic 2.8mm and 4.0mm Fixed IP Dome

-High quality imaging with 4 MP resolution

-Clear imaging against strong backlight due to 120 dB WDR technology

-Efficient H.265+ compression technology

-Built-in microphone for real-time audio security

-Water and dust resistant (IP67) and vandal resistant (IK10)

-Focus on human and vehicle targets classification based on deep learning

Camera Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Focal Length & FOV

2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

Lens Mount M12 Iris Type Fixed Aperture F1.6 DORI DORI

2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m

4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Illuminator Supplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser

Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Image Parameters Switch Yes Image Settings Rotate, mirro
