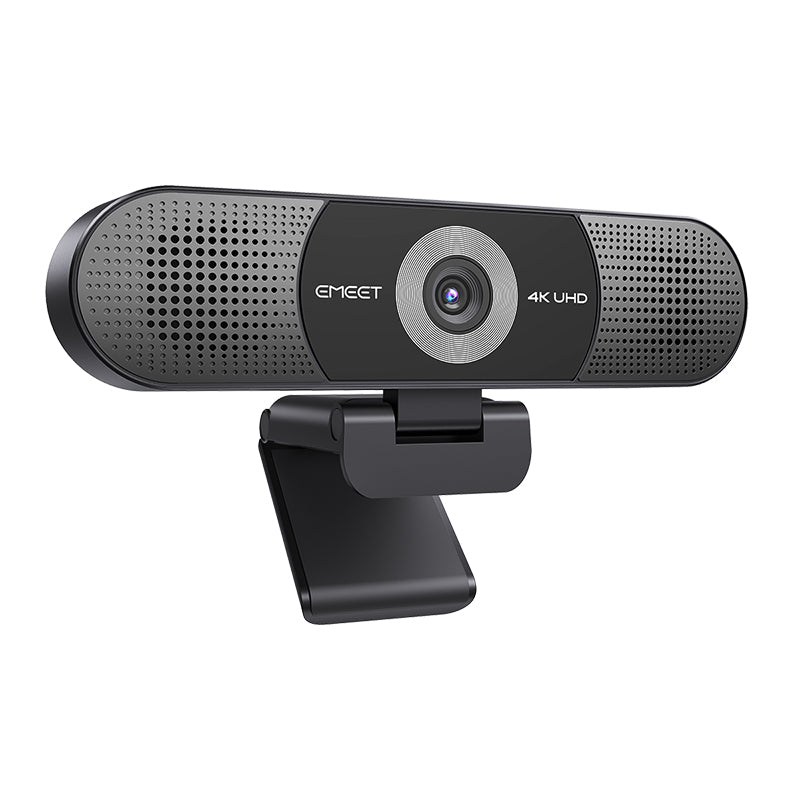

EMEET SmartCam C980 Pro Ultra 4K All-in-One Webcam Built-in with Speaker and Microphone

EMEET C980 Pro 4K is an all-in-one webcam designed for small enterprise applications, upgrading online meeting capability such as family doctor, online education, corps offices, etc. C980 Pro 4K captures image at 3840*2160 at 30fps, with 60-98° adjustable FoV. It has a 4-mic Noise cancelling array, and two 1W speakers, and works stably with all popular conferencing apps like Zoom, Skype, Microsoft teams, Google Meet, Cisco Webex, Facetime, GoToMeeting, Lifesize, Slack, Line, TrueConf, etc. The webcam uses USB 2.0 and is plug-and-play on Windows (7,10,11), MacOS (10.10 and up), Linus, Android TV (v7.0 and up).

Product Name

EMEET SmartCam C980 Pro 4K

Model

EMEET SmartCam C980 Pro 4K

Model Number

E3132

Manufacture Part Number

EMC8BU-LD

Diagonal Field of View

98° out of the box, software adjustable, 60°-98°

Digital Zoom

No

Lens

6P

Aperture

f2.2

Focus Mode

Fixed Focus

Focus Distance

50-230 cm

Supported Resolutions

3840*2160 @30fps

2560*1440 @30fps

1920x1080 @ 30fps

1280x720 @ 30fps

640x480 @ 30fps

640x360 @ 30fps

HDR Support

No

Mount - Horizontal Adjustable Angle

Built-in stand

Mount - Vertical Adjustable Angle

Adjustable forward by 90°, backward not adjustable

Audio Features

Number of Microphones

4 digital microphone arrays

Microphone Parameters

100-10KHz, -26dBFS

Microphone Noise Reduction Algorithm

Yes

Actual Call Distance

3m/10ft

Speaker Power and Quantity

1W*2

Speaker Size

Φ32mm

Speaker Impedance

8Ω

Speaker Signal-to-Noise Ratio

>75dB

Speaker Distortion

<1%

Input/Output Interfaces

USB Interface

USB 2.0, Type A

Tripod Screw Hole

1/4 inch screw

Data Cable

1.8m/6ft fixed Type-A cable

Privacy Cover Specifications

Magnetic privacy cover

Dimensions & Packaging Information

Main Unit Dimensions

159x62x69 mm ±1 mm

Main Unit Net Weight

239 ±5 g

Package Box Dimensions

173x81.5x71 mm ±1 mm

Gross Weight (with Packaging)

316 ± 10g

Quantity per Carton

30

Outer Carton Dimensions (WHD)

455 x 360 x 265 mm ±5 mm

Gross Weight of the Outer Carton (whole carton)

13.00 ±0.5 kg

Package Contents

EMEET C980 pro *1, User Manual *1, Privacy Cover *1,

Compatibility Features

Hardware Requirements

2.4 GHz Intel® Core 2 Duo processor or higher, 2 GB RAM or higher, USB 2.0 port

Video Format

YUY2 / MJPEG

System Compatibility

Windows (Win7,10,11), macOS (10.10 and above), USB Video Device Class (UVC) mode, Android TV V7.0 and above, Linux

Software Compatibility

Zoom, Skype, Microsoft Teams, Google Meet, Cisco Webex, Facetime, GoToMeeting, Lifesize, Slack, Line, TrueConf

General Specifications

Input Voltage

5V (USB powered)

Maximum Input Current

500mA

Operating Temperature
