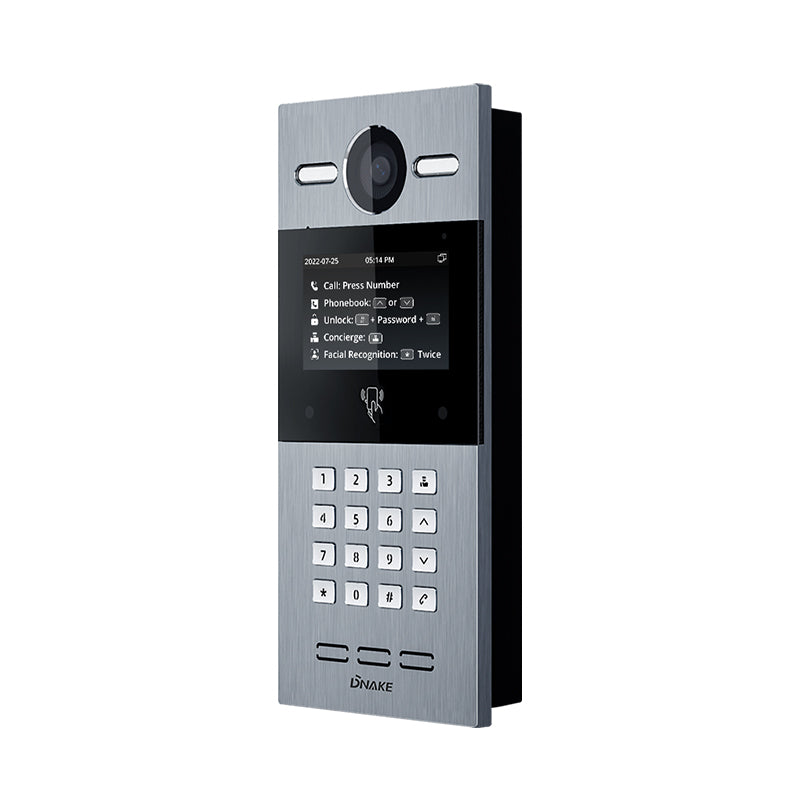

Dnake S615/S 4.3 inch Facial Recognition Android 2MP 120° wide-angle PoE+ Door phone Station with Surface Mounting Box

- 4.3” color TFT LCD - 3 output relays for door locks - 120° wide-angle 2MP HD camera with automatic lighting - Support WDR technology to lighten the dark areas and darken the overexposed parts of the image - Door entry methods: call, face, IC card (13.56MHz), ID card (125kHz), PIN code, APP - Anti-spoofing algorithm against photos and videos - Support 20,000 users, 20,000 faces, and 60,000 cards - Tamper alarm - Support surface & flush mounting - Easy integration with other SIP devices by SIP 2.0 protocol Physical Property   System  Android   RAM  1GB   ROM   8GB   Front Panel  Aluminum   Button  Mechanical   Power Supply  PoE+ (802.3at) or DC12V/2A   Standby Power  8W   Rated Power  16W   Camera  2MP, CMOS, WDR   Door Entry  Face, IC (13.56MHz) & ID (125kHz) card, PIN code, APP   IP Rating  IP65   Installation  Flush Mounting & Surface Mounting   Surface Mounting Dimension  295 x 133 x 42.7 mm    Flush Mounting Dimension  295 x 133 x 63.5 mm   Working Temperature  -40℃ - +55℃   Storage Temperature  -40℃ - +70℃   Working Humidity  10%-90% (non-condensing)

Display   Display  4.3-inch TFT LCD   Resolution  480 x 272

Audio & Video   Audio Codec  G.711    Video Codec  H.264   Video Resolution  up to 1920 x 1080   Viewing Angle  120°(H) / 75°(V) / 131°(D)   Light Compensation  LED white light

Networking   Protocol SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP

Port   Wiegand Port  Support   Ethernet Port  1 x RJ45, 10/100 Mbps adaptive   RS485 Port  1   Relay Out  3   Reset Button  1   Input  4
