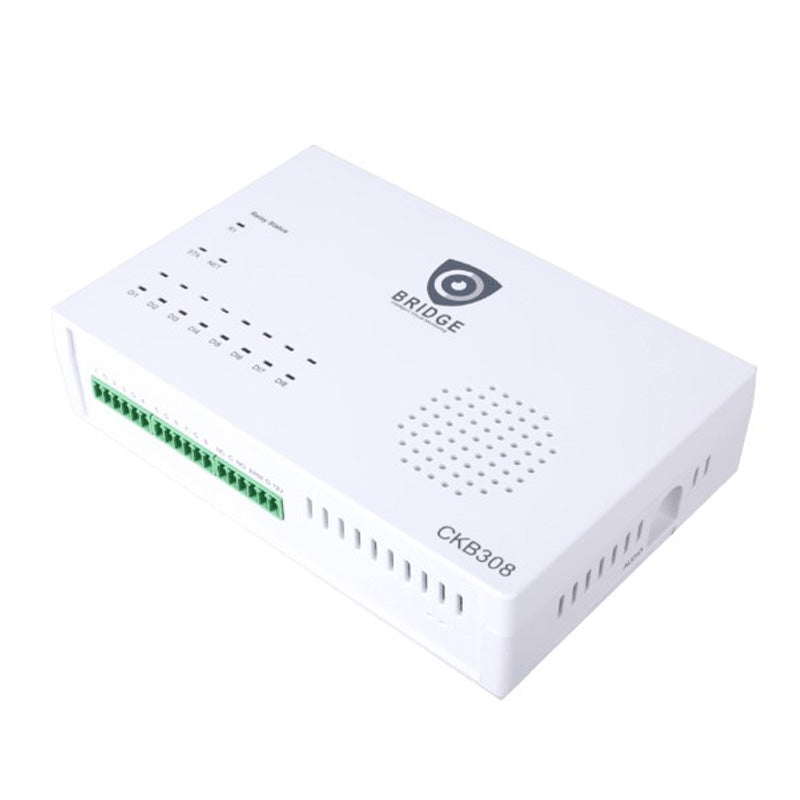

CHeKT CKB-308 8ch Visual Verification Bridge for Professionally Monitored Security Video Control Systems

The CKB-308 8-Channel Visual Security Bridge is POE powered video security panel for security professionals to connect cameras, alarm sensors and video analytics for cloud-based visual security and video alarm monitoring.

-8 Camera Channels

-Event Triggers; Camera Analytics, Physical Sensors, & API Events

-Pair Cameras with Existing Alarm Panel Zones

-1 Normally Open and Closed Controllable Relay Output

-Arming & Disarming Options

-Converts Video Analytics Alarm Signals for Central Station Response

-IP Audio Integration for Audio Messaging

-Line-level Analog Audio Capability

-End-User Mobile App

-POE Power or 12v DC

General

Model CKB308 Digital Alarm Inputs 8 Physical Input Zones Relay Output 1 x Relay Output (NO/NC) – 100mAmps @24v DC Audio Output 1/8″ (3.5mm) Line Level Output (non-amplified)

IP Audio Integrations

Reset Button Bridge Factory Reset

LED Indicators

STA (Status) Bridge Power – On (Armed Status – Red[Armed] ; Green[Disarmed]) Net (Network) Network Connection Indicator DI (Alarm 1-4) Physical Input Indicators (Red – Alarm, Off – Normal)

Operational

Video Source Recommendations IP devices with available RTSP Stream. Video Source Requirements:~ D1 Resolution: 720×480 & 6 FPS Video Compression Support H.264 Video Authentication Options ONVIF, RTSP, HTTP Video Transmission Security TLS/SSL Encryption to Cloud and Central Station Video Analytics Support ONVIF Event Messaging Protocol, API Calls Event Triggers Physical Input Zones, ONVIF Event Topics, AI via Local API Alarm Events Alarm Communication via IP to Central Station Automation Audio In Available on supported cameras with audio in the video stream

Network

Ethernet RJ-4510/100/BASE-T Connection EncryptionSecurity TLS/SSL (Secure Socket Layer)

Environmental & Electrical

Operating Temperature /Humidity 0C ~ +40°C (32°F ~ 85°F) / Less than 85% RH Bridge Power Source POE & 12v DC Power Consumption 800mAmps Peak Physical Input Zones Input Voltage Range: 0-12v DC (All Ground Termals Are Common) Relay Output max 100mApms @24v DC Arming Input Input Voltage Range: 0-12v DC (All Ground Termals Are Common) – 1.87v ADC Reading with no external Connection

Scheduled Arming

Mobile App Arming

API Arming

Mechanical

Color / Material White / Polycarbonate (PC) Product dimensions / weight 82mm x 100.7mm x 36mm (3.2″ x 3.9″ x 1.4″), Weight : 170g (0.4lb)
