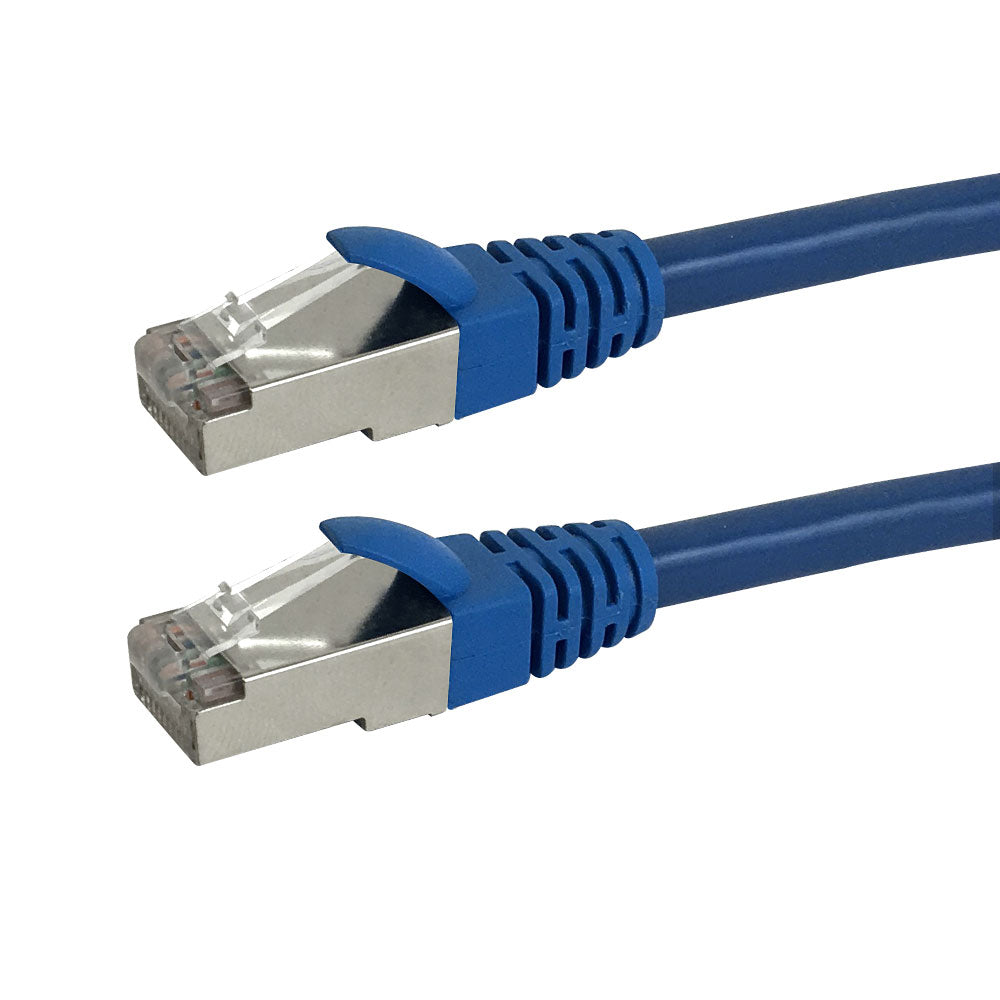

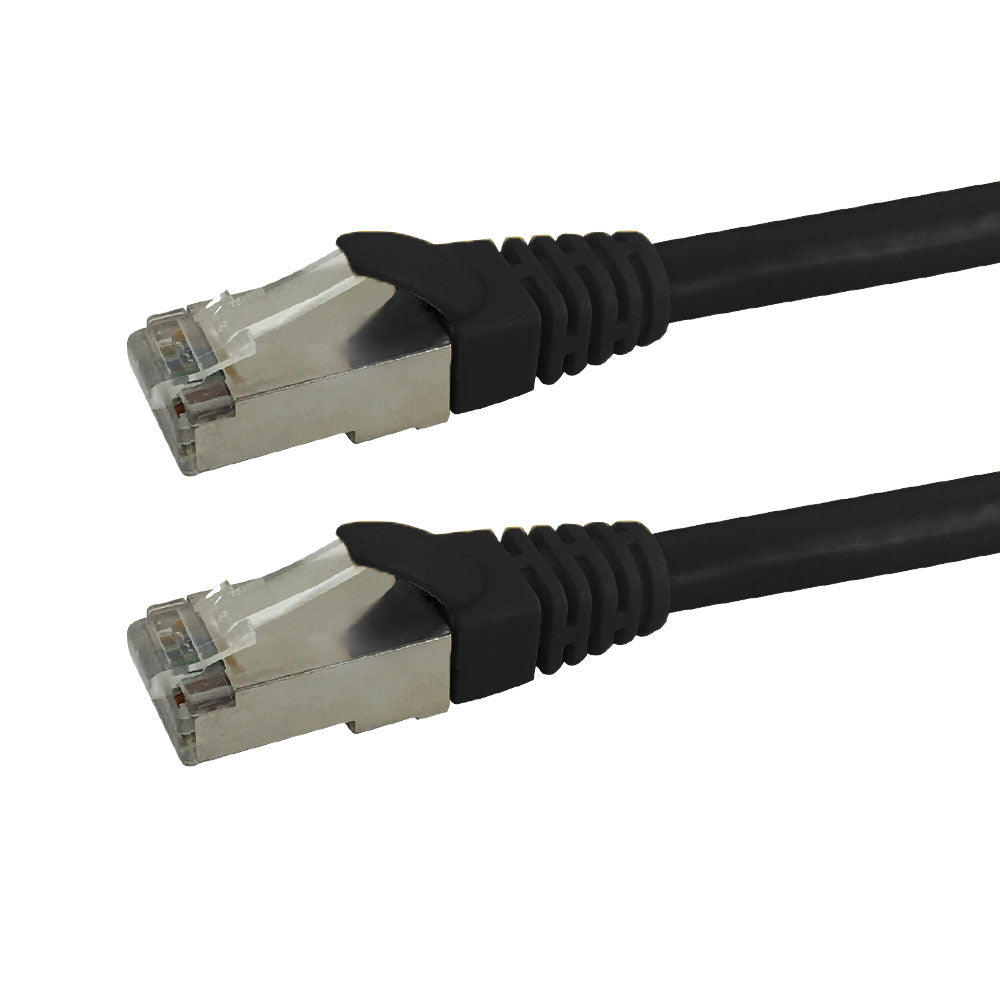

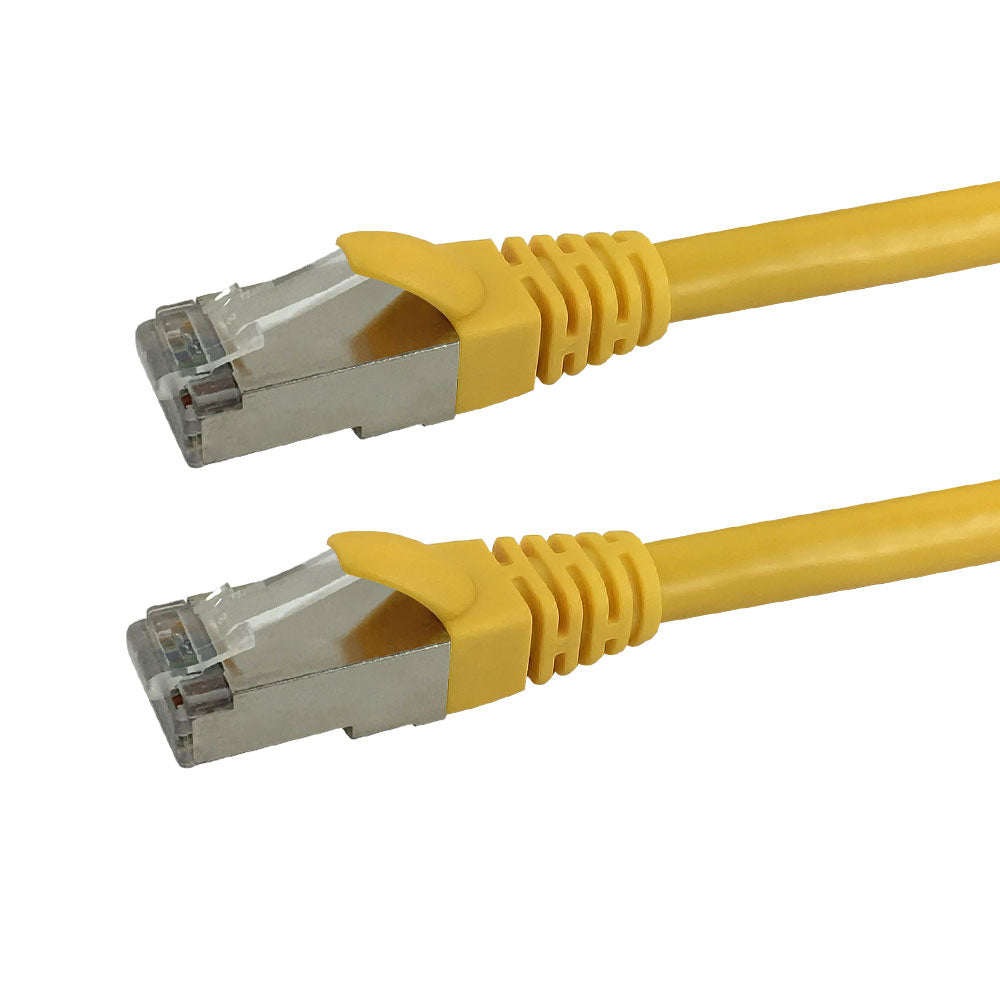

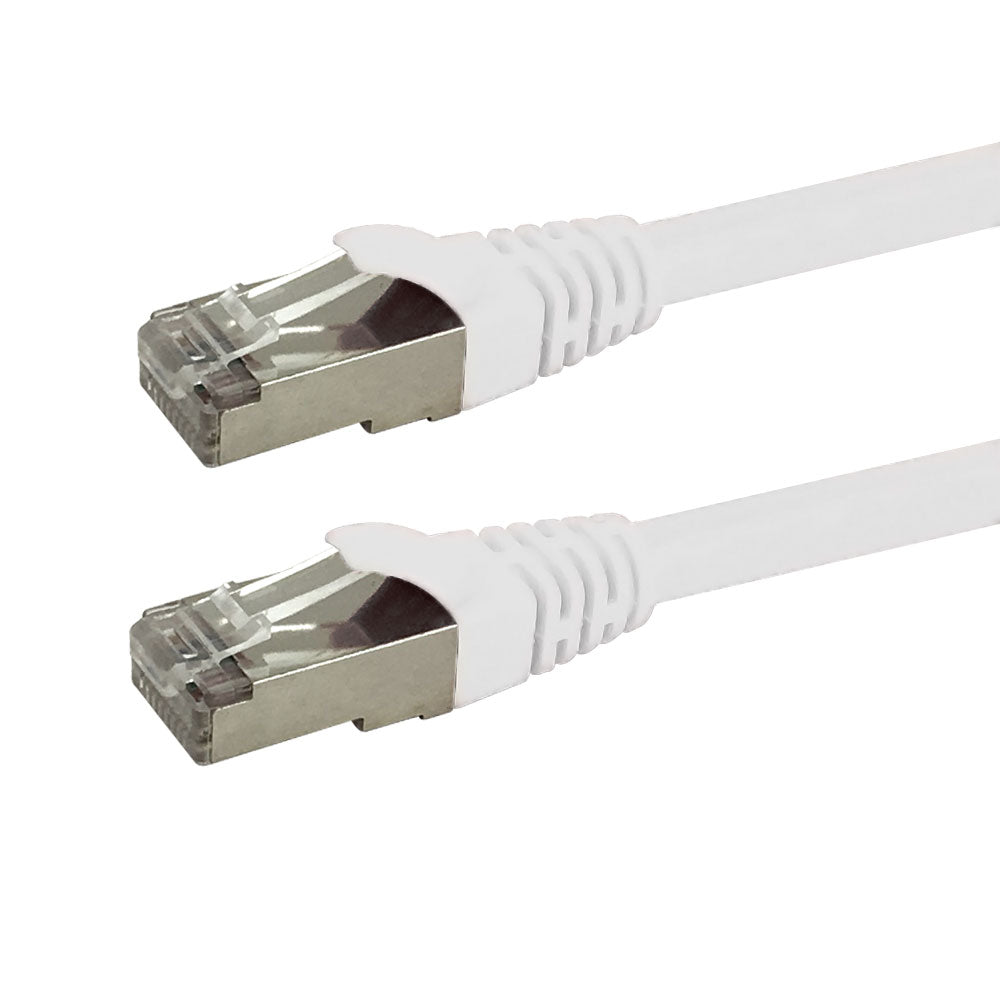

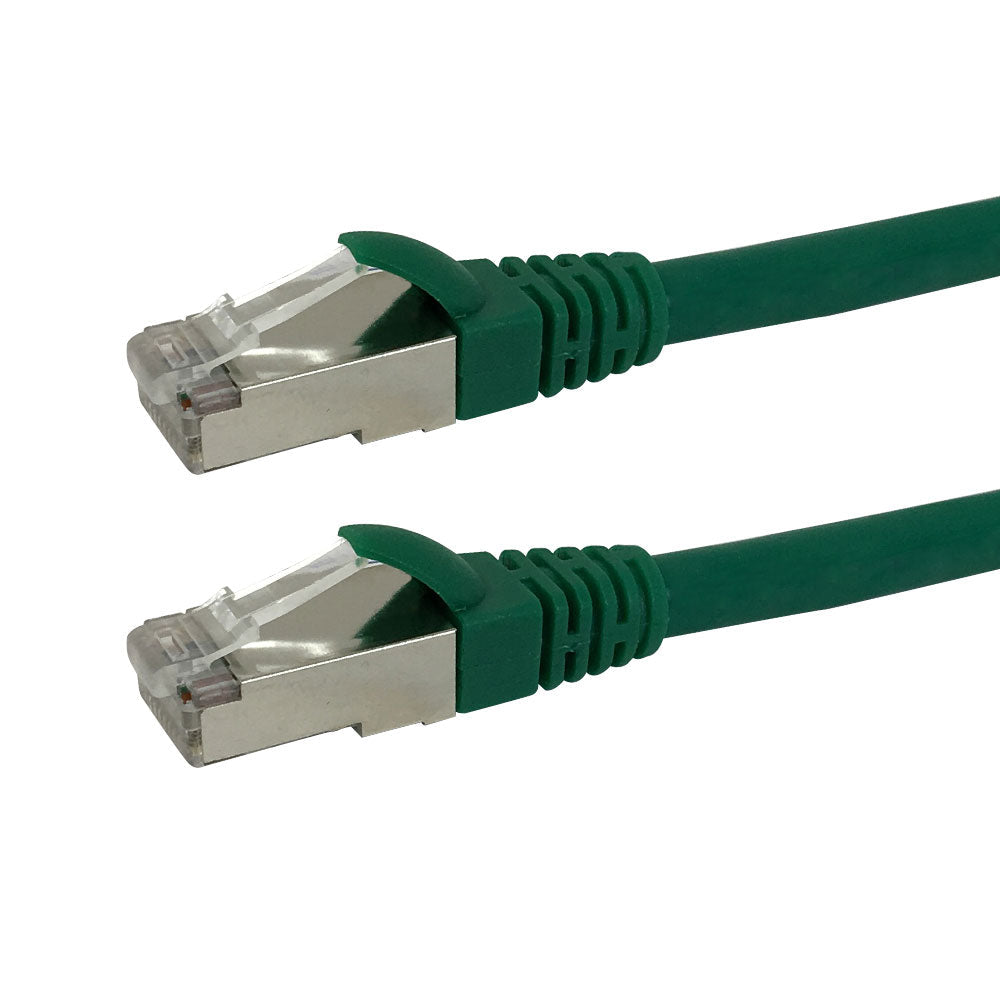

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
|
Physical Characteristics
|
||
|---|---|---|
| Colors Available | Black/Blue/Green/Grey/Red/White/Yellow | |
| Connector Plating | Gold Plated 50 Micron | |
| Cable Diameter | 6.7mm | |
| Wire Gauge | 24AWG Solid |
|
| Shielding | F/UTP (100% Overall Mylar Foil Shielded Pairs) |
|
| Pairs | 4 | |
| Fire Rating | CMR Riser Rated | |
| Color Code | 568B | |
| Temperature Rating | 75 Deg C | |
| Jacket Type | PVC | |
|
Connectors
|
||
| Connector A | RJ45 Long Body Male | |
| Connector B | RJ45 Long Body Male | |
|
Performance
|
||
| Frequency | 350 MHz | |
|
Approvals
|
||
| c(ETL)us | Compliant - Cable | |
| NEC Compliance | Article 800 CMR - Cable | |
| Flammability Standard Compliance (Cable) |
Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021] |
|
|
ANSI/TIA 568.C.2 ANSI/TIA 568.D |
Compliant | |
| ISO/IEC 11801-1 IEC61156-5 | Compliant | |
|
Environmental
|
||
| RoHS | Compliant | |
| Reach | Compliant | |
|
Package Information
|
||
| Package Quantity | 1 | |
|
Warranty Information
|
||
| Warranty | Limited Lifetime | |
