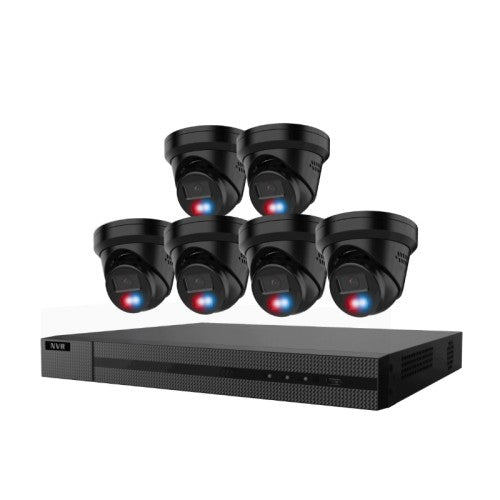

Ai Guarding IP-KIT8662-BR-BLACK 8 Channel 8MP NVR with 2TB HDD and 6pcs Active Deterrence 6MP Smart Hybrid Light Fixed Black Turret Camera Kit

- One 8-channel PoE NVR with decoding up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p

- Six 6MP Smart Hybrid Light fixed turret network cameras with efficient H.265+ compression technology

- 2TB Pre-installed HDD

- 1 network cable for NVR

- Support audio and siren alarm with red and blue flashing light

Number of Channels 8

Human/Vehicle Analysis 4ch

Resolution Up to 8 MP

Two-Way Audio 1-Channel, RCA (2 V p-p, 1 Kilohm)

Bandwidth Incoming: 40 Mb/s Outgoing: 80 Mb/s

Recording Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

HDMI Output Resolution 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768

VGA Output Resolution 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768

Audio Output 1-Channel, RCA (Linear, 1 Kilohm)

Decoding Formats H.265+, H.265, H.264+, H.264

Playback Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Remote Connection 32

Synchronous Playback 8 Channels

Decoding Capability 1 Channel at 8 MP 3 Channel at 4 MP 6 Channels at 1080p

Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

SATA 1 x SATA Interface (Up to 8 TB capacity)

Drive Bays 2

HDD Capacity 8 TB each

HDD Included 2TB

Network Interface 1 x RJ45 100M Self-Adaptive Ethernet Port

USB 2 x USB 2.0

PoE Interface 4 x 100M RJ45 Self-Adaptive Ethernet Ports

PoE Power ≤50 W

PoE Standard IEEE 802.3af/at

Power Supply 48 VDC 2.5A

Power <80 W

Power Consumption ≤15 W (Without HDD & Enabling PoE)

Operating Temperature 14 to 131°F / -10 to 55°C

Operating Humidity 10 to 90%

Rack Units 1 RU

Dimensions 15.2 x 12.4 x 2" / 385 x 315 x 52 mm

Weight 5.7 lb / ≤2.6 kg (Without HDD)

Camera Image Sensor 1/2.4", 6 MP Progressive Scan CMOS

Minimum Illumination Color: 0.005 Lux (f/1.6 with AGC ON) B&W: 0 Lux

Shutter Speed 1/100,000 to 1/3 Seconds

Day/Night IR Cut Filter

Supplement Light Type IR,White Light, Red and Blue Light (Flashing Light)

Digital Noise Reduction 3D-DNR

WDR Digital Wide Dynamic Range

3-Axis Adjustment Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360°

Lens 2.8mm

Lens Mount M12

Aperture f/1.6

Field of View Horizontal: 105° Vertical: 55° Diagonal: 127°

IR Range 30 m

IR Wavelength 850 nm

Video Compression Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265/H.264/MJPEG

H.264 Profile Baseline Profile,Main Profile,High Profile

Video Bit Rate 32 kb/s to 16 Mb/s

Region of Interest One Fixed Region for Main Stream and Sub-Stream

Maximum Resolution 3200 x 1800

Frame Rate Main Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 Sub-Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720

Image Enhancement BLC, HLC, 3D-DNR

Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switching Auto
