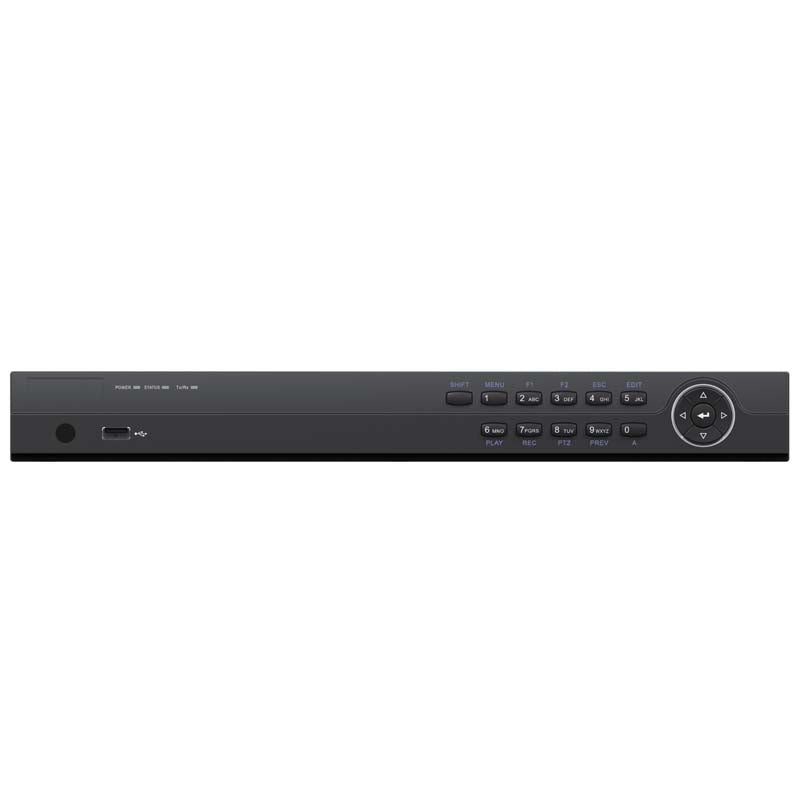

8ch PoE 1U K Series AcuSense 4K H.265+ NVR

-Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces

-H.265+/H.265/H.264+/H.264 video formats

-Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity

-Up to 80 Mbps incoming bandwidth

-Adopt Hikvision Acusense technology to minimize manual effort and security costs

Smart Function

All channels support Motion Detection 2.0 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability

H.265+ compression effectively reduces the storage space by up to 75% Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output

Provide independent HDMI and VGA outputs HDMI video output at up to 4K resolution

Storage and Playback

Up to 2 SATA interfaces for HDD connection (up to 16 TB capacity per HDD) 8-ch synchronous playback

Network & Ethernet Access

8 independent PoE network interfaces 1 self-adaptive 10/100/1000 Mbps Ethernet interface GuardingVision for easy network management

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

1-ch human face capture

Face Picture Comparison

4-ch face picture comparison alarm

Motion Detection 2.0

Human/Vehicle Analysis

8-ch

Video and Audio

IP Video Input

8-ch

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

160 Mbps

HDMI Output

1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

N/A

Audio Output

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Two-Way Audio

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding Format

H.265/H.265+/H.264+/H.264

Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

8-ch

Decoding Capability

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface

8, R
