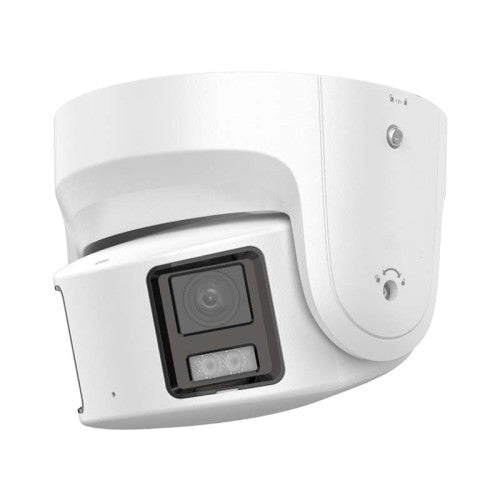

8 MP 4K Panoramic 180° ColorVu 4.0mm X2 Fixed Turret IP Camera

-High quality imaging with 8 MP resolution

-One image that presents all the scenes covered by the camera

-24/7 colorful imaging

-Efficient H.265+ compression technology

-Clear imaging against strong back light due to 130 dB WDR technology

-Focus on human and vehicle classification based on deep learning

-Active strobe light and audio alarm to warn intruders off

-Water and dust resistant (IP67)

Camera

Image Sensor

2 × 1/1.8" Progressive Scan CMOS

Max. Resolution

5120 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time

1/3 s to 1/100, 000 s

Angle Adjustment

Pan: -30° to 30°, tilt: -75° to 75°

Lens

Lens Type

Fixed focal lens, Dual lens: 4 mm

Focal Length & FOV

Horizontal FOV: 180° ± 10° Vertical FOV: 44°

Lens Mount

M16

Iris Type

Fixed

Aperture

F1.0

Depth of Field

3.6 m to ∞

DORI

DORI

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)

Sub-Stream

When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region(s) for main stream

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication
