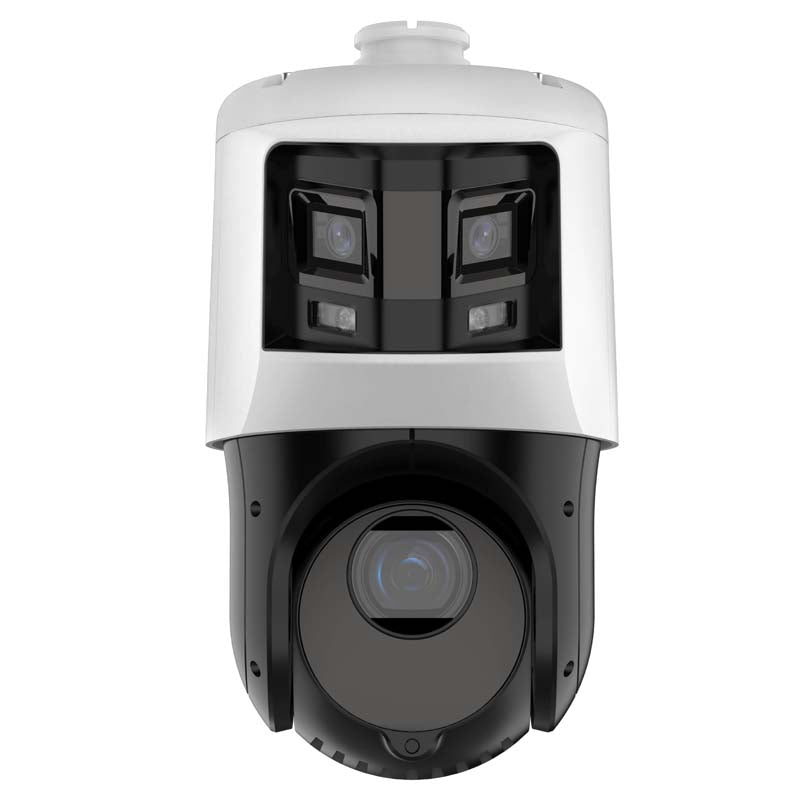

6MP+4MP TandemVu 25X Optical Zoom PTZ ColorVu & IR Acusense Panoramic Network Speed Dome

-Captures a large area and great details at the same time

-High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP

-Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

-Secures an expansive area with 25× optical zoom and 16× digital zoom

-Expansive night view with up to 100 m IR distance & 30 m white light

-Supports 12V DC & PoE+

-Focuses on human and vehicle targets classification based on deep learning

Camera

Image Sensor

[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS

Max. Resolution

[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440

Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30,000 s

Slow Shutter

Yes

Day & Night

ICR

Zoom

25 × optional, 16 × digital

Lens

Focal Length

[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical

FOV

[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus

Auto, semi-auto, manual

Zoom Speed

Approx. 3.6 s

Aperture

[Bullet channel]: F1.0; [PTZ channel]: F1.6

Illuminator

Supplement Light Type

[PTZ channel]: IR; [Bullet channel]: White Light

Supplement Light Range

[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan

Yes

Preset Freezing

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Power-off Memory

Yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

[Bullet channel]

50 Hz：25 fps（3632 × 1632，3680 × 1656）

60 Hz：30 fps（3632 × 1632，3680 × 1656）

[PTZ channel]

50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

Sub-Stream

[Bullet channel]

50 Hz：25 fps（1200 × 536，960 × 432）

60 Hz：30 fps（1200 × 536，960 × 432）

[PTZ channel]

50 Hz：25 fps（704 × 576，640 × 480，352 × 288）

60 Hz：30 fps（704 × 480，
