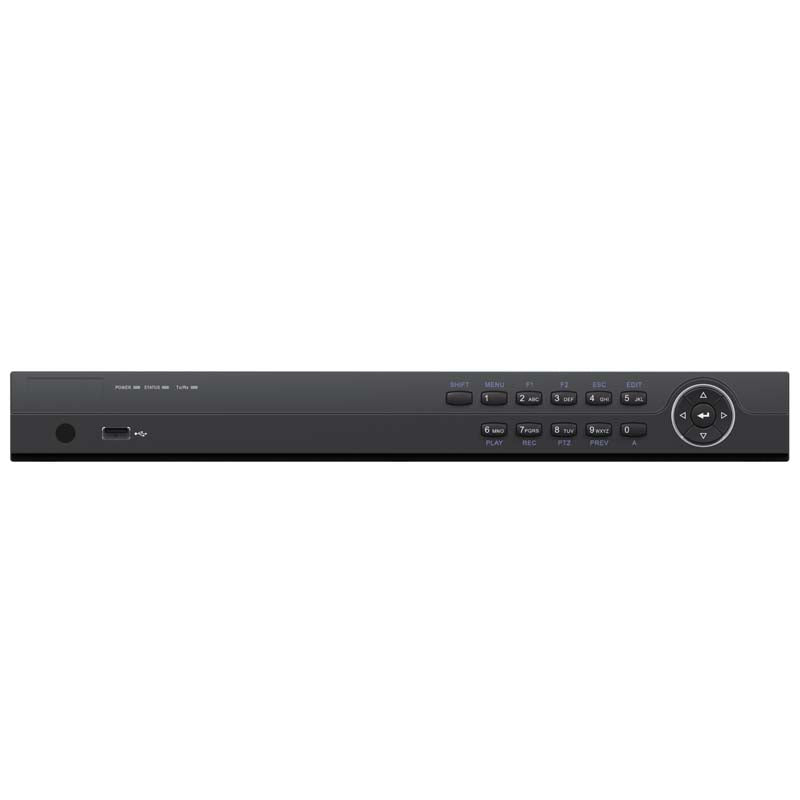

4ch PoE 1U K Series AcuSense 4K H.265+ NVR

-Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces

-H.265+/H.265/H.264+/H.264 video formats

-Up to 1-ch@12 MP or 2-ch@8 MP or 5-ch@4 MP or 10-ch@1080p decoding capacity

-Up to 40 Mbps incoming bandwidth

-Adopt Hikvision Acusense technology to minimize manual effort and security costs

Smart Function

Smart search for the selected area in the video, and smart playback to improve the playback efficiency

Professional and Reliability

H.265+ compression effectively reduces the storage space by up to 75% Adopt stream over TLS encryption technology which provides more secure stream transmission service

Model

NR33P4-4D

Intelligent Analytics

AI by Device

Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

Face Attributes

N/A

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

1-ch, 8 MP

Face Picture Comparison (Captured from Camera)

2-ch

Motion Detection 2.0

By Device

All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

By Camera

All channels

Perimeter Protection

By Device

1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

By Camera

All channels

Video and Audio

IP Video Input

4-ch

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI1/VGA simultaneous output

CVBS Output

N/A

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format

H.265/H.265+/H.264+/H.264

Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

4-ch

Decoding Capability

AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/10-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

Remote Connection

128

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network Protocol

TCP/IP, DHCP, IPv
