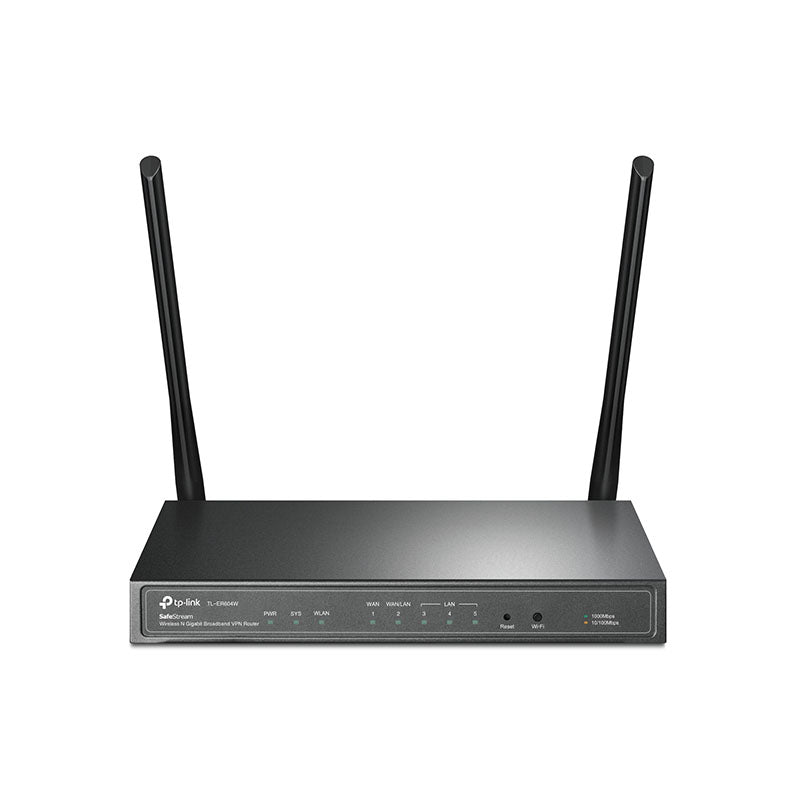

TP-Link TL-ER604W SafeStream Wireless N Gigabit Broadband VPN Router_Old Version
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
| SECURITY | |
|---|---|
| Application Control | IM, P2P, Web IM, Web SNS, Web Media Protocol/Proxy Blocking |
| Filtering | MAC Filtering URL/Keywords Filtering Web Content Filtering (Java, ActiveX, Cookies) Local Access Control |
| ARP Inspection | Sending GARP Packets ARP Scanning by WAN/LAN IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN CSRF Defense |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.11b/g/n, 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP, SSL, HTTPS |
| Interface | 1 Gigabit WAN port 3 Gigabit LAN ports 1 Gigabit WAN/LAN port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) 1000BASE-T: UTP category 5, 5e cable (Max 100m) |
| Fan Quantity | Fanless |
| Button | Power On/Off, Wi-Fi On/Off, Reset |
| Power Supply | External Power Adapter (output: 12VDC/1.0A) |
| Flash | 8MB |
| DRAM | 64MB (DDRII) |
| LED | PWR, SYS, WLAN, WAN, WAN/LAN, LAN |
| Dimensions ( W x D x H ) | 8.2 x 5.0 x 1.0 in.(209 x 126 x 26 mm) |
| Antenna | 2 detachable 5dBi antennas |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 10000 |
| NAT Throughput | 160Mbps |
| IPsec VPN Throughput | 38Mbps |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4-2.4835 GHz |
| Transmit Power | <20dBm (EIRP) |
| Wireless Functions | Enable/Disable wireless radio, WDS bridge, WMM, Wireless statistics |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Guest Network | Yes |
| Multi-SSID | Up to 8 SSIDs |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server/Client DHCP Reservation |
| Switch Setting | Port Mirror Rate Control Port Configuration Port VLAN |
| IPTV | IGMP Proxy IGMP Snooping |
| ADVANCED FUNCTIONS | |
|---|---|
| Load Balance | Intelligent Load Balance Policy Routing Protocol Binding Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-nets NAT Virtual Server Port Triggering UPnP FTP/H.323/SIP/IPsec/PPTP ALG |
| Routing | Static Routing Dynamic Routing (RIP v1/v2) |
| System Mode | NAT, Non-NAT, Classical Routing |
| Traffic Control | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth Time-scheduled Policy IP-based Session Limit |
| VPN | |
|---|---|
| IPsec VPN | 30 IPsec VPN Tunnels LAN-to-LAN and Client-to-LAN IPsec VPN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | 8 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption NetBIOS passthrough |
| L2TP VPN | 8 L2TP VPN Tunnels L2TP VPNServer/Client L2TP over IPsec NetBIOS passthrough |
| VPN Pass-through | IPsec (ESP), PPTP, L2TP |
| MANAGEMENT | |
|---|---|
| Service | PPPoE Server E-Bulletin Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Web-based Management Interface Remote Management Export & Import Configuration NTP Synchronize Syslog Support SNMP IP NAT Table |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | SafeStream Wireless N Gigabit Broadband VPN Router TL-ER604W Power Adapter RJ45 Ethernet Cable Quick Installation Guide Resource CD |
| System Requirements | Microsoft® Windows® 8/7/Vista/XP/2000, MAC® OS, Linux-based operating System |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
