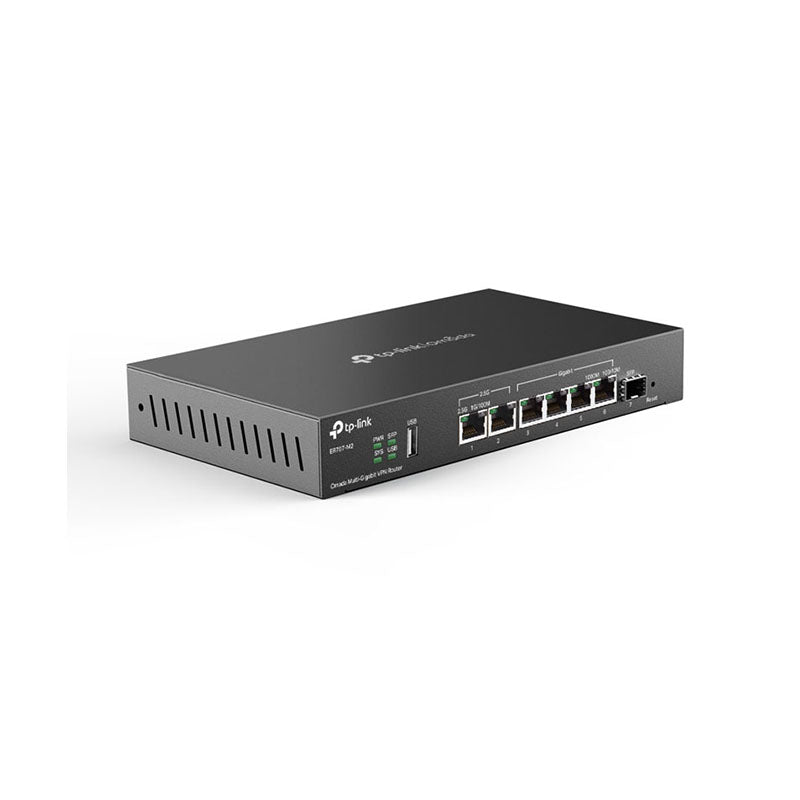

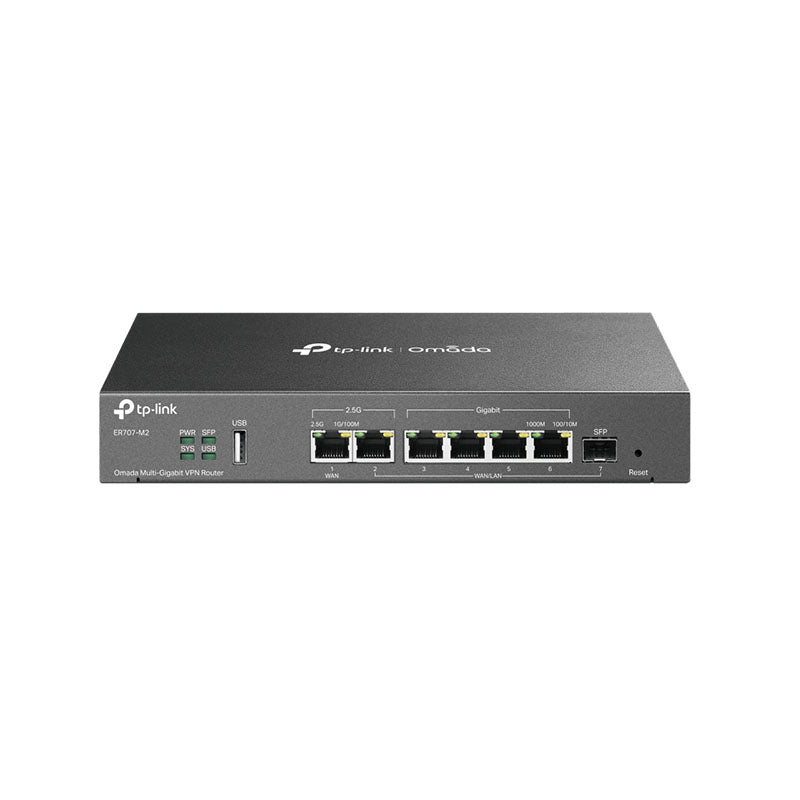

TP-Link ER707-M2 Omada Multi-Gigabit VPN Router

SECURITY Access Control Source/Destination IP Based Access Control Filtering WEB Group Filtering§ URL Filtering Web Security§ ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q， IEEE802.3bz • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN Interface • 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Fan Quantity Fanless Button Reset Button Power Supply 12V/1.5A Adapter PoE Budget - Flash 128MB NAND DRAM 1 GB DDR4 LED PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) Protection 4 kV surge protection Enclosure Steel Mounting Desktop/Wall Mounting Max Power Consumption 14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected) PERFORMANCE Concurrent Session 500,000 New Sessions /Second 4,200 NAT (Static IP) 2364.45 Mbps / 2343.28 Mbps NAT(DHCP) 2364.24 Mbps / 2326.21 Mbps NAT(PPPoE) 2350.93 Mbps / 2125.83 Mbps NAT (L2TP) 1249.04 Mbps / 831.12 Mbps NAT (PPTP) 1169.23 Mbps / 1175.52 Mbps IPsec VPN Throughput ESP-MD5-AES256: 537.12 Mbps ESP-SHA1-AES256: 754.65 Mbps L2TP VPN Throughput Unencrypted: 1442.65 Mbps Encrypted: 346.43 Mbps SSL VPN Throughput 142.99 Mbps 66 Byte Packet forwarding rate 1832.69 Mbps / 1741.84 Mbps 1,518 Byte Packet forwarding rate 2461.18 Mbps / 2457.32 Mbps BASIC FUNCTIONS WAN Connection Type • IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server/Client • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* IPv6 WAN Connection VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy ADVANCED FUNCTIONS Advanced Routing • Static Routing • Policy Routing Bandwidth Control • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP Security • Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN

• Filtering Web Group Filtering URL Filtering Web
