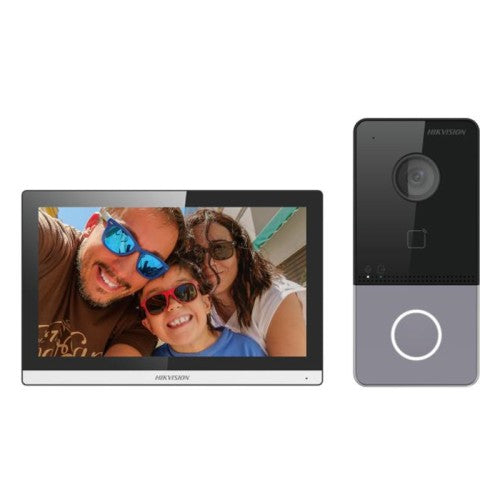

Hikvision DS-KIS613-P IP Video 7'' TFT Indoor Station and 2MP Door Station with Rain Shield Intercom Kit

IP Video Intercom Kit Indoor station:

7-inch touch screen, user friendly interface, Plug & Play

Indoor station: Easy, cost-efficient installation, Wifi & POE Supported

Indoor station: Receives video call and unlocks on mobile App anywhere, any time

Indoor station: Supports live view of up to 16 IP cameras

Door station: Hight quality imaging with 2MP resolution

Door station: Easy, cost-efficient installation, Wifi & POE Supported

Door station: Easy configuration through WEB interface

Door station: IP65 water resistant, preventing water ingress for outdoor use

Door Station: Built-in M1 Reader Module

Door station/System parameters

Operation system Embedded Linux Operation System

Flash 32 MB

RAM 256MB

Door station/Video parameters

Camera 2MP HD camera

Night vision IR supplement

WDR True WDR

Field of viewHorizontal: 131° Vertical: 78°

Video Compression Standard H.264

Stream Main stream: 1080p, 720p Sub stream: 640 x 480

Door station/Audio parameters

Audio input Built-in omnidirectional microphone

Audio output Built-in loudspeaker

Audio quality Noise suppression and echo cancellation

Audio compression standard G.711 U

Audio compression Rate 64 Kbps

Door station/Network parameters

Network protocol TCP/IP, RSTP

Wired network 10/100 Mbps Self-adaptive Ethernet

Door station/Device interfaces

Network interface 1

RS-485 1

Alarm input 4

Lock control 1

Exit button 1

Door contact 1

Power interface 1

TAMPER 1

Door station/General

Power consumption ＜ 10 W

Working temperature -40° C to 55° C(-40° F to 131° F)

Working humidity 10% to 95%

Dimension 138 mm × 65 mm × 27 mm

Installation Surface mounting

Protection level IP65

Indicator 2

Power supply IEEE802.3af, standard PoE or 12 VDC

Indoor station/System parameters

Operation system Embedded Linux operation system

Memory 128 MB

Flash 32 MB

Indoor station/Display parameters

Display screen 7-inch colorful TFT screen

Display resolution 1024 × 600

Operation method Capacitive touch screen

Indoor station/Audio parameters

Audio input Built-in omnidirectional microphone

Audio output Built-in loudspeaker

Audio quality Noise suppression and echo cancellation

Audio compression standard G.711 U, G.711 A

Audio compression Rate 64 Kbps

Indoor station/Network parameters

Wired network 10/100 Mbps self-adaptive

Wireless network Wi-Fi 802.11 b/g/n

Protocol TCP/IP, SIP, RTSP

RS-485 1 RJ-45 10/100 Mbps self-adaptive

Indoor station/Device interfaces

RS-485 1

Alarm input 8-ch alarm inputs

Alarm output 2

TF card Max to 128GB

Indoor station/General

Power consumption ≤ 8 W

Working temperature -10 °C to 50 °C (14 °F to 122 °F)

Working humidity 10% to 90%

Dimension (L x W x H) 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
