Overview

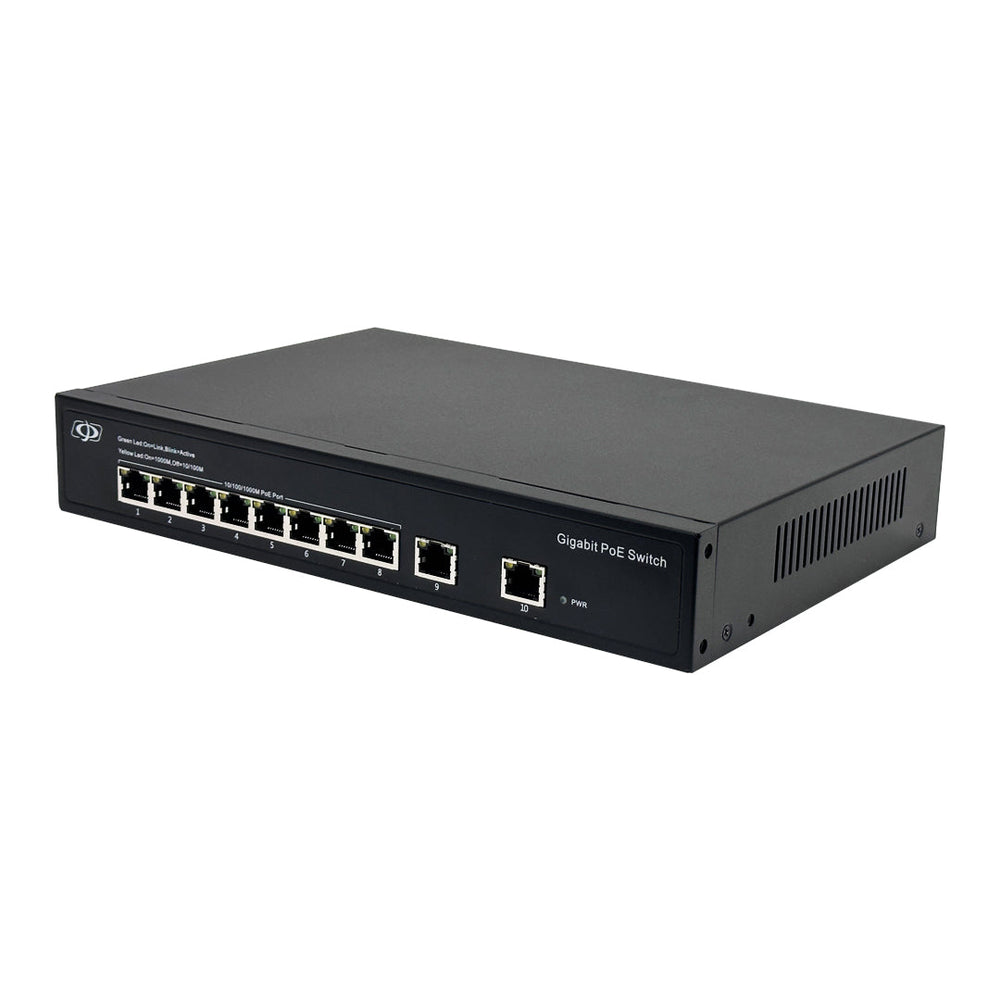

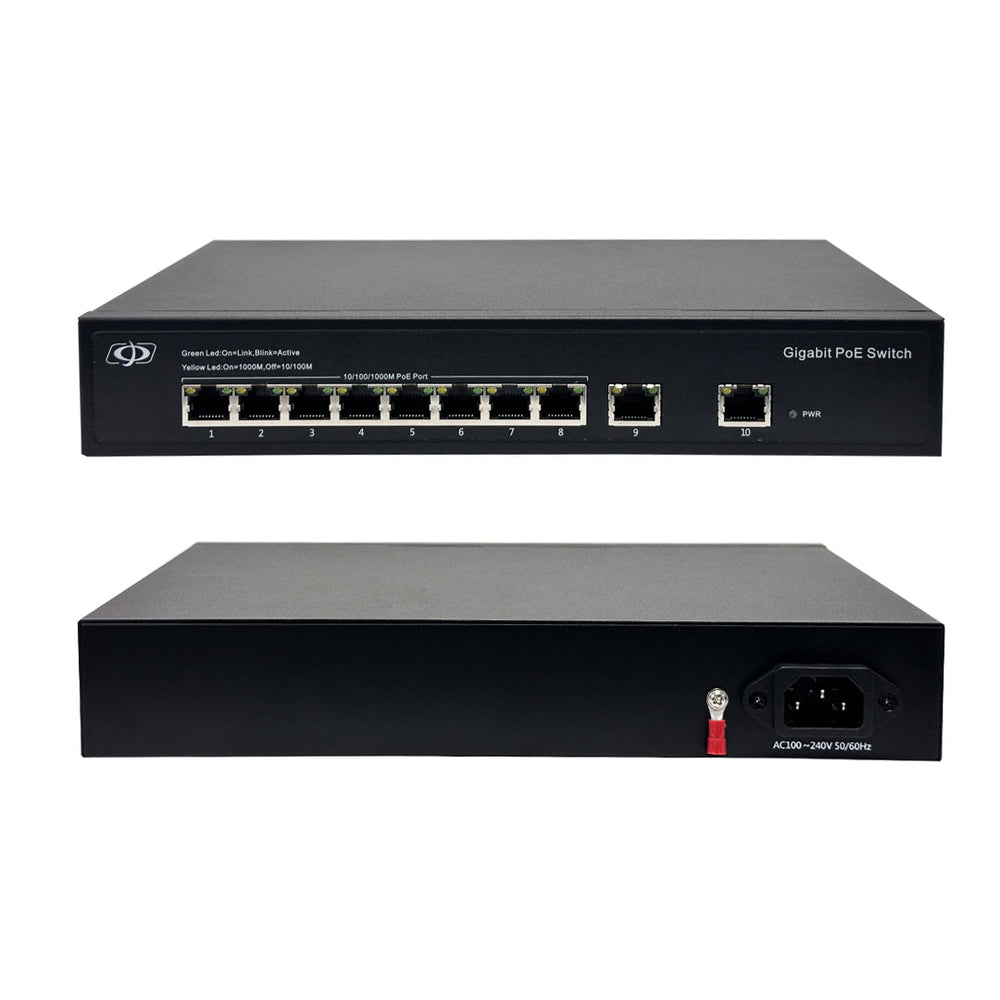

This is a 8+2-port gigabit Ethernet switch, providing 8x 10/100/1000Mbps PoE+ ports, and two RJ45 uplink ports. The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- 8 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
- Ports 1-8 supports IEEE802.3af/at - Max. 30W
- 2 x RJ45 Gigabit Uplink Ports
- Power Budget: 120W
- Support auto MDI/MDIX
- Network Topology: Star/Bus/Tree Topology
- Solid high-strength metal shell
Application
Specifications
|
Physical Characteristics
|
||||
|---|---|---|---|---|
| Dimensions | 270 x 44 x 181 mm | |||
| Shell | Metal Material, Fan-Free Design | |||
| Operating Temperature | -10°C to 50°C | |||
| Storage Temperature | -40°C to 70°C | |||
| Operating Humidity / Storage Humidity |
10% to 90% (no condensation) | |||
| Thermal Method | Natural cooling | |||
| Power Supply | 100 - 240 VAC ~ 50/60Hz | |||
| Total Power Consumption | ≤150W | |||
| Main Board Power | <6W | |||
| Ports |
8 x Gigabit PoE+ ports 2 x Gigabit RJ45 port - Uplink |
|||
| Port Type | RJ45 port, Full duplex, MDI/MDI-X adaptive | |||
| PoE Power Supply |
PoE Standard: IEEE 802.3af, IEEE 802.3at |
|||
| Cable Type | Twisted-pair: 0-100m | |||
| Network Topology |
Ring Topology: Not Support Star/ Bus/ Tree Topology: Support |
|||
|
Performance
|
||||
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z | |||
| MAC Address Table | 4K | |||
| Forwarding Delay | <10us | |||
| Transfer Mode | Store-and-forward switching | |||
| Switching Capacity | 20 Gbps | |||
| Packet Forwarding Rate | 14.88 Mpps | |||
| MDI/MDIX | Support | |||
| Jumbo Frame | 9Kbytes | |||
| Internal Cache/ Buffer | 2 Mbits | |||
| MTBF | 100000 hours | |||
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (6/2KV) (10/700us) | |||
| DIP | IEC 61000-4-11 Level 3 (10V) | |||
| ESD | IEC 61000-4-2 Level 4 (8K/15K) | |||
| Free Fall | 0.5m | |||
|
Approval
|
||||

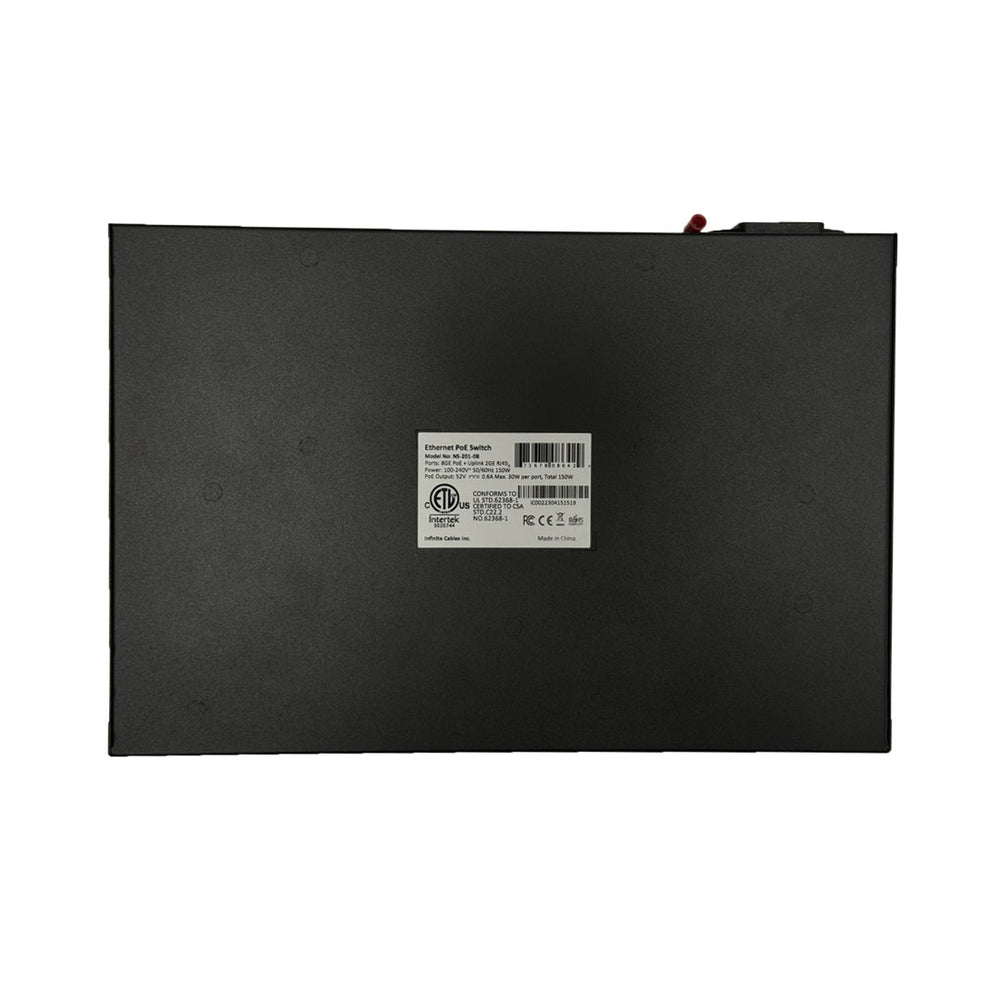

| c(ETL)us |
Compliant | |||
|
Environmental
|
||||
| RoHS | Compliant | |||
| FCC, CE | Compliant | |||
|
Packaging Information
|
||||

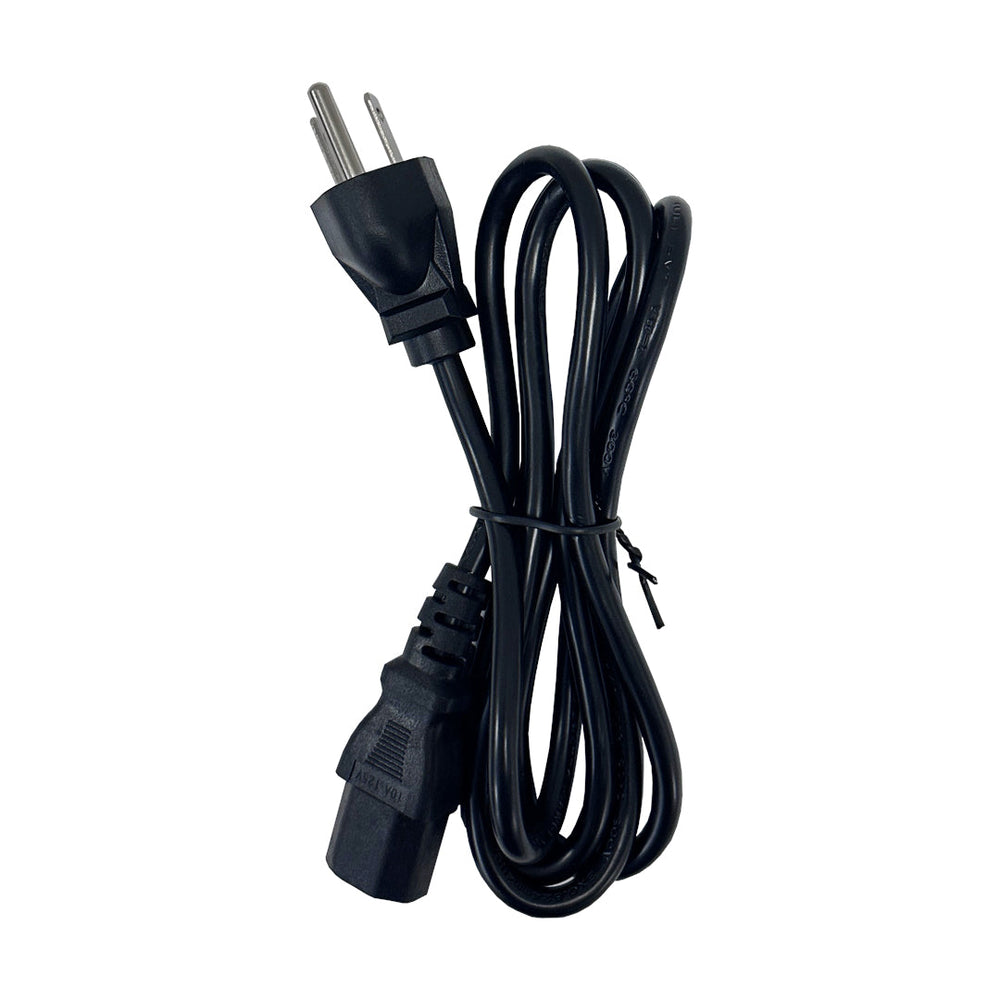

| Package Quantity | 1x Ethernet Switch 1x 5ft power cord 1x Manual |
|||
| Product Weight | 2.8 lbs | |||
