Overview
This is a 4+2-port gigabit Ethernet switch, providing 4x 10/100/1000Mbps PoE+ ports and 2x 10/100/1000Mbps non-PoE ports. The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- Complies with IEEE802.3af/at Standard
- Supports PoE Power up to 30W for each PoE port
- Auto detect power device
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control
- Line-speed forwarding, intelligent identification
- Supports storage-and- forward for Data exchange
- QoS control, Port1-4 port according to 1: 2: 4: 8 configuration
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes
- Metal shell, fanless
Application
Specifications
| Physical Characteristics | |
|---|---|
| Product Dimensions | 168 x 93 x 32mm |
| Shell | Metal Material, Fan-Free Design |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Indicator | PWR, LNK/ACT, PoE |
| Power | |
| PoE output-port | Max 30W |
| PoE Total Budget | 65W |
| RJ45 PoE Power Supply | Mode A Anode1/2 Cathode3/6 |
| Power Input | 100-240VAC~50/60Hz 1.8A |
| Power Output | 54.5V/1.32A |
| Surge Protection | Differential mode±2KV，Common mode ±4KV |
| MTBF | >50000 hours |
| Electrostatic standard | Contact ±6KV,Air ±8KV |
| Interface | |
| Ports | 6*10/100/1000Mbps RJ45 port |
| PoE Ports | 1 ~ 4 |
| Performance | |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az |
| PoE standard | IEEE802.3af/at |
| Network media | 10BASE-T: UTP category 3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-T: UTP category 5, 5e cable（≤100m） |
| MAC Address Table | 4K，Automatic study, automatic updates |
| Transfer Mode | Store-and-forward switching |
| Bandwidth | 12 Gbps |
| Packet Forwarding Rate | 8.9Mpps |
| Jumbo Frame | 9K Bytes |
| Internal Cache/ Buffer | 1.5M bit |
| Approval | |
| c(ETL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| FCC | Compliant |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 1 |

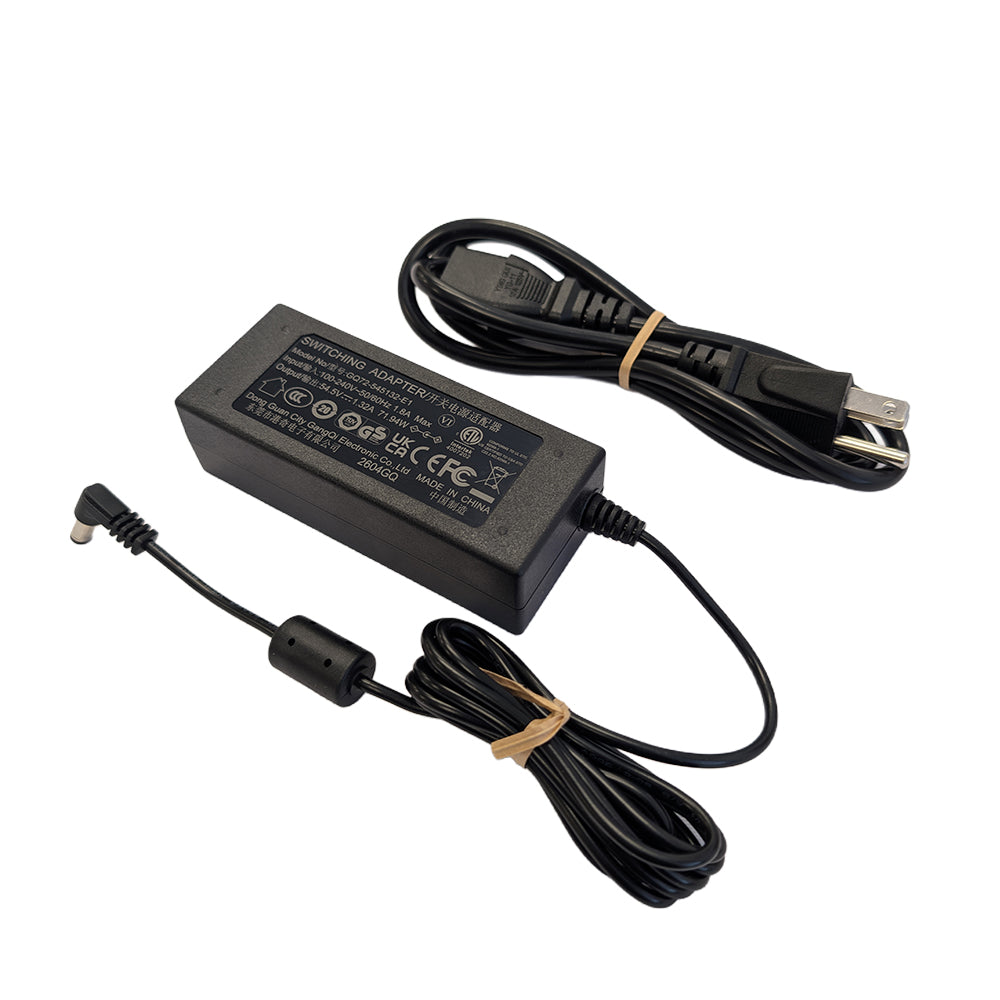

| Content | PoE Switch x 1 User Guide x1 Power Adapter x1 Power Cord x 1 |
| Product Weight | 2.10 lbs |
