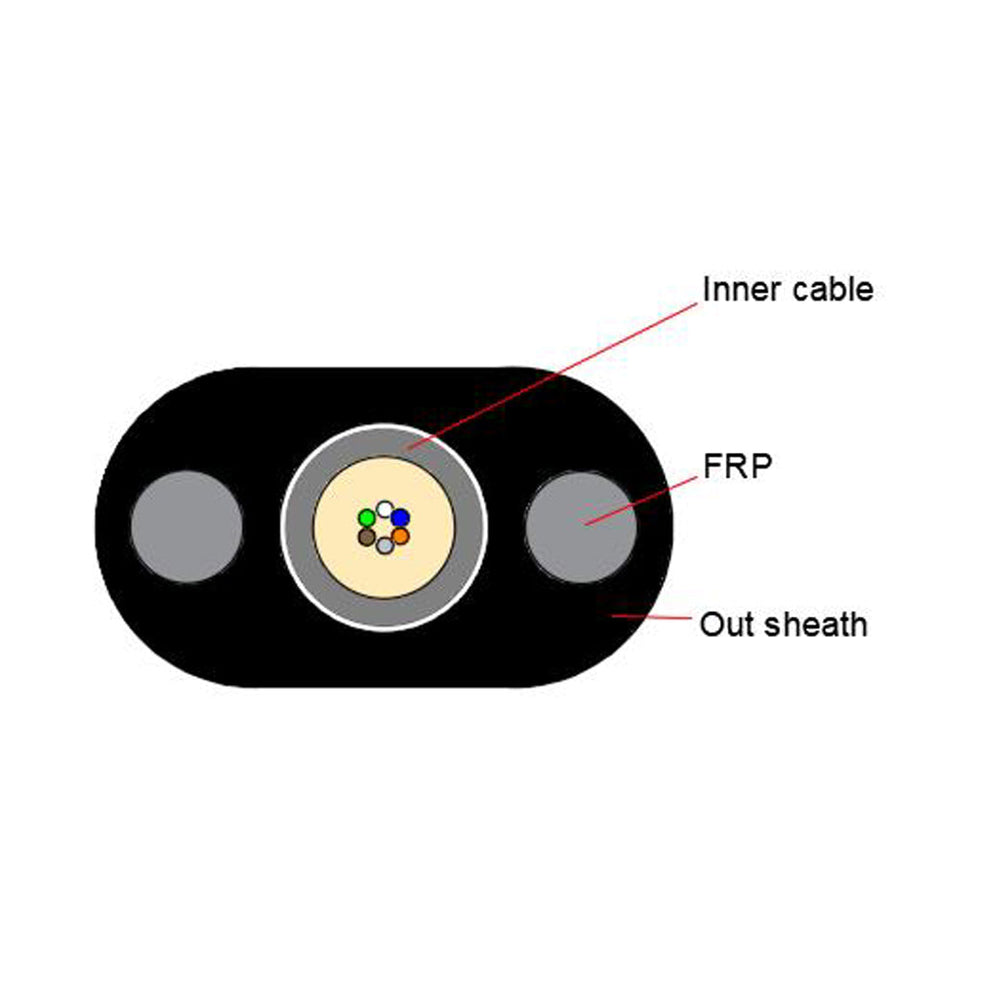

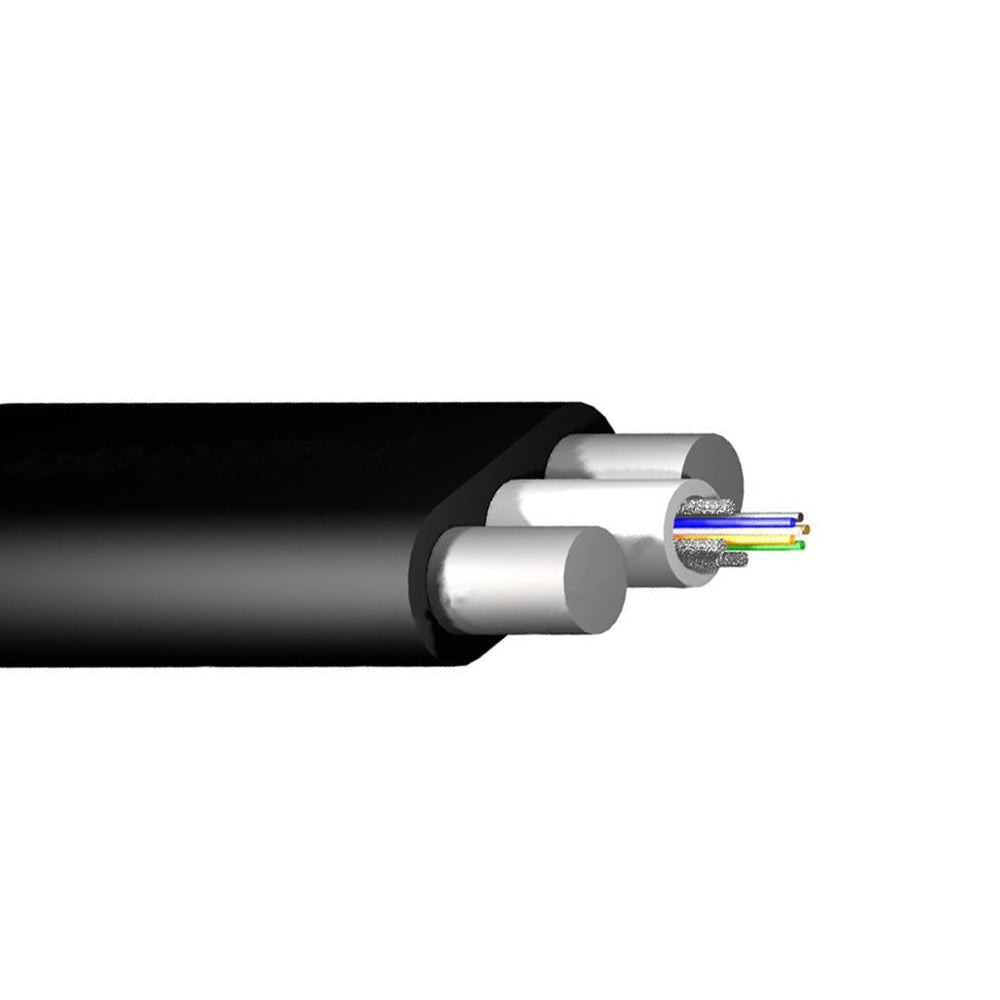

This bulk OS2 singlemode fiber cable is outside plant drop cable with a polyethylene jacket and water blocking aramid. The outer jacket encases the buffer tube along with 2 dielectric FRP strength members, perfect for all your Fiber To The Home needs.
Features
- Small, compact design allows for easy Fiber to the Home installations
- Flat Drop cable are all dielectric thus no need for bonding or grounding
- Self-supporting, aerial and direct burial applications
- Loose tube construction allows for compatibility with all standard connector types
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 Singlemode 9 Micron Outdoor Dielectric Dry Flat Drop Cable |
| Fiber Count | 1-Strand/6-Strand |
| Glass Fiber |
Corning G657A1 |
| Outer Jacket Material |
PE |
| Dielectric Strength Member |
Fiberglass Reinforced Plastic (FRP) Diameter: 1.6mm |
| Central Tube |
Low Smoke Zero Halogen (LSZH) Diameter : 2.5mm |
| Nominal Diameter |
8.0/4.5mm |
| Bend Radius |
Installation : 15D |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Crush | 3000N/100mm |
|
Performance
|
|
| Attenuation (Maximum) | 0.4dB/km @1550nm |
