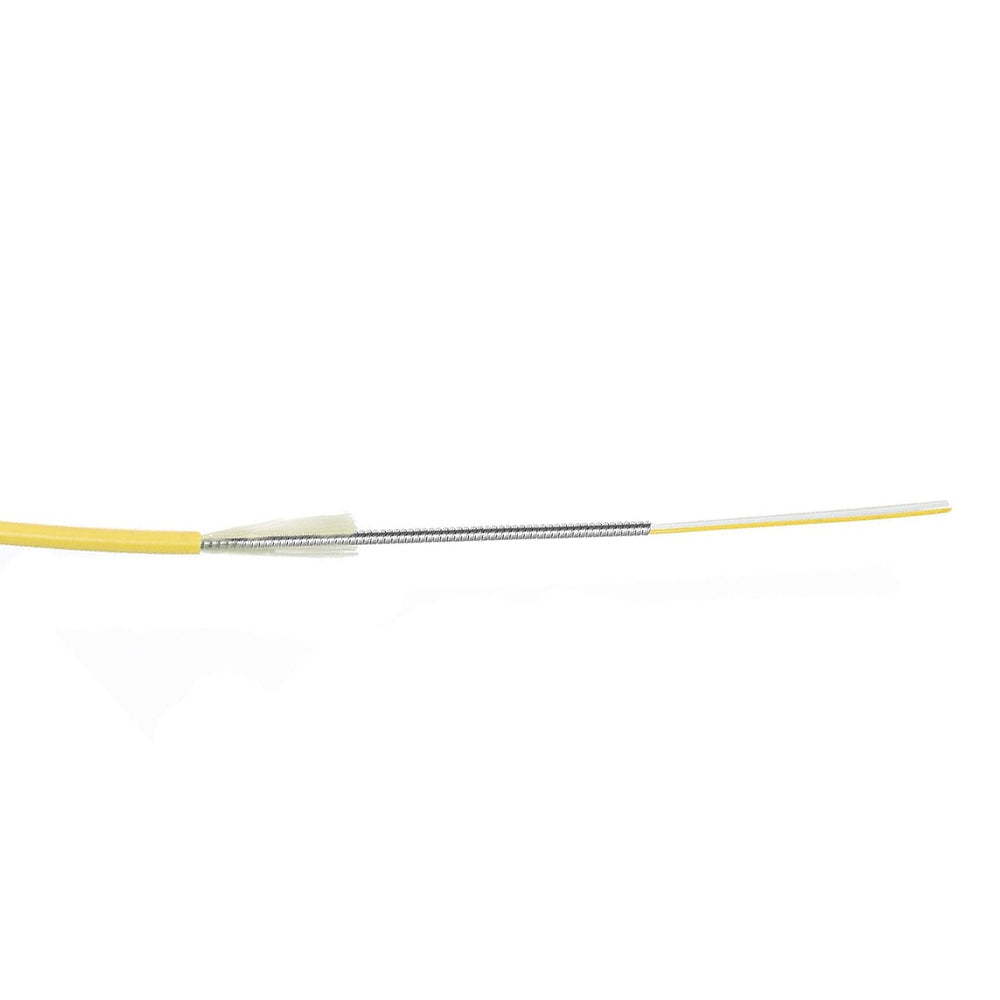

This bulk OS2 MicroArmor fiber cable has the smallest OD of any armor compared to conventional optical fiber cable in size and flexibility. the Lightest and smallest armor makes routing and installation faster and easier. It provides the strongest armor with smallest bend radius and designed for all indoor & outdoor conditions. It is also crush and rodent resistance
|
Physical Characteristics
|
|
|---|---|
| Color | Yellow |
| Fiber Optic Type | Singlemode OS2 9/125 |
| Fiber Count | 2-Strand |
| Glass Fiber | Corning ClearCurve® LBL G657A2 |

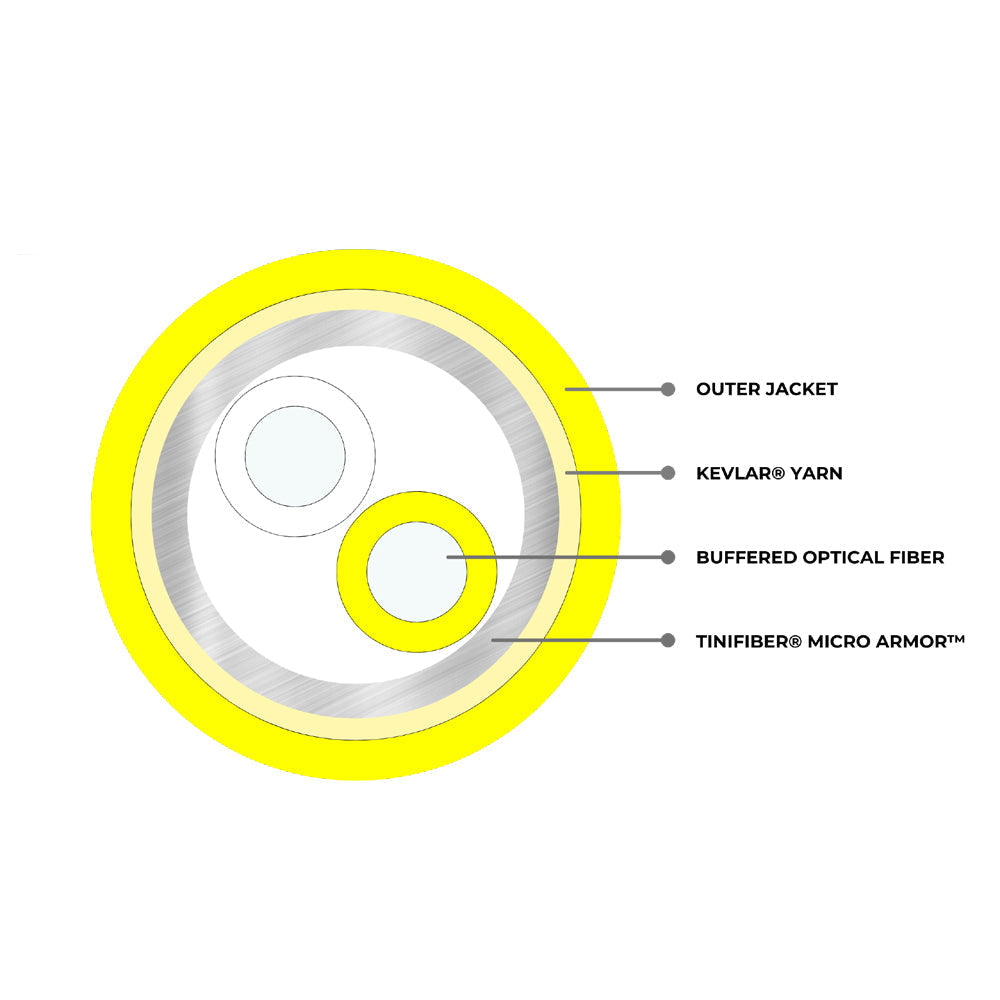

| Construction | 600 µm Tight Buffer |
| Nominal Outer Diameter | 3.0±0.1 mm |
| Maximum Tensile Strength (Dynamic | Static) | 150 N | 80 N |
| Maximum Crush Resistance (Dynamic | Static) | 30 kN/m | 5 kN/m |
| Minimum Bend Radius (Dynamic | Static) | 20D | 10D |
| Installation Temperature | -0°C ~ +60°C |
| Operation Temperature | -15°C ~ +60°C |
| Maximum Attenuation | @1300nm 0.5dB/km @1550nm 0.5dB/km |
| Fire Rating | OFCP |
| Cable Weight | 14 kg/km (~9 lbs/kft) |
|
Certification(s)
|
|
| c(UL)us | Compliant |
|
Product Support
|
|
| RoHS | Compliant |
| Country of Origin | USA |
