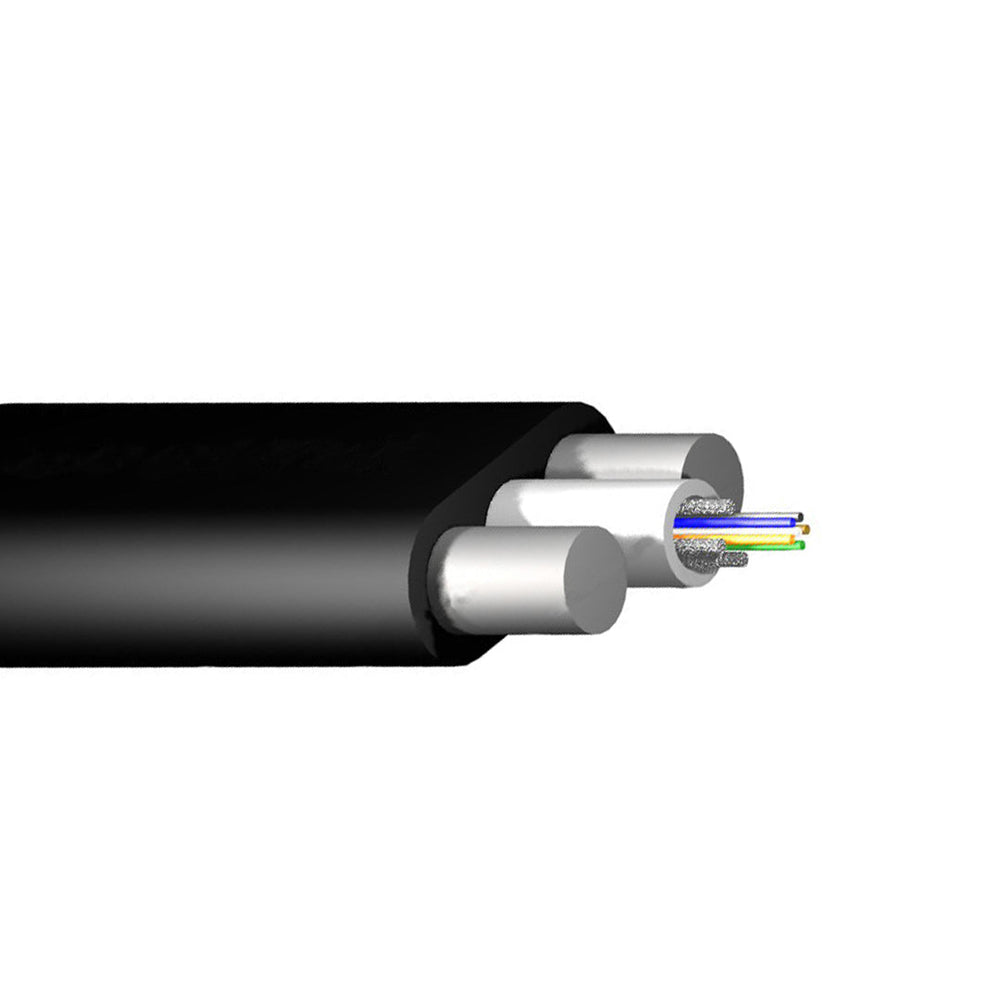

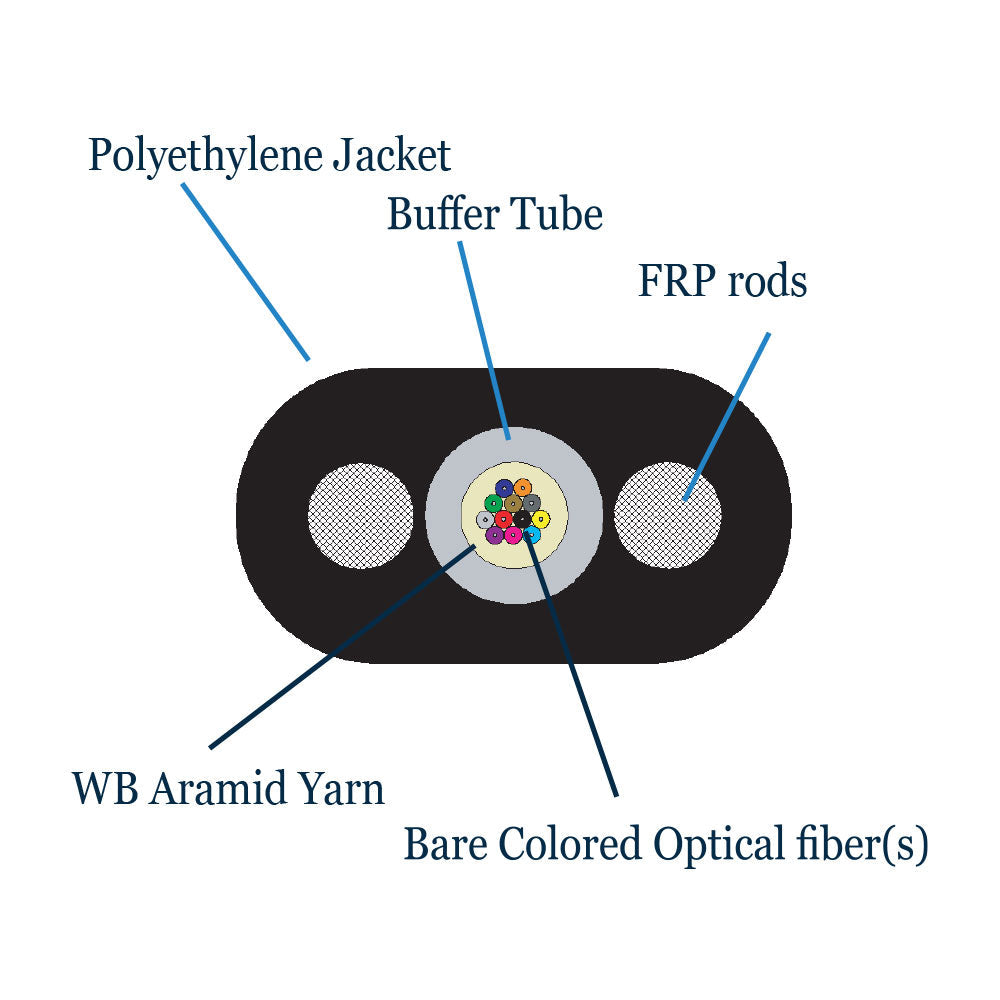

This bulk OS2 singlemode fiber cable is outside plant drop cable with a UV resistant polyethylene jacket and water blocking aramid. The outer jacket encases the buffer tube along with 2 dielectric FRP strength members, perfect for all your Fiber To The Home needs.
Features
- Small, compact design allows for easy Fiber to the Home installations
- Flat Drop cable are all dielectric thus no need for bonding or grounding
- Self-supporting, aerial and direct burial applications
- Loose tube construction allows for compatibility with all standard connector types
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Fiber Optic Type | SMF-28® Ultra |
| Fiber Count | 1-Strand/2-Strand |
| Glass Fiber |
Corning |
| Outer Jacket Material |
UV Resistant Polyethylene |
| Dielectric Strength Member | Fiberglass Reinforced Plastic (FRP) Diameter: 1.5mm x 2 |
| Central Tube | Polybutylene Terephthalate (PBT) Diameter : 2.5mm |
| Nominal Diameter | 8.0/4.5mm |
| Bend Radius | 16cm |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Pull strength (operational) | 300lbs |
| Pull strength (installation) | 1000lbs |
| Maximum unsupported span | 124ft with 1% sag in heavy load zone |
|
Performance
|
|
| Attenuation (Maximum) | 0.4dB/km @1550nm |
| Numerical Aperture | 0.14 |
| Mode-Field Diameter[1310/1550nm] | 9.2/10.4µm |
| Link Length@1550[1GB/s / 10GB/s] | 10,000mtr/5,000mtr |
|
Certification(s)
|
|
| EU | Compliant |
|
Product Support
|
|
| RoHS | Compliant |
| Country of Origin | USA |
