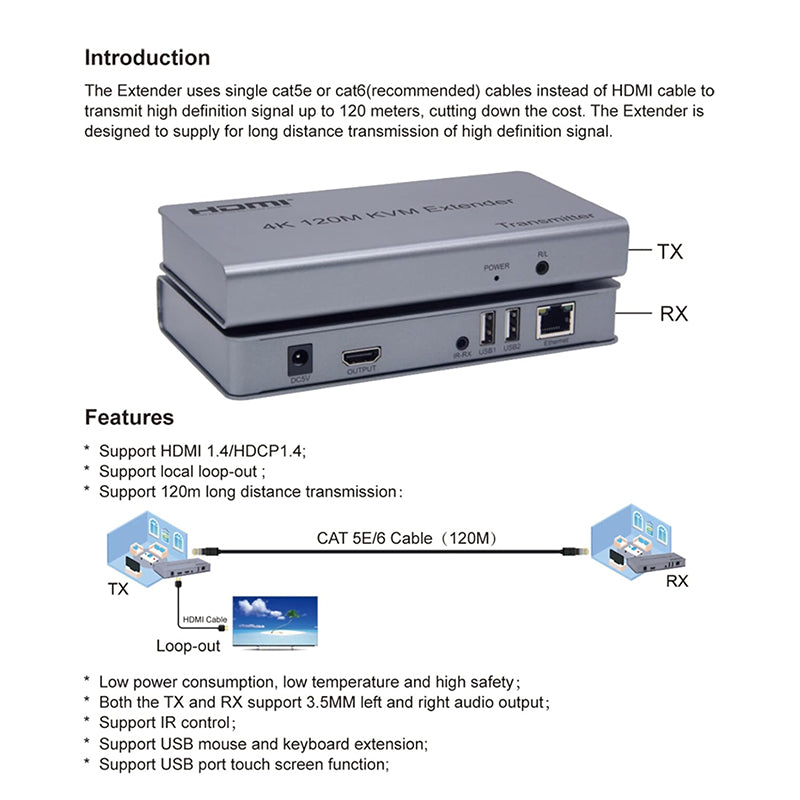

4K 120M HDMI KVM Extender by RJ45 Ethernet Cat5e/Cat6 Cable Converter Support USB Mouse Keyboard Extension TX+RX Kit

- Length of CAT5e/CAT6 cable between Rx and TX: 120 meters - HDMI Input: 4k/1080p/720p/576p/576i/480p/480i - HDMI Output: 4k/1080p/720p/576p/576i/480p/480i - Max bandwidth: 340MHz - Max baud rate: 3x3.4Gbps - Input video signal: 0.5~1.5Volts p-p - Output DDC signal: 5Volts p-p (TTL)  - Input HDMI cable distance: ≤10m AWG26 HDMI standard cable - Output HDMI cable distance: ≤10m AWG26 HDMI standard cable - TX Max working current: 350mA - RX Max working current: 200mA - Power adapter format - Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A - Operating Temperature range: (-15 to +55℃) - Operating Humidity range: 5 to 90%RH (No Condensation) - Dimension (L x W x H): 107x105x27.3 (mm) - TX Weight: 499g - RX Weight: 494g

Connecting and Operating:

1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters. 2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 10 meters.  3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 120 meters. 4.Connect 5V power supply to the TX and RX. 5.Plug the mouse and keyboard into the USB port of the receiver, and connect the USB port of the transmitter with the computer if you need the KVM control function. 6.LED indicator light TX LED indicator light: Turn it on, green light; when there is a signal input,  the yellow light flashing. RX LED indicator light: Turn it on, green light; when there is a signal input, the yellow light flashing. 7.The pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of the receiver and transmitter respectively.（Just connect when you need it）.

The Package includes: TX Extender: x1 RX Extender: x1 IR cable: 1 Pair 5V/1A DC Power adapter: x2 User Manual: x1
