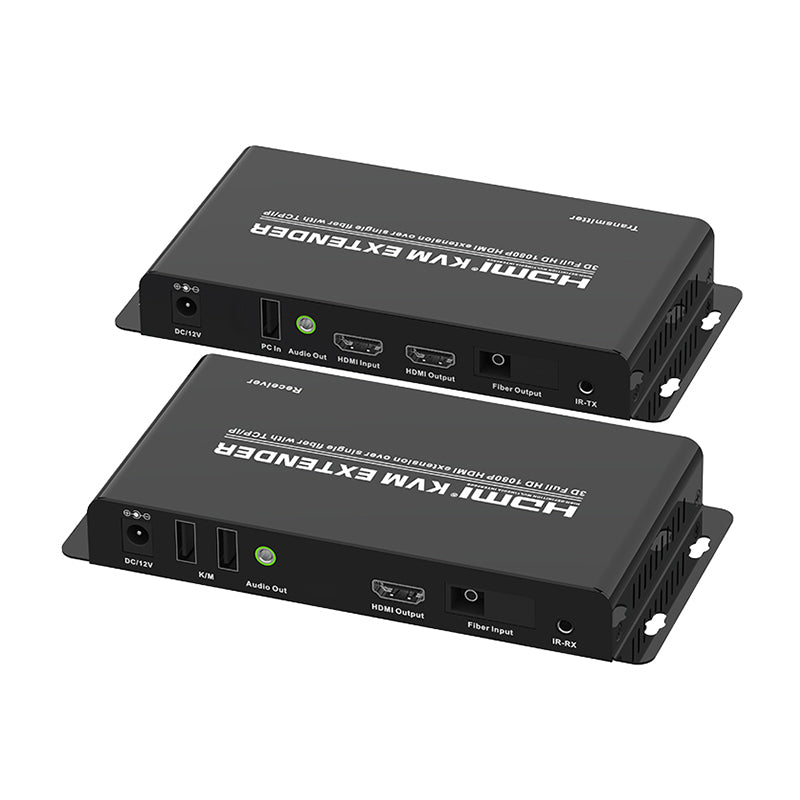

HDMI 1080P KVM Extender Over Single SC Fiber With TCP/IP up to 20KM, point to point Transmitter and Receiver Kit

FEATURES:

1.Signal transmission :SC fiber(recommended) cables up to 20000 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Support long distance controlled by keyboard and mouse.

9.Installs in minutes,No loss of quality.

SPECIFICATIONS:

HDMI Version: HDMI1.3a

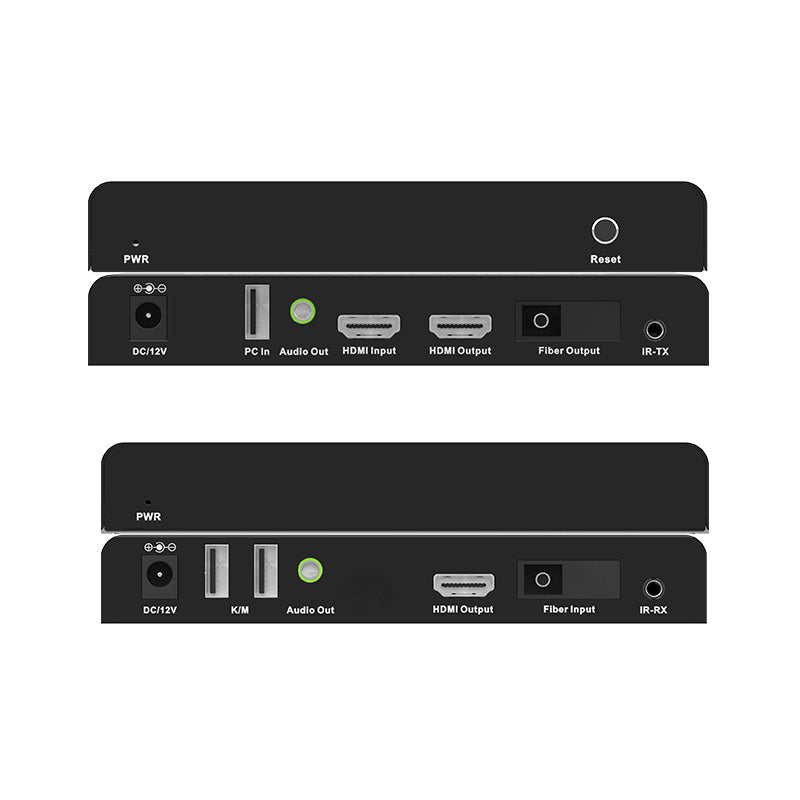

Transmitter Input Ports: HDMIx1(AF),USB(BF)x1

Transmitter Output Ports: HDMIx1(AF),SC Fiberx1,IR TXx1

Receiver Input Ports: SC Fiberx1,IR RXx1

Receiver Output Ports: HDMIx1(AF),USB(AF)x2

Frequency Bandwidth: 2.25Gbps (single link)

Input/Output Resolutions: 480p,576p,720p,1080p

Audio: Sample rate:32kHz,44.1kHz,48kHz

IR remote control: 20~60KHz;NEC

ESD Protection Human Body Model: ± 8kV (air-gap discharge)

± 4kV (contact discharge)

Operating Temperature: 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature: 20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity: 20~90% RH (non-condensing)

Dimensions (mm): 170x81.5x22

PACKAGE CONTENTS:

HDMI Extender Transmitter: 1PCS

HDMI Extender Receiver: 1PCS

IR Transmitter: 1PCS

IR Receiver: 1PCS

5V DC Power Supply adapter: 2PCS

USB Data Cable: 1PCS

Operation Manual: 1PCS
