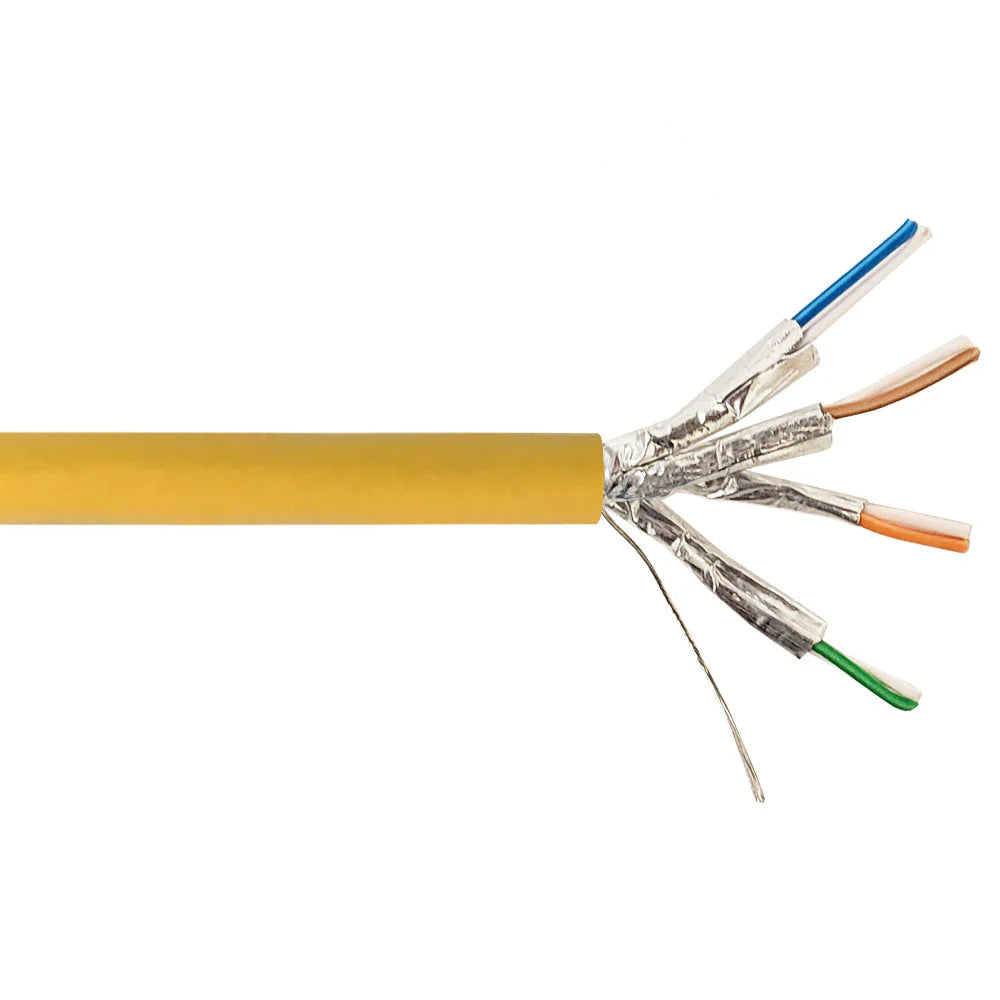

Specification
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.80 mm |
| Number of Pairs | 4 Pairs |
| Twisted Pair Diameter | 3.80 mm (±0.20 mm) |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 26AWG Stranded |
| Stranding Count & Diameter | 7x0.32 mm |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | U/FTP (Individually Foil Shielding Pairs) |
| Rip Cord |
Yes - Nylon |
| Temperature Rating | 75ºC |
| Approvals | |
| UL | Yes |
| CSA | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
29.9 lbs [13.5kg] |
