CAT6 Hi-Flex Harsh Environment 4 Pair 24AWG U/UTP Stranded Bulk Cable – PUR Jacket - BLACK
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Overview

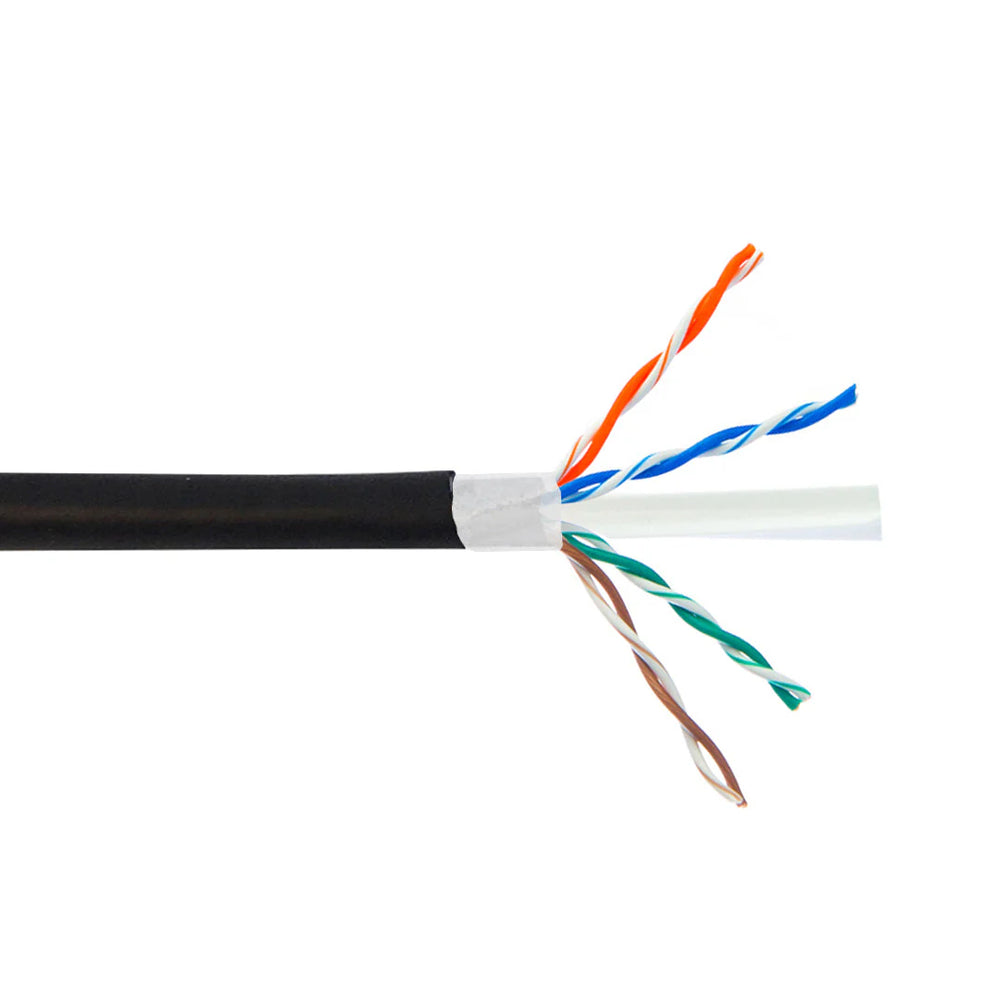

This bulk Cat6 cable consists of 4 pairs of 24AWG stranded unshielded wires with a PUR jacket. It is typically used to manufacture Cat6 patch cables which would be used in industrial, outdoor or harsh environment applications. Some usage examples would be, deployment and redeployment in Pro-AV applications, temporary outdoor event setups, staging events, permanent outdoor applications which would be exposed to the elements and industrial installs subject to chemical exposer.
Specifications
| Physical Characteristics | |
|---|---|
| Cable Lengths | 1000ft/500ft/200ft/100ft |
| Conductor Material | Stranded Bare Copper |
| Nominal Outer Diameter | 6.0 +/- 0.2mm |
| Number of Pairs | 4 Pairs |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 24AWG Stranded |
| Insulation | HDPE |
| Average Thickness | 0.16mm |
| Insulation Diameter | 1.00 ± 0.05mm |
| Cross-PE | 0.30*4.20mm(±0.05mm/±0.1mm) |
| Jacket Material | PUR |
| Jacket Average Thickness | 0.6mm |
| Jacket Outer Diameter | 6.0 ± 0.20mm |
| Minimum Bending Radius | 15xOD in Operation 10xOD after Operation |
| Operating Temperature | -40ºC ~ 80ºC |
| Installation Temperature | -20ºC ~ 60ºC |
| Rated Temperature | 75ºC |
| Electrical Characteristics | |
| Conductor Resistance@20°C | ≤112Ω/km |
| Resistance Unbalance@20°C | ≤5% |
| Input Impendence |
1-250MHz : 100+/-15Ω |
| Supported Bandwidth |
250MHz |
| Supported Ethernet Speed |
1Gbps |
| Approvals/Standard Reference | |
| CE | Compliant |
| ISO/IEC 11801:2017 | Compliant |
| ANSI/TIA-568.2-D | Compliant |
| Environmental | |
| RoHS | Compliant |
